Class B Autoclave

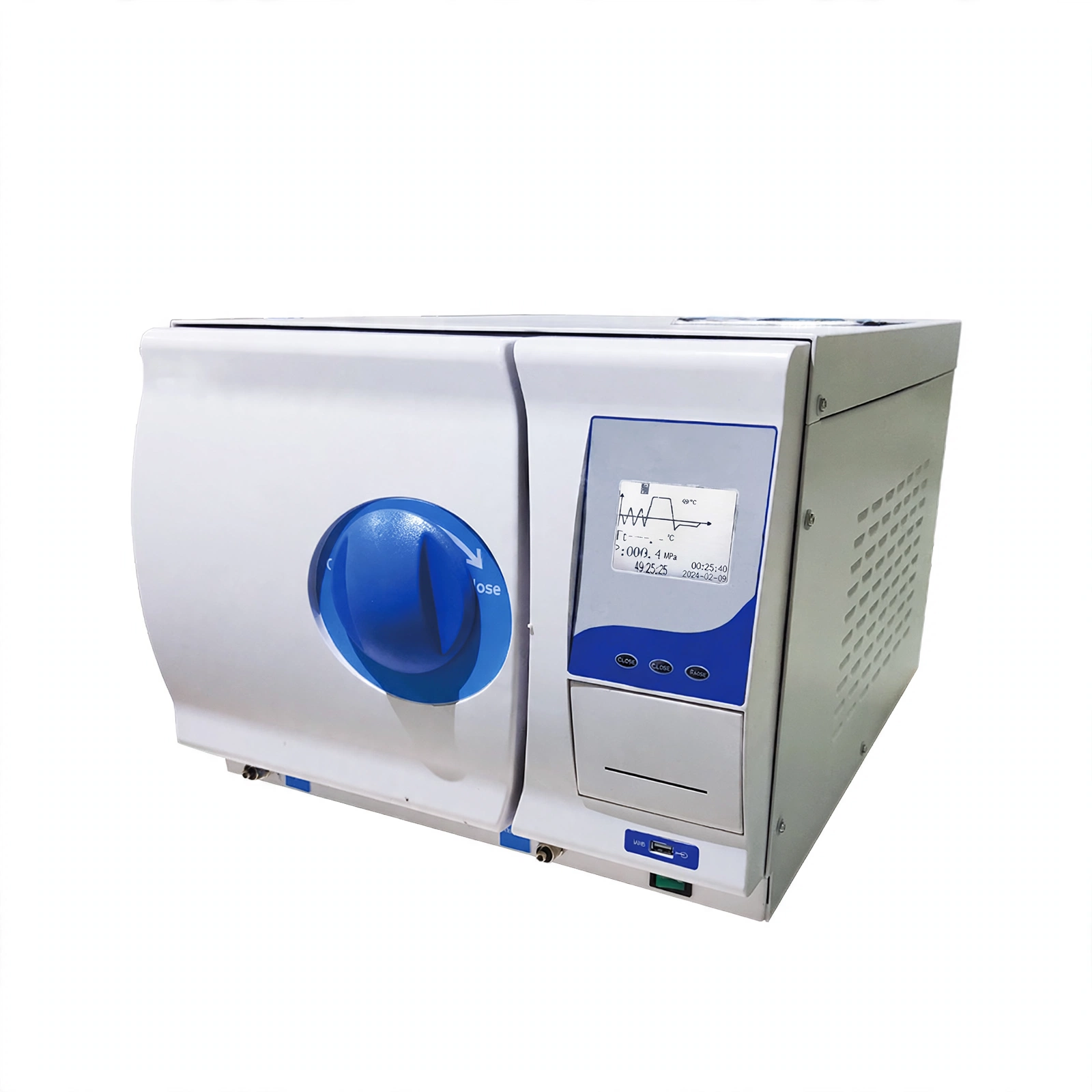

Table Top Autoclave Class B BKMZA BKMZB

Model BKMZA BKMZB Table-top

The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.

Capacity
18L / 23L
Power
1.95KW
Net weight
50kg / 55kg
Dimensions
495*650*410mm / 495*7…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Build-in open type water tank

The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.

2. High-efficiency ultimate vacuum

The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.

3. Large LCD display for BKMZA/BKMZB

The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.

4. Multiple program types

The system has various programs that include solid instruments, packaged instruments, fabric(dressing) program, and enhance program. The other three are test programs, namely HELIX test, B&D test, and vacuum test.

5. Standard USB port for BKMZA/BKMZB

Users can store the sterilization data with USB disk.

6. Optional mini printer can be attached to record the process of sterilization.

7. High-efficiency air filter: 0.22μm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.

8. Safety protection

Automatic power-off protection for over-temperature and over-pressure, anti-dry burning protection device, automatic pressure relief device for over-pressure, over-current protection device, and leakage protection device.

9. Built-in waste water tank

Technical Parameters:

Model BKMZA BKMZB
Capacity 18L 23L
Door

Manual

Display

3.5-inch LCD

Designed Pressure

-0.1/0.28MPa

Working Pressure

0.23Mpa

Max Designed Temp.

150℃

Working Temp.

121/134℃

Temp. Precision

0.1℃

Sterilization Time

0~60min

Drying Time

0~20min

Water Tank Capacity

3.5L

Vacuum System

High efficiency vacuum pump

Chamber Material

S30408

Chamber Size φ247*360mm φ247*470mm
Altitude

≤2700m

Rack

1 rack with 3 trays

Standard Accessories

Aluminum tray, USB port

Optional Accessories

Stainless steel tray, printer

Consumption

1.95KW

Power Supply

AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)

External Size(W*D*H) 495*650*410mm 495*700*410mm
Net Weight 50kg 55kg
Package Size(W*D*H) 610*810*590mm 610*810*590mm
Gross Weight 63kg 67kg

The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.

The details

Specifications

Model
BKMZA / BKMZB
Capacity
18L / 23L
Door
Manual
Display
3.5-inch LCD
Designed Pressure
-0.1/0.28MPa
Working Pressure
0.23Mpa
Max Designed Temp.
150℃
Working Temp.
121/134℃
Temp. Precision
0.1℃
Sterilization Time
0~60min
Drying Time
0~20min
Water Tank Capacity
3.5L
Vacuum System
High efficiency vacuum pump
Chamber Material
S30408
Chamber Size
φ247*360mm / φ247*470mm
Altitude
≤2700m
Rack
1 rack with 3 trays
Standard Accessories
Aluminum tray, USB port
Optional Accessories
Stainless steel tray, printer
Consumption
1.95KW
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H)
495*650*410mm / 495*700*410mm
Net Weight
50kg / 55kg
Package Size(W*D*H)
610*810*590mm
Gross Weight
63kg / 67kg
