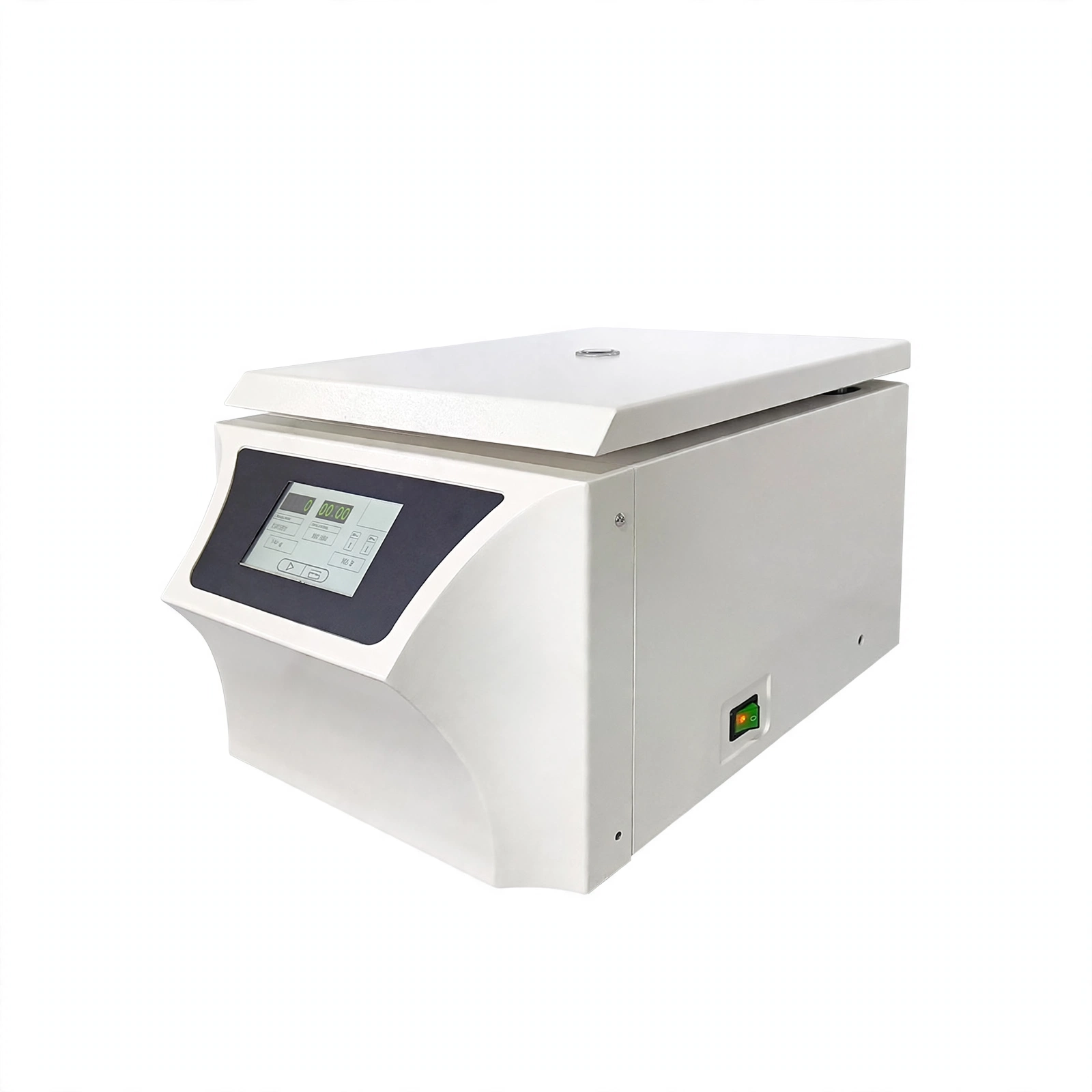

Table Top High Speed Centrifuge BKC-TH16D

A closer look

About this equipment

Features:

1. 5-inch high-definition touch screen, easily operated, visual display.

2. Automatically identify 7 kinds of different rotors, eliminate hidden danger brought by users’ maloperation.

3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect.

4. Available to store 15 series of procedure for users to adjust.

5. Alternating frequency conversion electric machine, high precision of rotary speed control.

6. Diverse protection setting: overspeed protect, door protect, imbalance protect, to ensure safety of both human and machine.

7. Free conversion between rotary speed and centrifugal force.

8. Special air duct ensures that the rotors work at normal temperature.

9. Air-tight rotor, to effectively avoid aerosol.

Technical Parameters:

Model	BKC-TH16D
Max. Speed	16500rpm
Max. RCF	21380×g
Max. Capacity	4*100ml
Motor	Ac frequency conversion motor
Speed Precision	±30rpm
Time Range	Centrifugal time:1min～99 min59sec Continuous centrifuge: Hold
Power Supply	AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
Noise	< 60dB(A)
External Size(WDH)mm	350495350
Package Size(WDH)mm	710450520
Net Weight(kg)	30
Gross Weight(kg)	48

Rotor:

No.	Rotor	Max Speed(rpm)	Max RCF(×g)	Capacity	Dimension of Tube (mm)
No.1	Angle Rotor	16500	18400	12*2.0/1.5ml	φ10*42
No.2		13000	19080	48*0.5ml	φ8*32
No.3		15000	21380	24*2.0/1.5ml	φ10×42
No.4		13000	19270	32*2.0/1.5ml	φ10*42
No.5		12000	10100	12*5ml	φ13*53
No.6		12500	16060	12*10ml	φ16*83
No.7		12000	15130	6*50ml(●)	φ29*106
No.8		12000	15130	6*50ml(▲)	φ29*116
No.9		12000	15370	8*15ml(▲)	φ17*121
No.10		10000	10620	4*100ml	φ38*119
No.11	Microplate	4000	2000	2248well	Microplate
No.11	Angle Rotor	13000	16200	680.2ml PCR	/

With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube

The details

Specifications

Model: BKC-TH16D
Max. Speed: 16500rpm
Max. RCF: 21380×g
Max. Capacity: 4*100ml
Motor: Ac frequency conversion motor
Speed Precision: ±30rpm
Time Range: Centrifugal time:1min～99 min59secContinuous centrifuge: Hold
Power Supply: AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
Noise: < 60dB(A)
External Size(W*D*H)mm: 350*495*350
Package Size(W*D*H)mm: 710*450*520
Net Weight(kg): 30
Gross Weight(kg): 48
