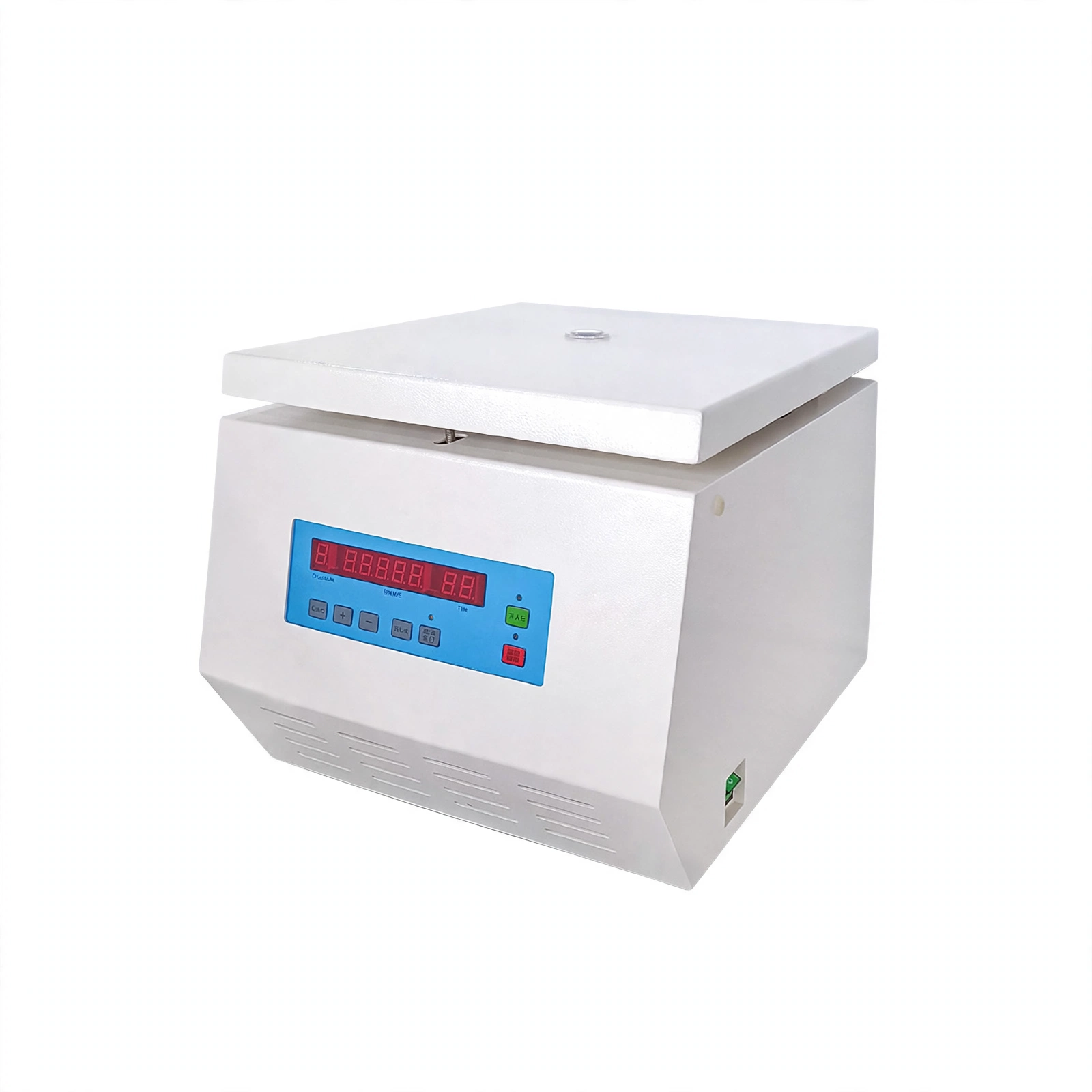

Table Top High Speed Centrifuge BKC-TH16II

A closer look

About this equipment

Features for BKC-TH161I:

1. DC Brushless motor with high start torque and frequency inversion for smooth running, maintenance free.

2. Microprocessor control, LED display, Memory flashing function, conversion of RPM/RCF.

3. External cold-rolled steel with powder coating steel, stainless steel centrifugal chamber.

4. Procedures of adjustable speed from grad 0 to 9 and 40 kinds of self-defining models.

5. Functions: Electronic lock lid, imbalance detection, over-speed protection, inching function, short-spin function.

Technical Parameters:

Model	BKC-TH16II
Max. Capacity	4*100ml
Max. Speed	16600rpm
Max. RCF	19200×g
Speed Precision	±30rpm
Timing Range	0~99min
Noise	≤58dB
Power Supply	AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
External Size(WDH) mm	450350360
Package Size(WDH) mm	760440530
Net Weight(kg)	30
Gross Weight(kg)	60

Rotor：

No.	Rotor	Max. Speed(rpm)	RCF(xg)	Capacity	Dimension of Tube (mm)
No.1	Angle Rotor	16600	19200	18*0.5ml	Φ8*32
No.2		16600	19200	12*2.0/1.5ml	Φ10*42
No.3		13000	14740	48*0.5ml	Φ8*32
No.4		13000	16060	24*2.0/1.5ml	Φ10*42
No.5		13000	11500	10*5ml	Φ14*54
No.6		12000	14800	12*10ml	Φ16*87
No.7		12000	14800	6*50ml (●)	Φ29*106
No.8		12000	14800	6*50ml (▲)	Φ29*116
No.9		10000	10290	12*15ml (▲)	Φ16*102
No.10		10000	11200	4*100ml	Φ38*119
No.11	Micro Plate	4000	2300	2248 well	Microplate

With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube

The details

Specifications

Model: BKC-TH16II
Max. Capacity: 4*100ml
Max. Speed: 16600rpm
Max. RCF: 19200×g
Speed Precision: ±30rpm
Timing Range: 0~99min
Noise: ≤58dB
Power Supply: AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional)
External Size(W*D*H) mm: 450*350*360
Package Size(W*D*H) mm: 760*440*530
Net Weight(kg): 30
Gross Weight(kg): 60

How ordering works

From enquiry to delivery

01Send your enquiry
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
02Confirm the details
We confirm configuration, voltage, accessories, availability and a delivered price.
03We source and ship
We handle procurement, packing and international shipping to your facility.

You may also consider

Similar equipment

Browse the catalog

High Speed Centrifuge 2

Centrifuge

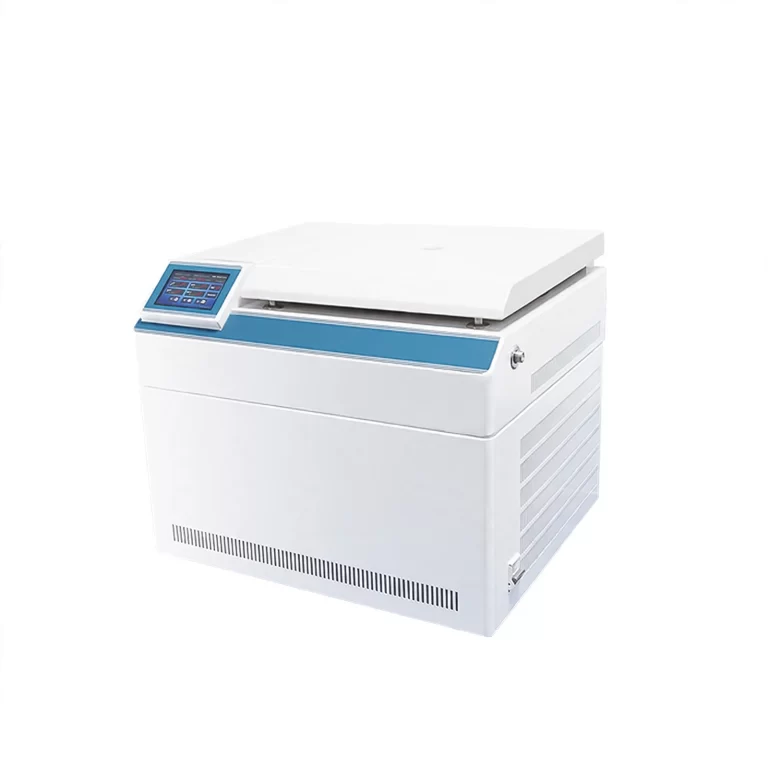

High Speed Refrigerated Centrifuge BKC-TH23RII BKC-TH24R BKC-TH24RII
