Other Specific Function Centrifuge

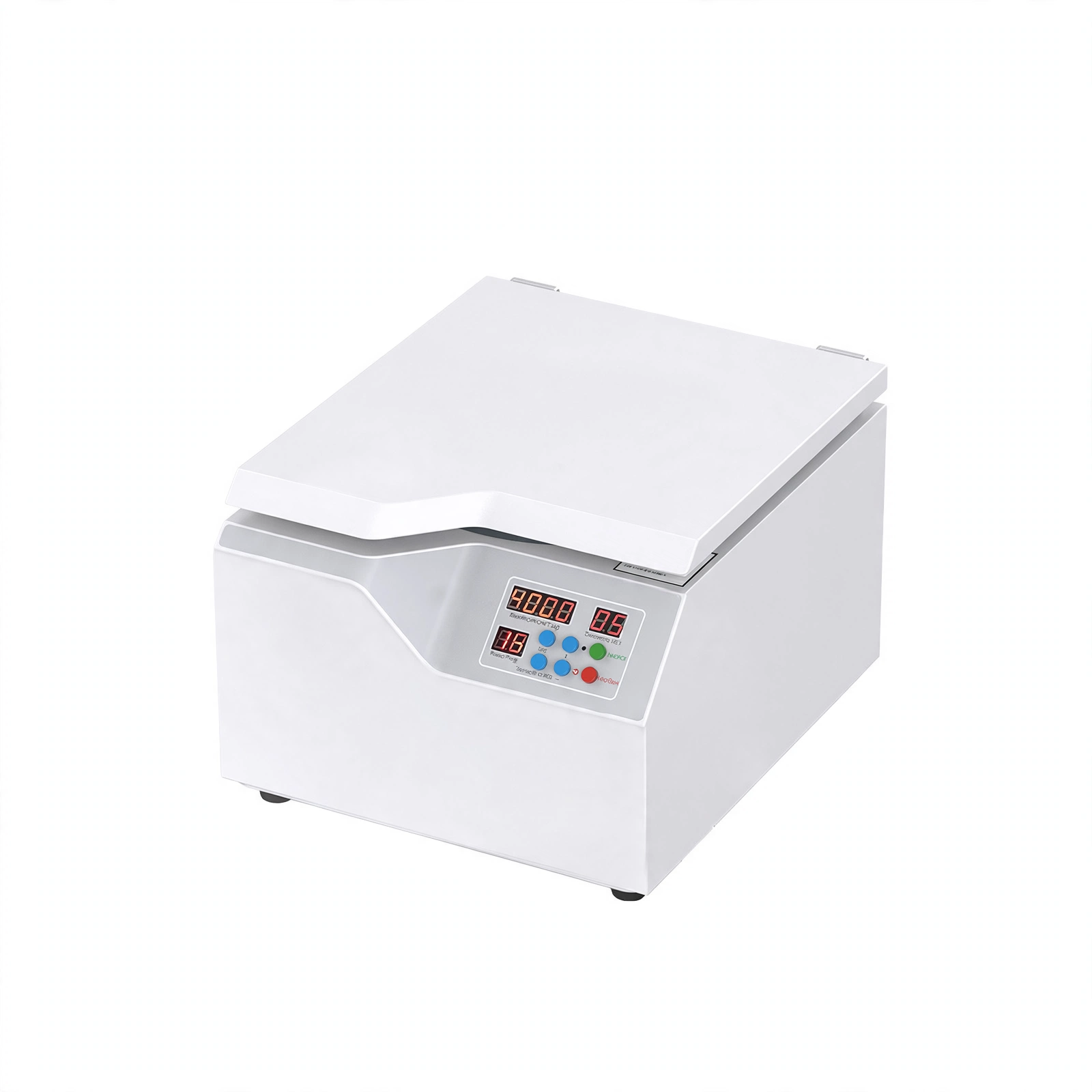

Table Top Low Speed Centrifuge(CGF)

Model BKC-TL4V Table-top Low speed Blood & clinical

CGF Dental Centrifuge with multiple functions, can respectively prepare CGF, A-PRF, PGRF, i-PRF. The operation is simple, take venous blood into the centrifuge, then press the corresponding button to call the program group for automatically completing. It is a special centrifuge developed for dental implant, bone defect, beauty anti-aging and other fields.

Max. speed
4,000 rpm
Max. RCF
2,250 ×g
Capacity
12*20ml
Noise
≤60dB
Net weight
20kg
Dimensions
340*430*278mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Designed for oral clinical and cosmetic fields, it has good vibration reduction effect due to the use of special vibration dampers.

2. 4 centrifugal programs are preset, and users can call them with one key and store multiple user-defined programs, which is convenient for calling common programs and starting the machine with the last program.

3. Food-grade silicone integral sealing ring to prevent aerosol spillage and ensure the safety of staff.

4. Alarm detection function, real-time detection of door locks and motor status, safe and reliable operation.

5. Microcomputer control, DC brushless motor drive, large torque, fast lifting speed, no carbon powder pollution, maintenance-free.

6. Simple shape, with the advantages of small size, low noise, small temperature rise, high efficiency, safety and reliability.

Technical Parameters:

Model BKC-TL4V
Max. Speed 4000rpm
Max. RCF 2250×g
Max. Volume 12*20ml
Timing Range 1s~99min
Speed Accuracy ±10r/min
Noise ≤60dB
Power Supply AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(L*W*H) 340*430*278mm
Packing Size(L*W*H) 476*566*436mm
Net Weight 20kg
Gross Weight 24kg

Rotor:

Rotor NO. Capacity Max. Speed(rpm) Max. RCF(×g) Adapter
4M0016 12*5/7ml

4000

 1681

2/3/4ml vacuum blood tube
4M0017 30*5/7ml 2039
4M0018 6*10ml 1880

1.5/2ml, 2/3/4ml vacuum blood tube
4M0006 24*10ml 1880
4M0005 8*15ml 1700

10ml, 5ml, 1.5/2ml
4M0004 12*15ml 2147
4M0019 8*20ml 1840

15ml, 10ml, 5ml, 1.5/2ml
4M0003 12 *20ml 2250

Program Selection:

Speed Shift Program Group

A
Speed Shift Program CGF-S1 CGF-S1 CGF-S1 CGF-S1
Speed(rpm) 2600 2300 2600 2850
Centrifuge Time(min) 2 4 4 3
Fixed Speed Program Group b C

d
Fixed Speed Program A-PRF-S2 i-PRF-S3

PGRF-S4
Speed(rpm) 2450 2850

3100
Centrifuge Time(min) 4 4

3
The details

Specifications

Model
BKC-TL4V
Max. Speed
4000rpm
Max. RCF
2250×g
Max. Volume
12*20ml
Timing Range
1s~99min
Speed Accuracy
±10r/min
Noise
≤60dB
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(L*W*H)
340*430*278mm
Packing Size(L*W*H)
476*566*436mm
Net Weight
20kg
Gross Weight
24kg
