Ultrasonic Cleaner

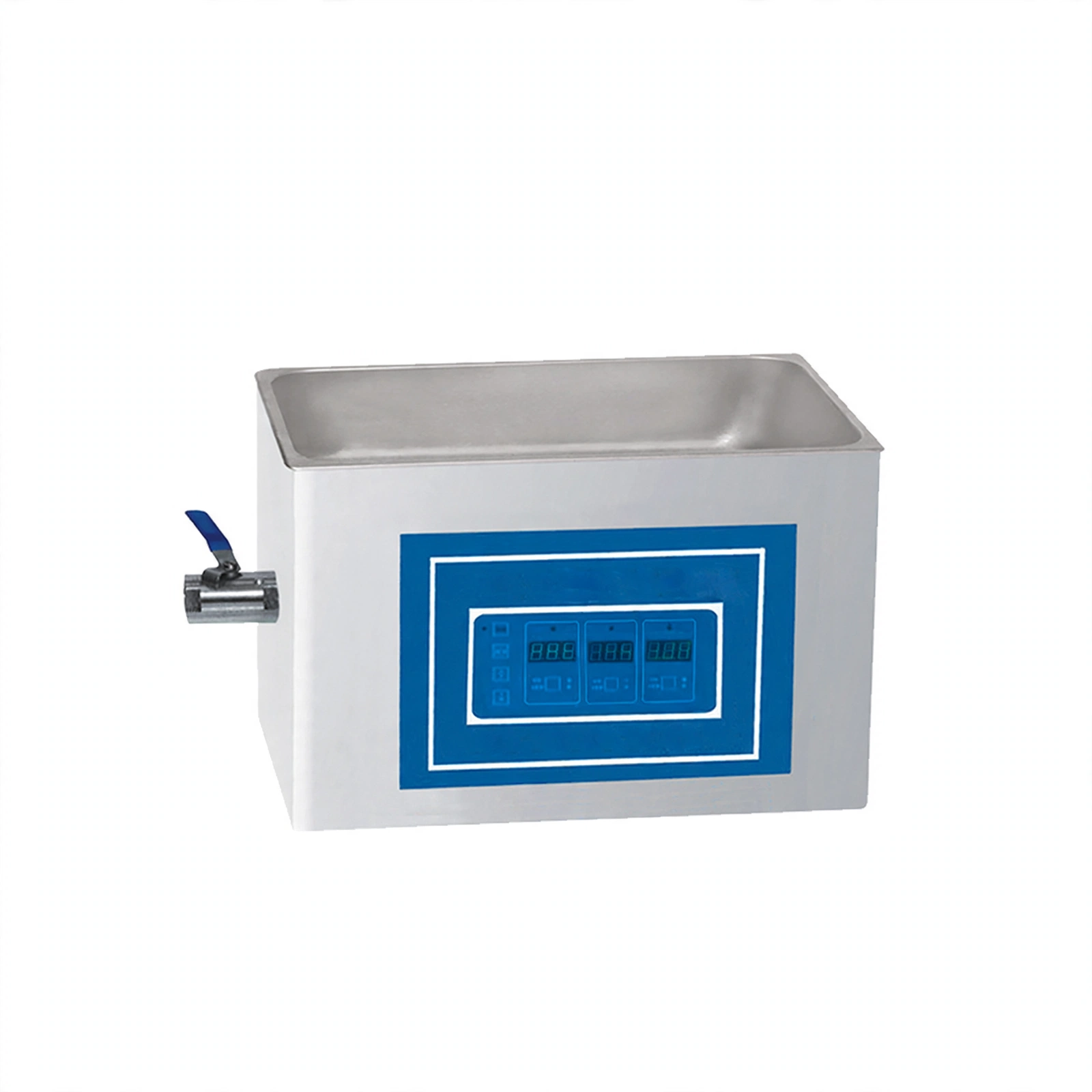

Ultrasonic Cleaner Single Frequency Type

Model UC-08A UC-10A UC-20A UC-50A UC-70A UC-10S UC-20S UC-20SII UC-30S UC-30SII UC-50S UC-60S UC-70S

Ultrasonic cleaning is a process that uses ultrasonic and an appropriate cleaning solvent to clean items.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1.  Standard: 1pc of basket, 1pc of lid.

2. Time and temperature real-time display.

3. Fully microprocessor controller and programmable.

4. Digital display, easy operation for time and temperature.

5. Low-level water protection(UC-20S, UC-20SII, UC-30S, UC-30SII, UC-50S, UC-60S, UC-70S).

6. Power Supply:For A Series: Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz.

                                  For S Series: Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer).

Technical Parameters:

Model Capacity(L) Ultrasonic Frequency Time Range/Heating Temp Ultrasonic Power(W) Heating Power(W) Tank Size

W*D*H(mm)

 Packing Size

 W*D*H(mm)

 Gross Weight(kg)
UC-08A 1.3

40KHz

1~99min/20~80°C

 60 200 150*140*65 260*260*260 2.5
UC-10A 2 60 200 150*140*100 260*260*290 3
UC-20A 3 120 200 240*135*100 350*260*330 4
UC-50A 14 300 400 300*240*200 430*370*430 9
UC-70A 19 420 600 330*300*200 460*430*430 11
UC-10S 4

80KHz

1~480min/RT~80°C

 100 400 300*150*100 445*250*400 8.5
UC-20S 6 200 400 300*150*150 435*240*430 8.8
UC-20SII 8 200 400 300*150*180 505*355*495 13
UC-30S 10 300 400 300*240*150 446*346*463 12.1
UC-30SII 13

1~480min/0~80°C

 300 400 300*240*180 840*670*730 75
UC-50S 27 500 800 500*300*180 1100*690*820 99
UC-60S 27 600 800 500*300*180 1100*690*820 101
UC-70S 27 700 800 500*300*180 1100*690*820 101
The details

Specifications

Model
Capacity(L) / Ultrasonic Frequency / Time Range/Heating Temp / Ultrasonic Power(W) / Heating Power(W) / Tank Size W*D*H(mm) / Packing Size W*D*H(mm) / Gross Weight(kg)
UC-08A
1.3 / 40KHz / 1~99min/20~80°C / 60 / 200 / 150*140*65 / 260*260*260 / 2.5
UC-10A
2 / 40KHz / 1~99min/20~80°C / 60 / 200 / 150*140*100 / 260*260*290 / 3
UC-20A
3 / 40KHz / 1~99min/20~80°C / 120 / 200 / 240*135*100 / 350*260*330 / 4
UC-50A
14 / 40KHz / 1~99min/20~80°C / 300 / 400 / 300*240*200 / 430*370*430 / 9
UC-70A
19 / 40KHz / 1~99min/20~80°C / 420 / 600 / 330*300*200 / 460*430*430 / 11
UC-10S
4 / 80KHz / 1~480min/RT~80°C / 100 / 400 / 300*150*100 / 445*250*400 / 8.5
UC-20S
6 / 80KHz / 1~480min/RT~80°C / 200 / 400 / 300*150*150 / 435*240*430 / 8.8
UC-20SII
8 / 80KHz / 1~480min/RT~80°C / 200 / 400 / 300*150*180 / 505*355*495 / 13
UC-30S
10 / 80KHz / 1~480min/RT~80°C / 300 / 400 / 300*240*150 / 446*346*463 / 12.1
UC-30SII
13 / 80KHz / 1~480min/0~80°C / 300 / 400 / 300*240*180 / 840*670*730 / 75
UC-50S
27 / 80KHz / 1~480min/0~80°C / 500 / 800 / 500*300*180 / 1100*690*820 / 99
UC-60S
27 / 80KHz / 1~480min/0~80°C / 600 / 800 / 500*300*180 / 1100*690*820 / 101
UC-70S
27 / 80KHz / 1~480min/0~80°C / 700 / 800 / 500*300*180 / 1100*690*820 / 101
