Disinfection And Sterilization Equipment

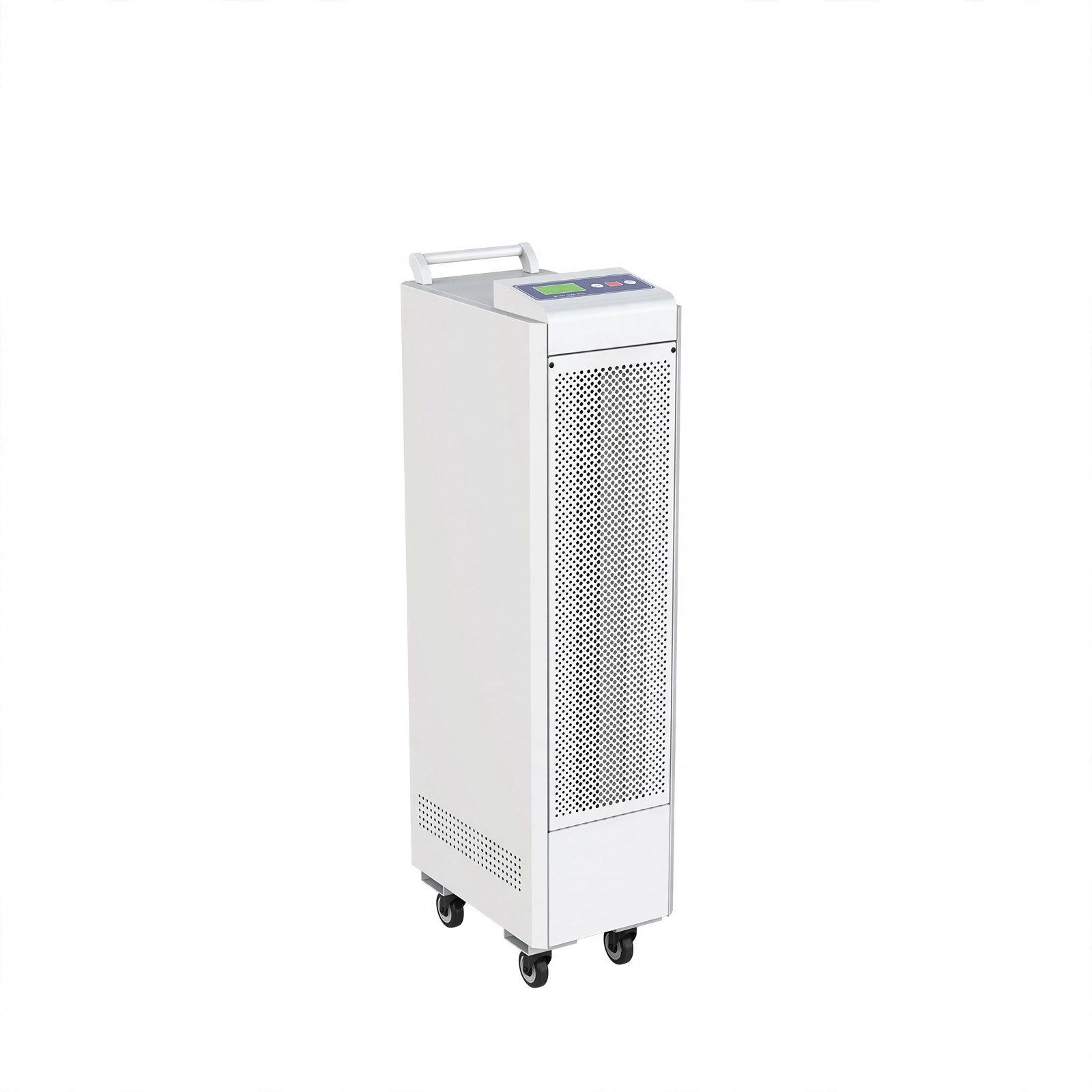

UV Air Sterilizer ZY-Y-800

Model ZY-Y-800

Due to its strong sterilization and purification capacity, UV air sterilizer is suitable for production workshops, public places, schools, childcare institutions and other places with health requirements. It can be used for indoor dynamic air disinfection under the condition of people, and can also be used under unmanned conditions.

Power
230W
Net weight
28kg
Dimensions
230*400*1040mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* Man-machine coexistence, excellent purification and disinfection capacity.

* Quadruple sterilization disinfection technology, the sterilizing rate can reach 99.9%.

* Primary filter, solid adsorption and removal of small particles in the air.

* Activated carbon filter, adsorption of odor, formaldehyde, TVOC and other harmful gases.

* UV lamp, kill Staphylococcus albus, natural bacteria in the air.

* Photocatalyst filter. Under ultraviolet irradiation, it can effectively degrade poisonous and harmful gas and kill a variety of bacteria.

* Negative ion generator (optional) releases high concentration of negative ions, making the air more fresh.

Technical Parameters:

Model ZY-Y-800
UV Wavelength 253.7nm
UV Intensity Mean value 222.4μW/cm2；Range of 203.9~236.3μW/cm2
UV Lamp 3 pcs, 55W, Single-ended H-type UV lamp, lifetime ≥1000h
UV Leakage ＜0.1μW/cm2
Ozone Leakage ＜0.003μW/cm2
Air Flow 800m³/h
Working Time 120min
Power Supply AC220V±22V, 50Hz±1Hz
Power 230W
External Size(W*D*H) 230*400*1040mm
Package Size(W*D*H) 295*440*1120mm
Net Weight 28kg
Gross Weight 30kg
The details

Specifications

Model
ZY-Y-800
UV Wavelength
253.7nm
UV Intensity
Mean value 222.4μW/cm2；Range of 203.9~236.3μW/cm2
UV Lamp
3 pcs, 55W, Single-ended H-type UV lamp, lifetime ≥1000h
UV Leakage
Ozone Leakage
Air Flow
800m³/h
Working Time
120min
Power Supply
AC220V±22V, 50Hz±1Hz
Power
230W
External Size(W*D*H)
230*400*1040mm
Package Size(W*D*H)
295*440*1120mm
Net Weight
28kg
Gross Weight
30kg
