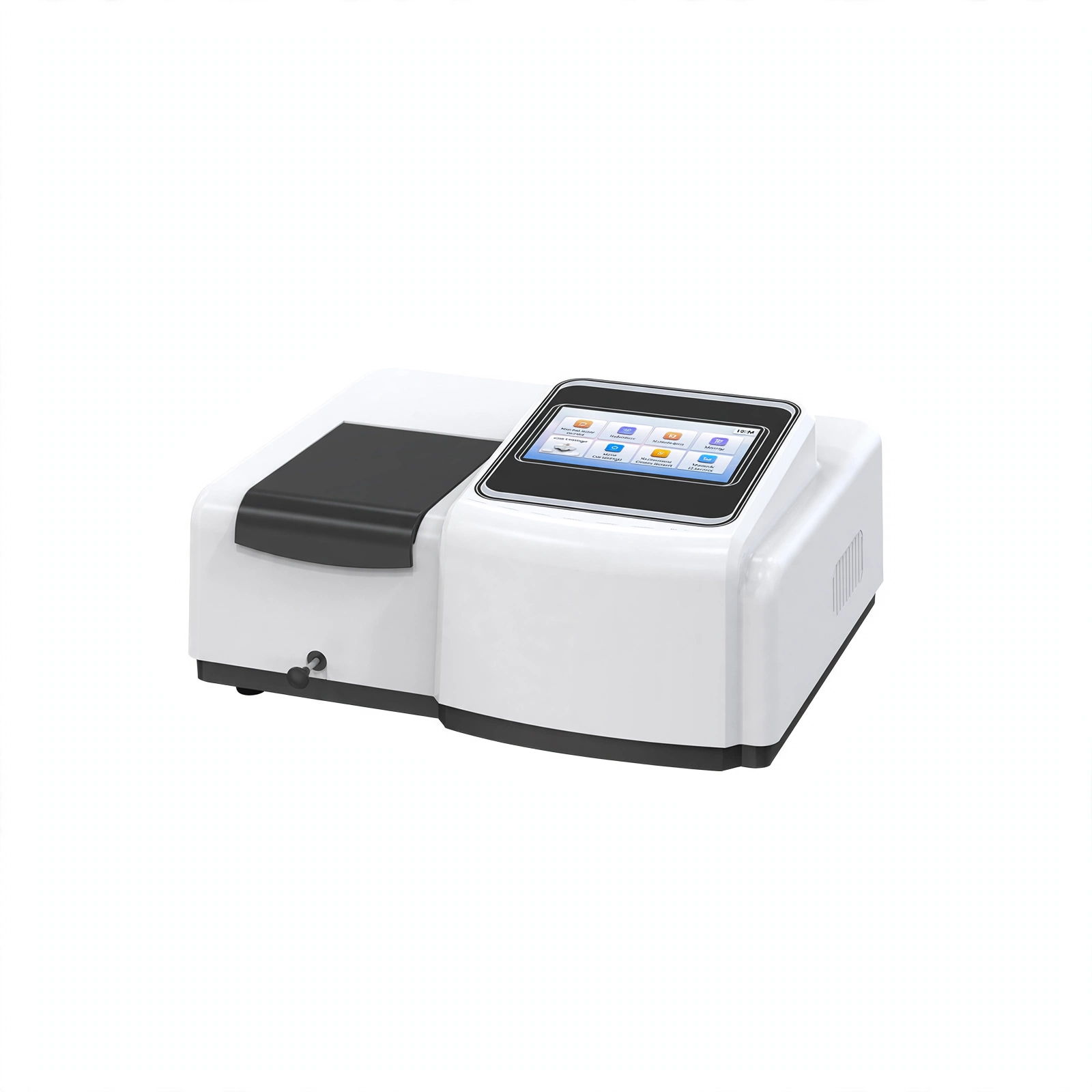

It is based on the absorption spectrum of substances to study the composition of substances, structure and interaction between substances, with a wide wavelength range, high sensitivity, simple operation, simple structure, beautiful appearance and other advantages, can be widely used in chemical, biochemistry, metallurgy, light industry, textile, materials, environmental protection, medical laboratory and education and other industries. It is one of the important quality control instruments in the analytical test industry, and is a necessary instrument in conventional laboratories.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Adjustable scanning speed: high, medium, or low.
2. System upgrade capability, customers provide the instrument number for one-click USB upgrade(Lifetime free upgrades).
3. Large storage capacity, capable of storing 57,600 sets of data.
4. Test data can be exported via USB.
5. Optional printer for real-time printing of measurement results.
Technical Parameters:
| Model | BK-V1000G | BK-V1600G | BK-UV1000G | BK-UV1600G | BK-UV1800G |
| Display | Matrix LCD | LCD touch screen | Matrix LCD |
LCD touch screen |
|
| Optical System |
Single beam, grating 1200L/mm |
||||
| Wavelength | 325~1020nm | 325~1100nm | 200~1020nm |
190~1100nm |
|
| Spectral Bandwidth |
4.0nm |
2.0nm | |||
| Wavelength Accuracy |
±1.5nm |
±0.5nm | |||
| Wavelength Repeatability |
≤0.2nm |
||||
| Photometric Accuracy |
±0.002A(0~0.5A), ±0.004A(0.5~1.0A), ±0.4%T(0~100%T) |
±0.002A(0~0.5A), ±0.004A(0.5~1.0A), ±0.3%T(0~100%T) | |||
| Photometric Repeatability |
0.001A(0~0.5A), 0.002A(0.5~1.0A), ≤0.2%T(0~100%T) |
0.001A(0~0.5A), 0.002A(0.5~1.0A), ≤0.15%T(0~100%T) | |||
| Stray Light |
≤0.1%T(360nm) |
≤0.1%T(220nm, 360nm) |
≤0.05%T(220nm, 360nm) | ||
| Stability |
±0.001A/h(500nm) |
||||
| Photometric Range |
-0.301~3.0A; 0~200%T; 0~9999C |
||||
| Photometric Mode | A, T, C, F |
A, T, C, E |
|||
| Wavelength Setting |
Automatic |
||||
| Output | RS232, USB | RS232, USB, WiFi, bluetooth printer(Optional) | RS232, USB |
RS232, USB, WiFi, bluetooth printer(Optional) |
|
| Detector |
Imported silicon photodiode |
||||
| Light Source |
Tungsten lamp |
Deuterium lamp, tungsten lamp |
|||
| Standard Accessory | 10mm glass cuvette*4 | 10mm glass cuvette*4, PC software | 10mm glass cuvette*4, 10mm quartz cuvette*2 |
10mm glass cuvette*4, 10mm quartz cuvette*2, PC software |
|
| Optional Accessory | Thermal printer | Bluetooth printer | Thermal printer |
Bluetooth printer |
|
| Power Supply |
AC100~220V, 50/60Hz |
||||
| External Size(W*D*H) |
466*365*200mm |
466*365*220mm |
|||
| Package Size(W*D*H) |
590*450*310mm |
||||
| Net Weight | 10.1kg | 11.1kg | 10.55kg | 11.55kg | 12kg |
| Gross Weight | 13.8kg | 14.8kg | 14.75kg | 15.75kg | 16.2kg |
