Vacuum Drying Oven

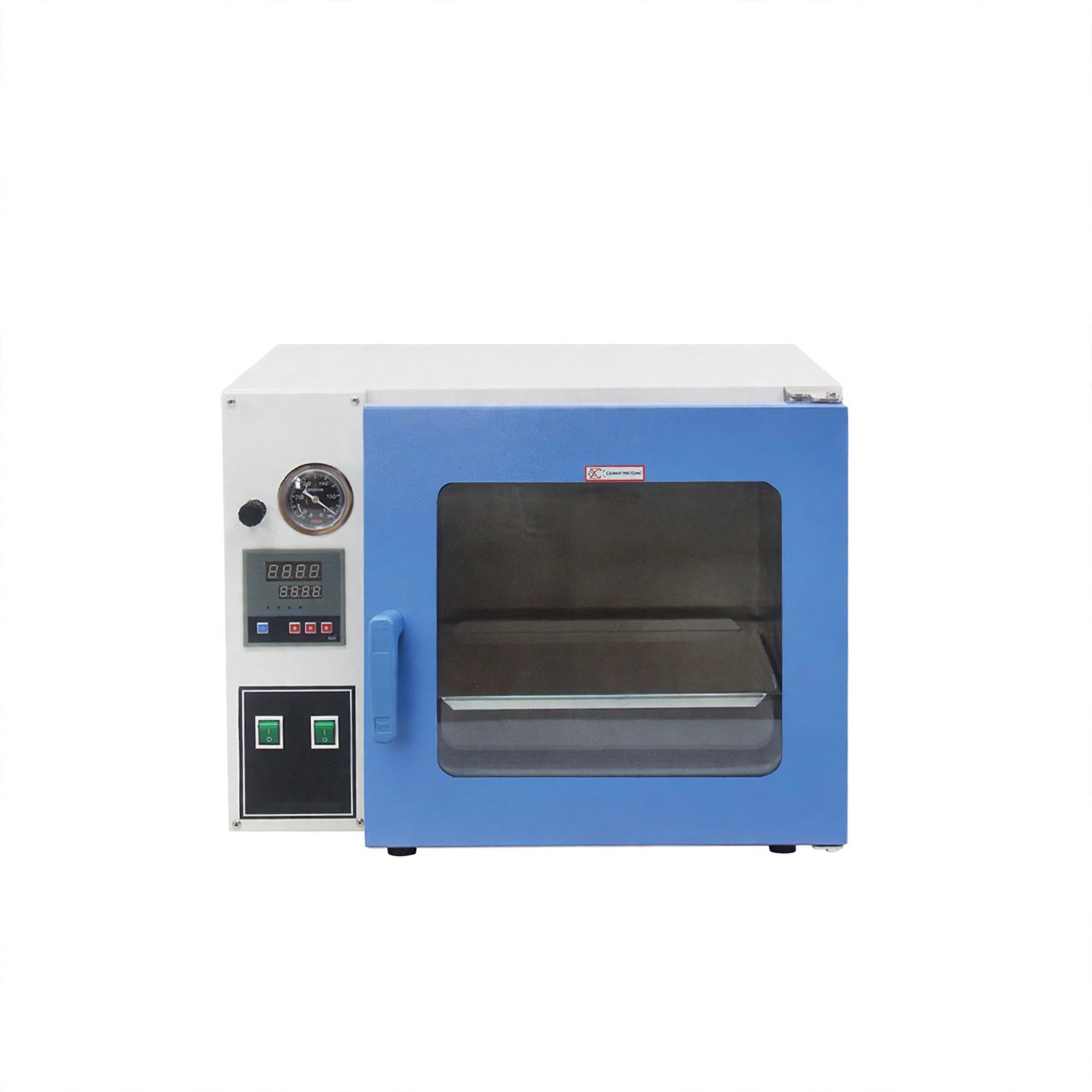

Vacuum Drying Oven(BOV-V/VL)

Model BOV-30V BOV-50V BOV-90V BOV-215V BOV-90VL BOV-215VL Refrigerated

Vacuum drying oven is a kind of laboratory equipment for drying and heating treatment under vacuum environment, specially designed for drying heat-sensitive, easy to decompose and easy to oxidize substances, when working, it can keep a certain degree of vacuum in the working chamber, especially some items with complex composition can also be dried quickly.

Capacity
23L / 53L / 91L / 213…
Temperature
RT+10~200℃ / RT+10~25…
Power
500W / 1400W / 1600W…
Net weight
55kg / 67kg / 145kg /…
Dimensions
590*492*468mm / 710*5…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Outer material : cold rolled steel plate with spraying surface; inner material : SUS stainless steel plate.

2. PID microprocessor temperature control with LED display.

3. Integral molded silicone rubber door seal ring for good air tightness.

4. Toughened bulletproof double glazed doors.

5. With parameter memory function, automatically resume operation when power restoration.

6. The heater is located in the chamber on the shelf, and separate temperature control, with a short heating time, the same level of temperature uniformity is good.(Except BOV-30L/50L)

Technical Parameters:

Model BOV-30V BOV-50V

BOV-90V

 BOV-215V BOV-90VL BOV-215VL
Capacity 23L 53L

91L

 213L 91L 213L
Temp. Range RT+10~200℃ RT+10~250℃

RT+10~200℃
Temp. Fluctuation

±1℃
Vacuum Degree

＜133Pa
Vacuum Display

Pointer-type vacuum pressure gauge

Pointer-type differential pressure vacuum gauge with rotatable vacuum value

LED digital display, push button input of the vacuum value
Vacuum Control

Manual control

Automatic differential pressure control

Pressure sensor+deviation control
Timing Range

0~9999min
Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer)
Consumption 500W 1400W

1600W

 2200W 1600W 2200W
Shelf Aluminum shelf*1 Aluminum shelf*2

Fixed electric heating aluminum plate*2

 Fixed electric heating aluminum plate*3 Fixed electric heating aluminum plate*2 Fixed electric heating aluminum plate*3
Standard Accessories

Shelves

Shelves, vacuum pump, vacuum tube
Optional Accessories

Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter

External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);

External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series)
Internal Size(W*D*H) 296*300*270mm 416*370*346mm

450*450*450mm

 556*600*640mm 450*450*450mm 556*600*640mm
External Size(W*D*H) 590*492*468mm 710*562*544mm

611*641*1398mm

 721*794*1638mm 611*641*1398mm 721*794*1638mm

Package Size(W*D*H)

 670*610*600mm 790*660*670mm

710*710*1550mm

940*810*1800mm

710*710*1550mm

940*810*1800mm

2XZ-2: 580*215*367mm
Net Weight 55kg 67kg

145kg

 208kg 143kg 207kg

Gross Weight

 65kg 79kg

171kg

245kg

168kg

244kg

2XZ-2: 23kg
The details

Specifications

Model
BOV-30V / BOV-50V / BOV-90V / BOV-215V / BOV-90VL / BOV-215VL
Capacity
23L / 53L / 91L / 213L / 91L / 213L
Temp. Range
RT+10~200℃ / RT+10~250℃ / RT+10~200℃ / RT+10~200℃ / RT+10~200℃ / RT+10~200℃
Temp. Fluctuation
±1℃
Vacuum Degree
Vacuum Display
Pointer-type vacuum pressure gauge / Pointer-type differential pressure vacuum gauge with rotatable vacuum value / LED digital display, push button input of the vacuum value / LED digital display, push button input of the vacuum value / LED digital display, push button input of the vacuum value / LED digital display, push button input of the vacuum value
Vacuum Control
Manual control / Automatic differential pressure control / Pressure sensor+deviation control / Pressure sensor+deviation control / Pressure sensor+deviation control / Pressure sensor+deviation control
Timing Range
0~9999min
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) (External transformer)
Consumption
500W / 1400W / 1600W / 2200W / 1600W / 2200W
Shelf
Aluminum shelf*1 / Aluminum shelf*2 / Fixed electric heating aluminum plate*2 / Fixed electric heating aluminum plate*3 / Fixed electric heating aluminum plate*2 / Fixed electric heating aluminum plate*3
Standard Accessories
Shelves / Shelves, vacuum pump, vacuum tube / Shelves, vacuum pump, vacuum tube / Shelves, vacuum pump, vacuum tube / Shelves, vacuum pump, vacuum tube / Shelves, vacuum pump, vacuum tube
Optional Accessories
Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter / External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) / External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) / External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) / External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) / External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series)
Internal Size(W*D*H)
296*300*270mm / 416*370*346mm / 450*450*450mm / 556*600*640mm / 450*450*450mm / 556*600*640mm
External Size(W*D*H)
590*492*468mm / 710*562*544mm / 611*641*1398mm / 721*794*1638mm / 611*641*1398mm / 721*794*1638mm
Package Size(W*D*H)
670*610*600mm / 790*660*670mm / 710*710*1550mm / 940*810*1800mm / 710*710*1550mm / 940*810*1800mm
Package Size(W*D*H)
2XZ-2: 580*215*367mm / 710*710*1550mm / 940*810*1800mm / 710*710*1550mm / 940*810*1800mm / 940*810*1800mm
Net Weight
55kg / 67kg / 145kg / 208kg / 143kg / 207kg
Gross Weight
65kg / 79kg / 171kg / 245kg / 168kg / 244kg
Gross Weight
2XZ-2: 23kg / 171kg / 245kg / 168kg / 244kg / 244kg
