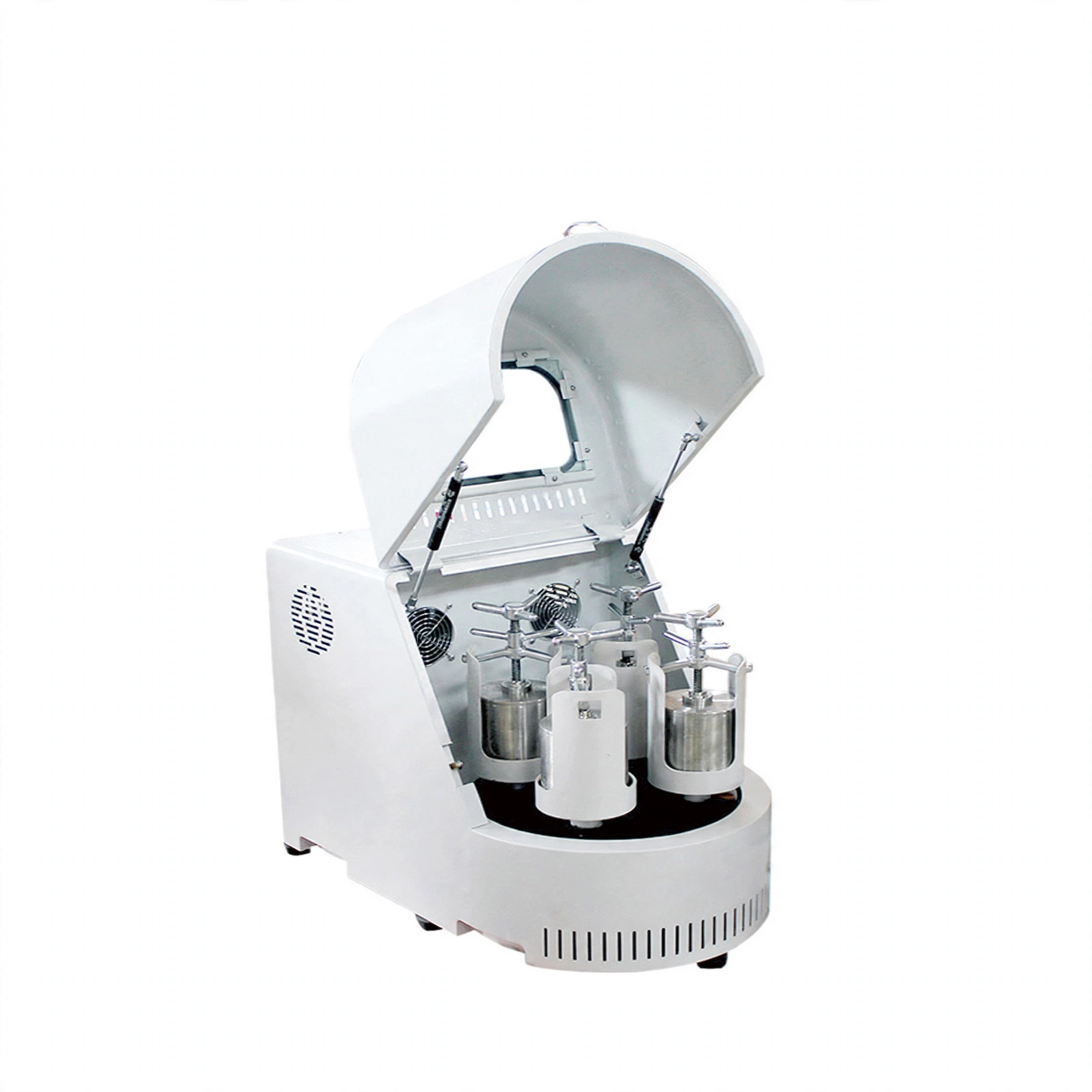

Vertical Planetary Ball Mill(Semi-circle Type)

Model BKBM-V0.4 BKBM-V2 High speed

Application: Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 3D curve shape design.

2. Special gear with low noise.

Technical Parameters:

Model

 BKBM-V0.4 BKBM-V2

Capacity

 0.4L 2L

Volume of Each Capacity

 50~100ml 50~500ml

Pot Quantity

4pcs

Running Time Range

1~9999min

Reciprocal Running Time

1~999min

Adjustable Speed

 Revolution 45~435rpm 35~335rpm
Rotation 90~870rpm 70~670rpm

Noise

 58±5dB 60±5dB

Speed Control Mode

Frequency control

Transmission Mode

Gear drive

Working Mode

2 or 4 pots can be used each time

Maximum Sample Volume(Material+Grinding Ball)

2/3 of the volume of the ball mill tank

Feed Size

Soft and Crispy material<10mm, Other materials<3mm

Out-put Granularity

Minimum granularity can be reached to 0.1μm

Adjusting Mode of Rotate Speed

Frequency converter with stepless speed regulation

Consumption

 0.25KW 0.75KW

Power Supply

AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)

External Size(W*D*H)

 500*300*340mm 750*470*564mm

Package Size(W*D*H)

 600*370*480mm 820*530*720mm

Net Weight

 29kg 80kg

Gross Weight

 35kg 100kg

Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately.
