Mixer

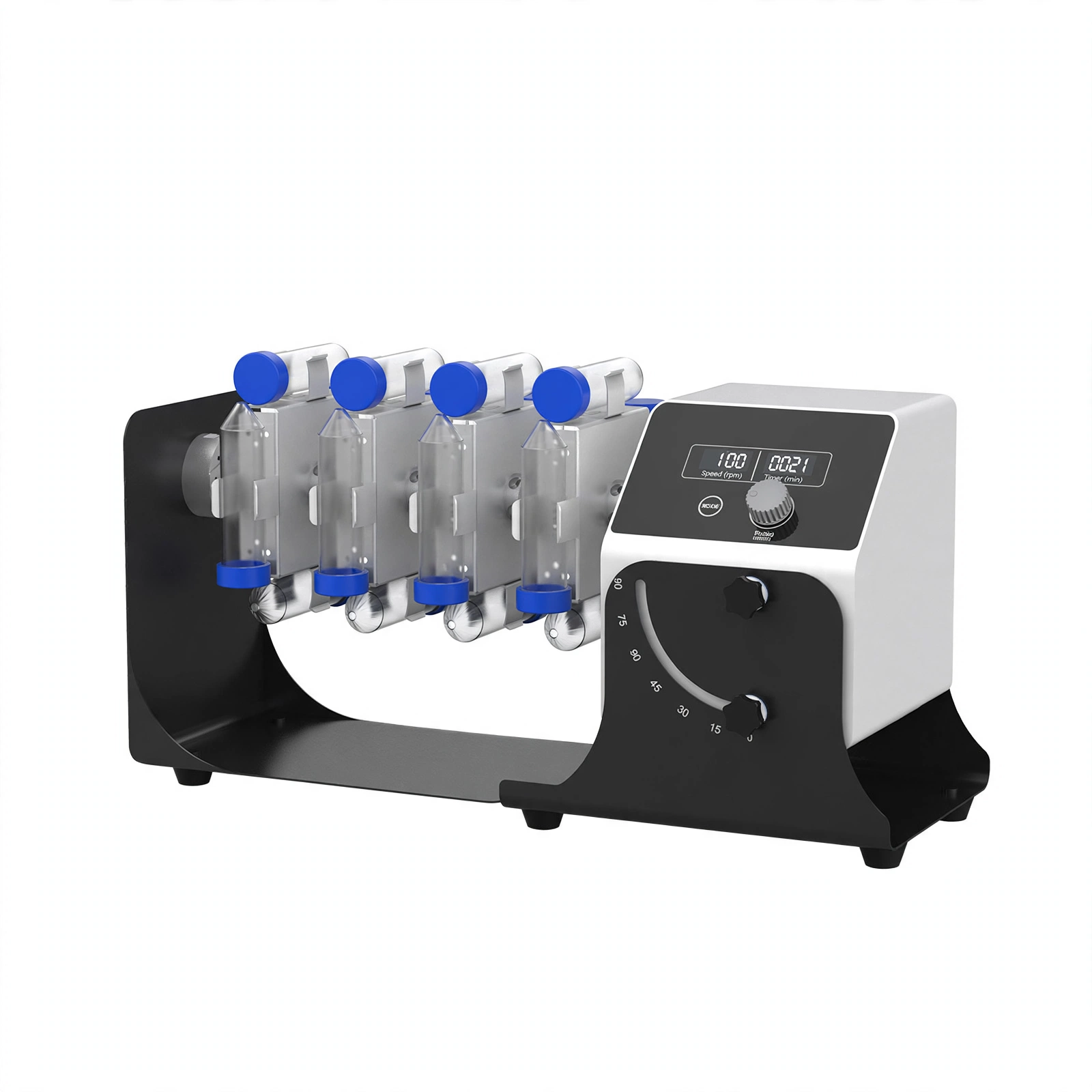

Vertical Rotating Mixer BK-RL20 MX-RL-E MX-RL-Pro

Model BK-RL20 MX-RL-E MX-RL-Pro

The Vertical Rotating Mixer is a highly efficient laboratory device designed to provide consistent and uniform mixing of a wide range of samples.

Max. speed
100 rpm
Power
30W / 20W / 40W
Dimensions
523*237*285mm / 530*1…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Electronic adjustment of speed and time(BK-RL20 and MX-RL-Pro).

2. Display indicates the speed and time for BK-RL20 and MX-RL-Pro.

3. Speed range from10 to 100rpm(BK-RL20), speed range from10 to 70rpm(MX-RL-Pro), adjustable speed range from 0 to 80 rpm(MX-RL-E).

4. Material of the tube holder: Stainless steel with oxidation coating(MX-RL-E), Stainless steel(BK-RL20 and MX-RL-Pro).

5. Material of the clip: Plastic(MX-RL-E), Stainless steel(BK-RL20 and MX-RL-Pro).

6. Three clip sizes are selectable, suit for the tubes: 1.5ml, 15ml, 50ml.

7. A wide variety of accessories are available.

Technical Parameters:

Model BK-RL20 MX-RL-E MX-RL-Pro
Item No. / 8031402000 8031402100
Speed Range 10~100rpm 0~80rpm 10~70rpm
Timing Range 1~9999min / 1~1199min
Operation Mode Continuous or timing Continuous Continuous or timing
Display LED Scale LCD
Motor Type Brushless DC motor DC motor Brushless DC motor
Ambient Temp.

5~40°C
Relative Humidity

≤80%RH
Protection Type /

IP21
Consumption 30W 20W 40W
Power Supply

AC100~240V, 50/60Hz
Standard Accessories 00580 or 00581 or 00582 or 00583 or 00584(Default) or 00585 18900327 and 18900328 and 18900329 18900147 or 18900145
External Size(W*D*H) 523*237*285mm 530*150*190mm 510*220*260mm
Package Size(W*D*H) 615*330*380mm 620*300*370mm 620*300*370mm
Gross Weight 8.5kg 3kg 9kg
The details

Specifications

Model
BK-RL20 / MX-RL-E / MX-RL-Pro
Item No.
/ / 8031402000 / 8031402100
Speed Range
10~100rpm / 0~80rpm / 10~70rpm
Timing Range
1~9999min / / / 1~1199min
Operation Mode
Continuous or timing / Continuous / Continuous or timing
Display
LED / Scale / LCD
Motor Type
Brushless DC motor / DC motor / Brushless DC motor
Ambient Temp.
5~40°C
Relative Humidity
≤80%RH
Protection Type
/ / IP21 / IP21
Consumption
30W / 20W / 40W
Power Supply
AC100~240V, 50/60Hz
Standard Accessories
00580 or 00581 or 00582 or 00583 or 00584(Default) or 00585 / 18900327 and 18900328 and 18900329 / 18900147 or 18900145
External Size(W*D*H)
523*237*285mm / 530*150*190mm / 510*220*260mm
Package Size(W*D*H)
615*330*380mm / 620*300*370mm / 620*300*370mm
Gross Weight
8.5kg / 3kg / 9kg
