Mixer

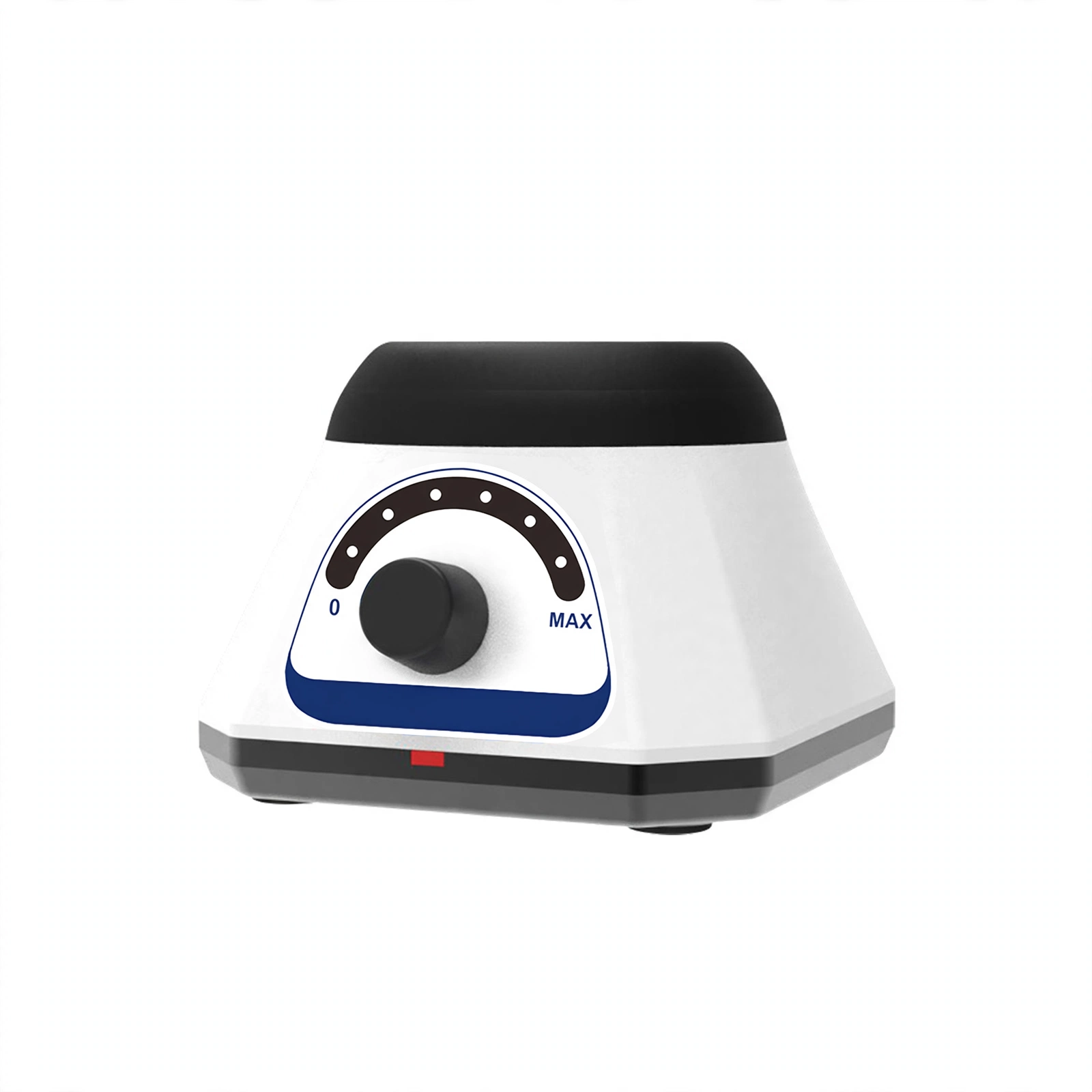

Vortex Mixer BK-VX5S

Model BK-V5S Compact & portable

The Mini Vortex Mixer is suitable for oscillating and mixing various samples such as reagents, solutions, and chemical substances. It is especially suitable for oscillating and mixing samples in small containers(50mL centrifuge tubes). This instrument is compact in size and is particularly suitable for small or crowded laboratories. It is mainly applicable in research fields such as bioengineering, chemical laboratories, and factory testing laboratories. It has a remarkable mixing effect and causes no contamination or impact on the substances inside the test tubes.

Max. speed
3,500 rpm
Net weight
0.4kg
Dimensions
100*90*70mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Small and beautiful, easy to pick up with one hand, weighing only 0.4kg.

2. Equipped with a brushless DC motor, featuring 6-stage stepless speed regulation with a maximum speed of 3500rpm.

3. Offers both momentary and continuous operation modes for selection.

4. The outer shell is made of engineering plastic, which is resistant to chemical corrosion.

5. Anti-slip foot pads at the bottom provide strong grip and ensure stable operation.

Technical Parameters:

Model BK-VX5S
Speed 0~3500rpm
Amplitude Range 4.5mm
Oscillation Mode Circular motion
Motor Type DC brushless motor
Mixing Capacity 50ml
Working Mode Point vibration
Control Form Knob switch
Rotation Control 6-speed stepless speed regulation
Rotational Speed Indication Gear position indicator light
Base Zinc alloy base
Working Environment Temperature: 5~40℃; Humidity: ≤80%
Power Supply AC100~240V, 50/60Hz
Standard Accessory Bowl adapter
External Size(W*D*H) 100*90*70mm
Package Size(W*D*H) 195*124*105mm
Net Weight 0.4kg
Gross Weight 0.6kg
The details

Specifications

Model
BK-VX5S
Speed
0~3500rpm
Amplitude Range
4.5mm
Oscillation Mode
Circular motion
Motor Type
DC brushless motor
Mixing Capacity
50ml
Working Mode
Point vibration
Control Form
Knob switch
Rotation Control
6-speed stepless speed regulation
Rotational Speed Indication
Gear position indicator light
Base
Zinc alloy base
Working Environment
Temperature: 5~40℃; Humidity: ≤80%
Power Supply
AC100~240V, 50/60Hz
Standard Accessory
Bowl adapter
External Size(W*D*H)
100*90*70mm
Package Size(W*D*H)
195*124*105mm
Net Weight
0.4kg
Gross Weight
0.6kg
