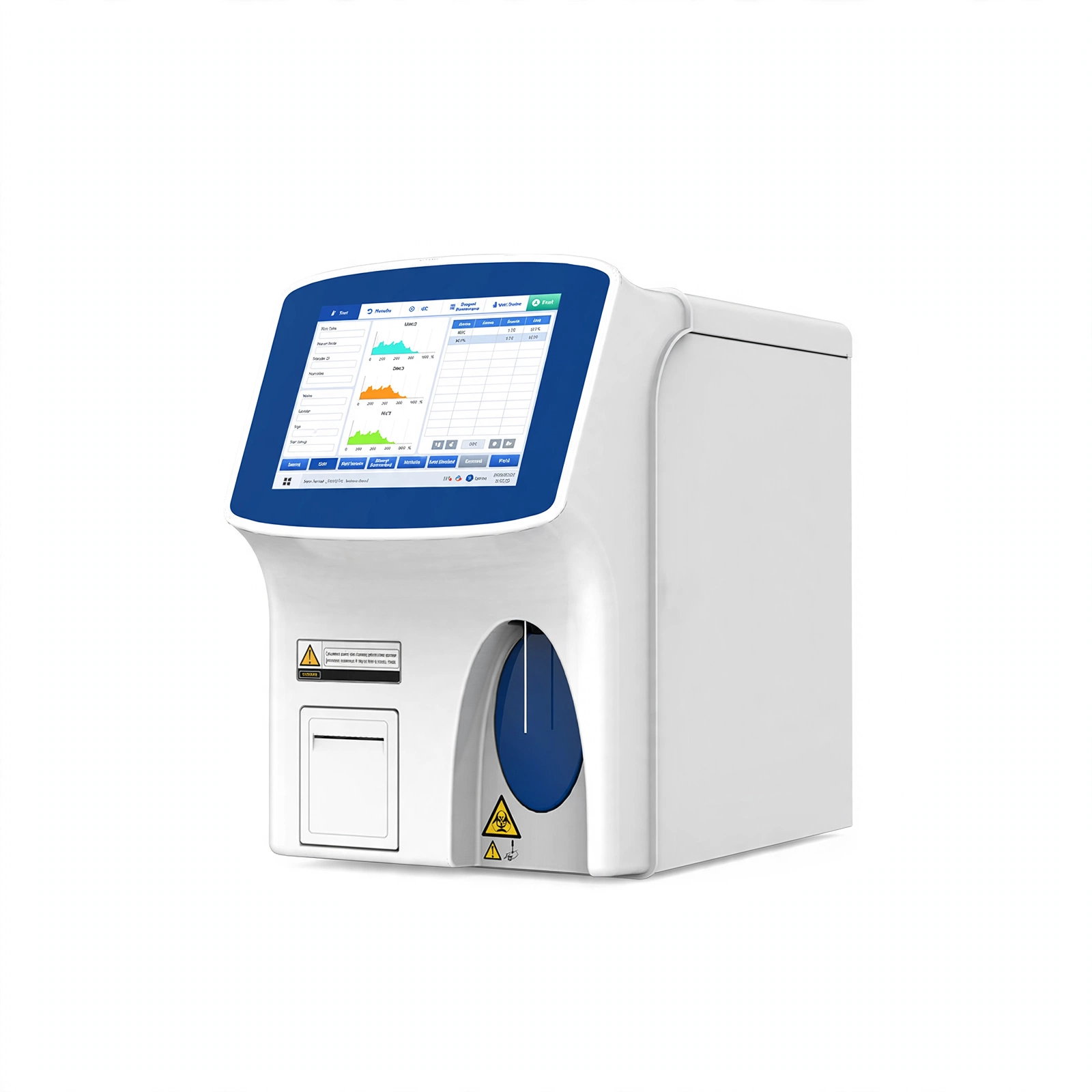

Hematology analyzer is a medical device used to detect and analyze the cellular components of blood, mainly including white blood cells, red blood cells, platelets and so on. It uses optical, electronic and other technologies to count, classify and observe the morphology of blood samples. Blood cell analyzer has important application value in clinical examination, disease prevention, diagnosis and treatment.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen.
2. Fewer samples are required for testing: venous blood: 10μl, capillary: 10ul, prediluted: 20μl.
3. 60 samples/hour.
4. 21 parameters+3 histograms.
5. It can be turned on continuously for 24 hours.
6. Automatically clean the sampler, counting pool and pipeline after starting up.
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB.
9. Fully intelligent blockage removal and alarm function.
10. Both automatic calibration and manual calibration are available.
11. Counting Mode: Venous, capilary, prediluted.
12. Support LIS system.
Technical Parameters:
| Model |
BH-HA310 |
|||||
| Throughput |
60 samples/hour |
|||||
| Principle |
Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB |
|||||
| Channels |
2 |
|||||
| Parameters |
21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) |
|||||
| Histograms |
3 histograms(including WBC, RBC, PLT histograms) |
|||||
| Sample Volume |
Venous blood: 10μl, Capillary: 10μl, Prediluted: 20μl |
|||||
| Calibration |
Manual, auto calibration |
|||||
| Counting Modes |
Venous, capilary, prediluted |
|||||
| Printing Model |
Auto print, manual print |
|||||
| LIS |
Support Bi-directional LIS |
|||||
| Language |
Chinese, English, Spanish, French, Russian, Ukrainian |
|||||
| Reagent |
Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml |
|||||
| Data Input |
9.7-inch touch screen, mouse, keyboard(optional) |
|||||
| Output |
Internal printer, support external printer |
|||||
| Printer Paper |
57*30mm |
|||||
| Interface |
4 USB ports, network port, RS232 serial port |
|||||
| Storage |
100,000 results with histogram |
|||||
| Unclog |
High voltage burn, reverse high-pressure flush |
|||||
| Work Temperature |
10~40°C |
|||||
| Power Supply |
100~240AC, 50/60Hz, 150VA |
|||||
| Relative Humidity |
≤80% |
|||||
| Atmospheric Pressure |
86.0kPa~106.0kPa |
|||||
|
Carry-over Rate |
Parameter | WBC | RBC | HGB |
PLT |
|
| CV | ≤1.5% | ≤1% | ≤1% |
≤3% |
||
|
Background |
Parameter | WBC | RBC | HGB | HCT | PLT |
| Background | ≤0.5*10^9/L | ≤0.05*10^12/L | ≤2g/L | ≤0.5% | ≤10*10^9/L | |
|
Linearity |
Parameter |
Measurement Range |
CV |
|||
| WBC |
(1~10.00*10^9)/L |
(±0.5*10^9)/L |
||||
| RBC |
(0.3~1.00*10^12)/L (1.01~7*10^12)/L |
(±0.05*10^12)/L |
||||
| HGB |
(20~70g)/L |
(±2.0g)/L |
||||
| PLT |
(20~100*10^9)/L |
(±10.0*10^9)/L |
||||
|
Precision |
Parameter |
Repeatability |
Measurement Range |
|||
| WBC |
≤4.0% |
(3.5~9.5*10^9)/L |
||||
| RBC |
≤2.0% |
(3.8~5.8*10^12)/L |
||||
| HGB |
≤2.0% |
(115~175)g/L |
||||
| PLT |
≤8.0% |
(125~350*10^9)/L |
||||
| HCT |
≤3.0% |
35%~50% |
||||
| External Size(W*D*H) |
295*505*430mm |
|||||
| Packed Size(W*D*H) |
Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm |
|||||
| Net Weight |
20kg |
|||||
| Gross Weight |
Instrument: 23kg; Reagent: 13kg, 1kg |
|||||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

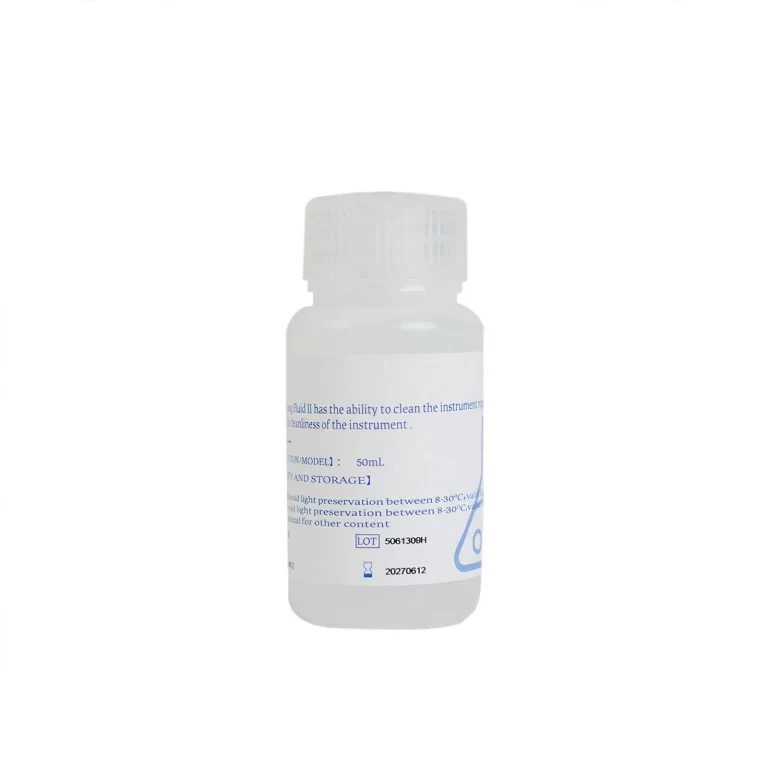

Hematology Analyzer Lyse SFL、SFL-DM、SFL-TK: used to destroy red blood cells, dissolve hemoglobin, and maintain the required morphology of analyzed cells before blood cell analysis, so as to facilitate cell classificat…

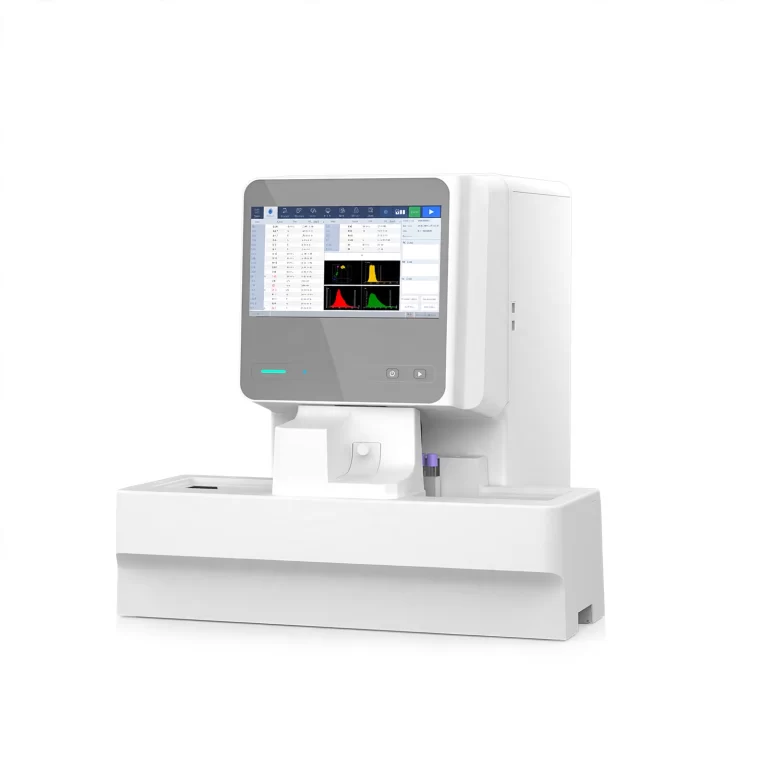

The Hematology Analyzer adopts classical resistance method to automatically count a variety of cells, also can classify simply according to the size of white blood cells, to help the lab easily achieve automation. Hem…

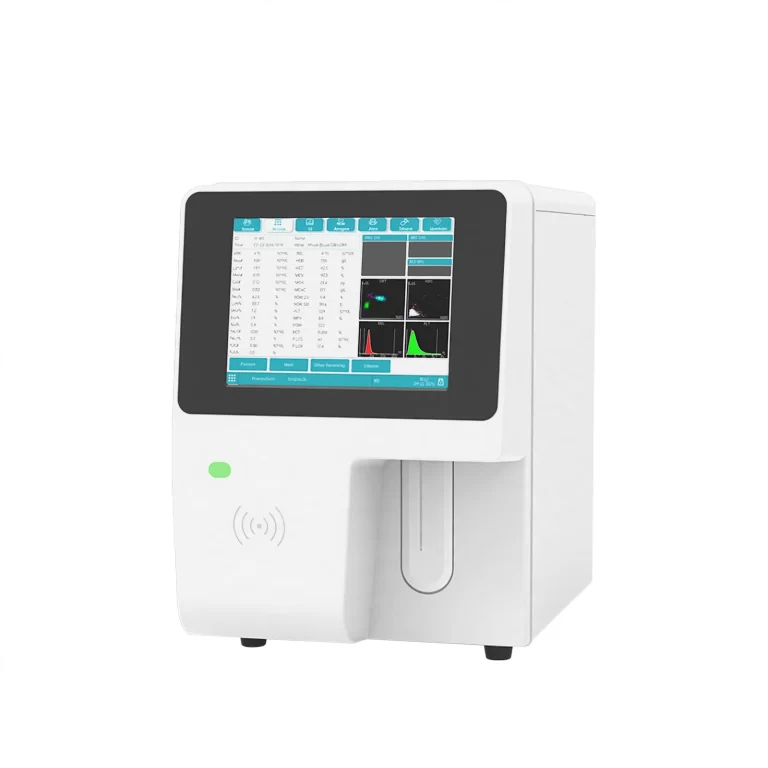

The 5-part hematology analyzer is an in vitro diagnostic device developed based on laser flow cytometry analysis, nucleic acid fluorescence staining and other technologies, which can quantitatively and qualitatively a…

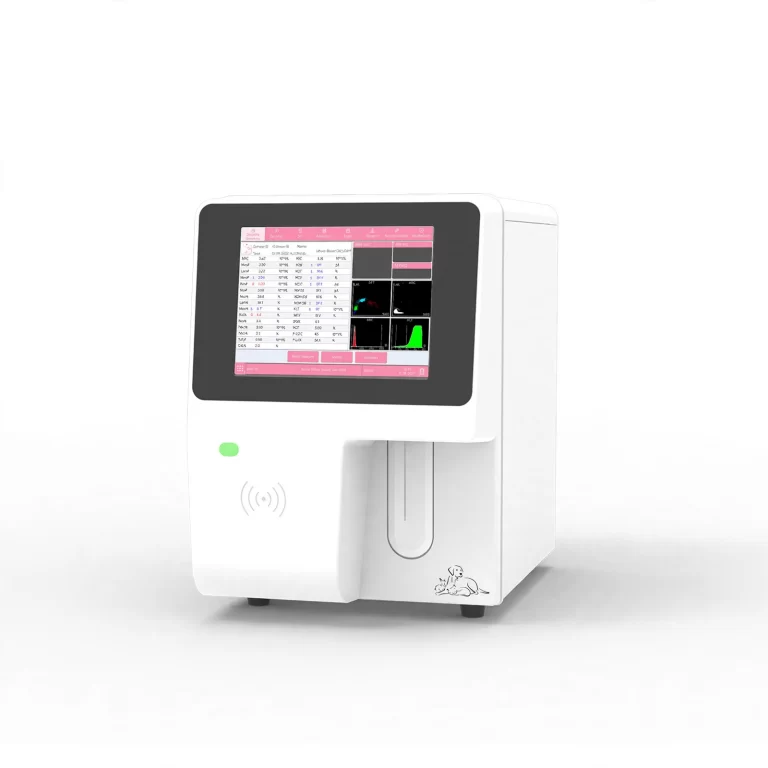

The 5-Part Auto Veterinary Hematology Analyzer BH-HA610VET is a benchtop analyzer designed for complete blood count testing in veterinary clinics and animal hospitals. It features advanced sweep flow technology for ac…
