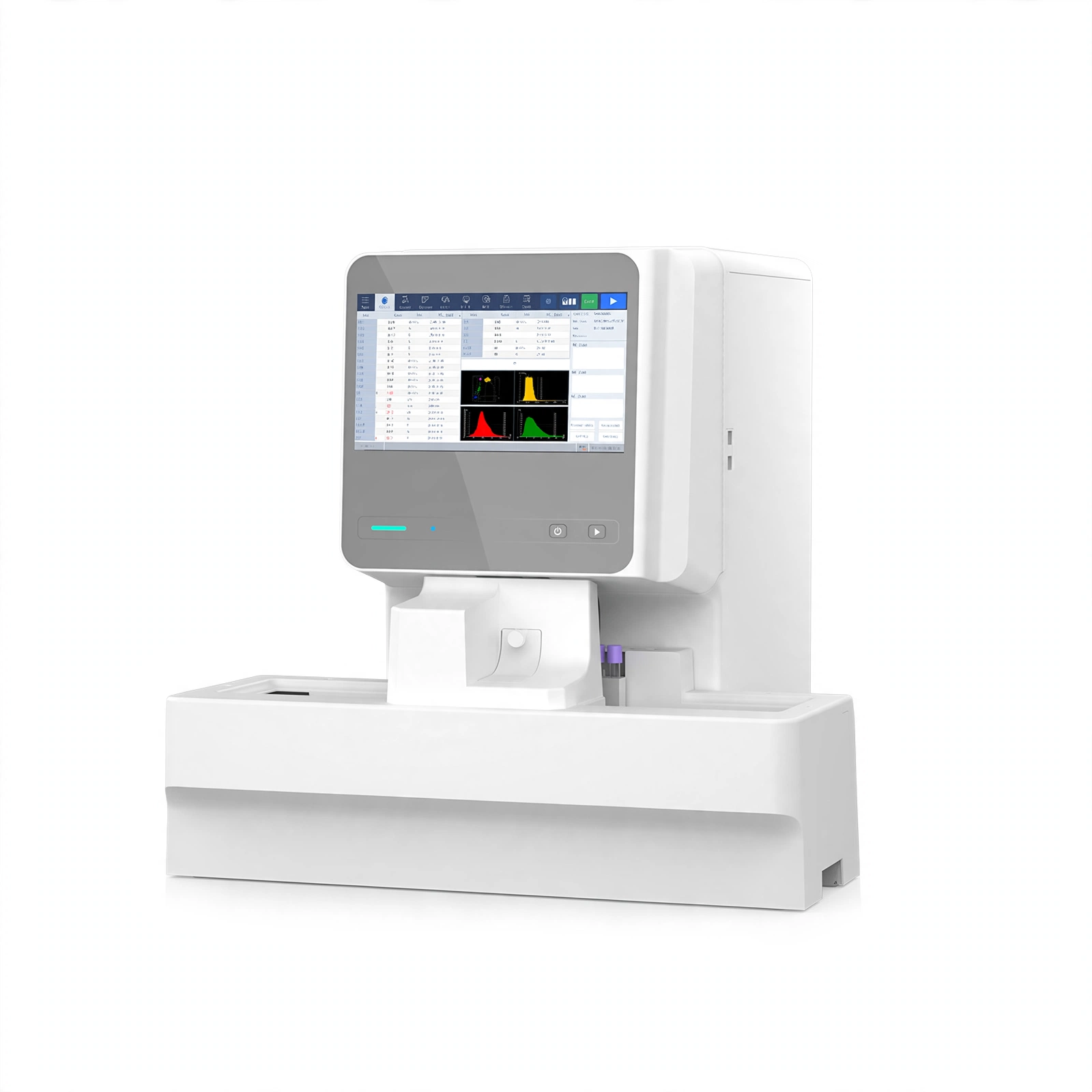

The 5-part hematology analyzer is an in vitro diagnostic device developed based on laser flow cytometry analysis, nucleic acid fluorescence staining and other technologies, which can quantitatively and qualitatively analyze components such as red blood cells, white blood cells and platelets in the blood.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Throughput 70t/h.
2. 14 inch touch screen.
3. 50 sample positions, automatic loading, mixing and sampling.
4. Tri-angle laser scatter+flow cytometry method+impedance method for counting.
5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
6. Large storage capacity: 300,000 results(including histogram, scattergram, patient information).
Technical Parameters:
| Model |
BK-6500 |
|||
| Throughput |
70 tests/hour |
|||
| Assay Items |
5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram |
|||
| Principle |
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
|||
| Test Mode |
CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
|||
| Sample Volume |
CBC+DIFF mode: ≤20μl CBC mode: ≤10μl |
|||
| Parameters |
25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# |
|||
|
Performance |
Item | Linearity Range | Carry Over | CV |
| WBC | 0~300.0*10^9/L | ≤0.5% | ≤2.0% | |
| RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% | |
| HGB | 0~260g/L | ≤0.5% | ≤1.5% | |
| PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% | |
| Storage |
Up to 300,000 results including histograms, scattergrams and patient information |
|||
| Display |
14 inch touch screen, resolution 1366*768 |
|||
| Interface |
4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
|||
| System | LINUS system | |||
| Loading Position |
50 sample positions |
|||
| Power Supply |
AC100~240V, 50/60Hz; 300VA |
|||
| Package Size(W*D*H) |
Main Machine: 725*665*700mm Accessories: 950*500*580mm |
|||
| Gross Weight |
Main Machine: 60kg Accessories: 27.6kg |
|||
| Reagent Package Size(W*D*H) |
330*330*330mm; 330*230*230mm; 330*230*230mm |
|||
| Reagent Gross Weight |
22kg, 2kg, 1kg |
|||
Ask our team for the full specification sheet for this model.
