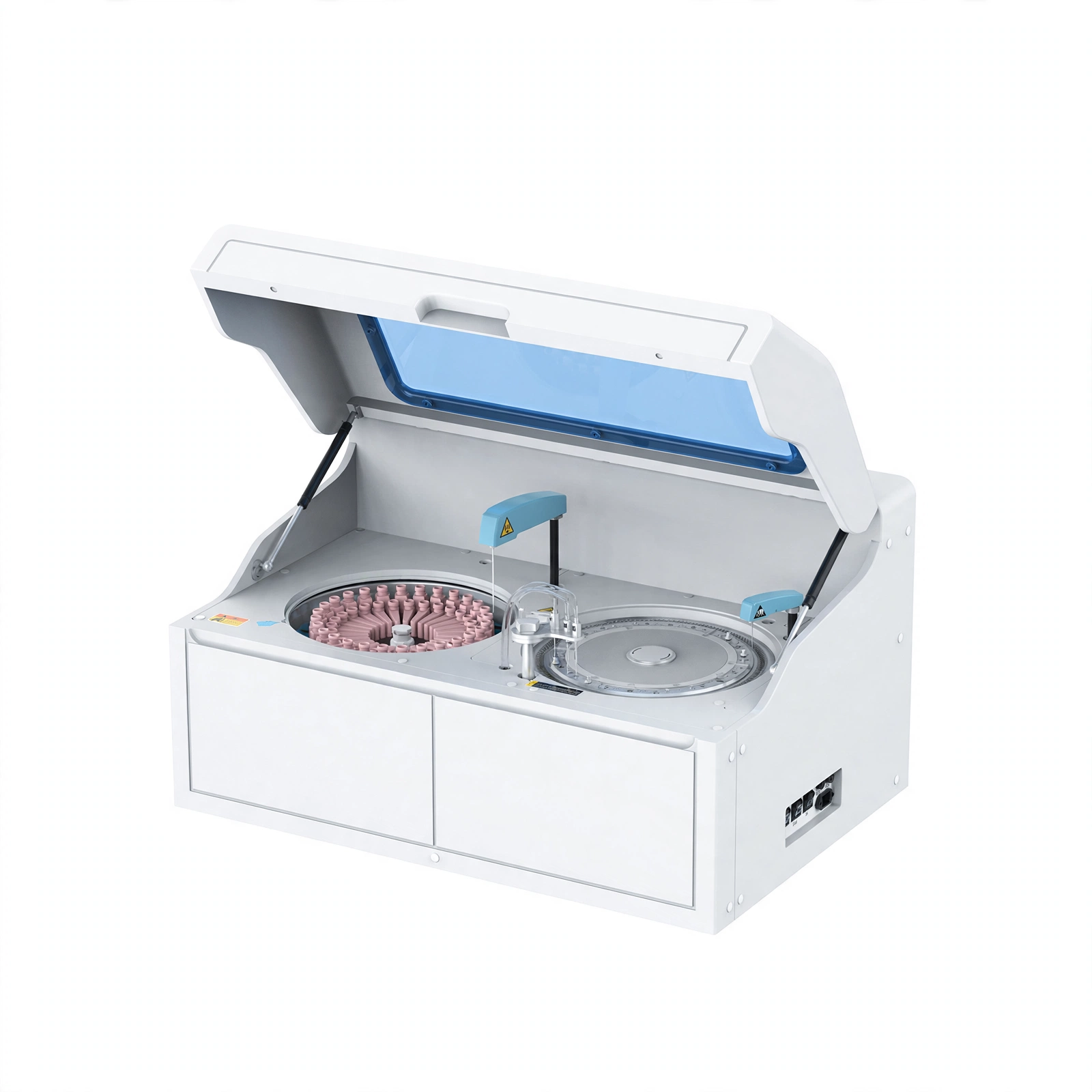

The 300T/H Automatic Chemistry Analyzer is a state-of-the-art diagnostic tool designed for high-efficiency biochemical analysis. This advanced instrument boasts an impressive array of features tailored to meet the demands of modern laboratories.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 50 sample positions
2. 56 reagent positions.
3. 120 reaction cuvettes.
4. 300 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Technical Parameters:
| Model | BK-310 | |
|
Overall |
Throughput | 300 tests/hour, ISE(Optional) |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
| System | Optional open or close system, continuous working for 24 hours | |
|
Sample&Reagent System |
Sample Positions | 50 sample positions |
| Reagent Position | 56 reagent positions | |
| Sample Volume | 2~70μl | |
| Reagent Volume | 20~350μl | |
| Probe | With anti-collision function, liquid level detection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | 2~12℃ for 24 hours | |
|
Reaction System |
Temperature Control | 37±0.2℃, real-time monitoring |
| Cuvettes | 120 reusable cuvettes | |
| Mixer Probe | Independent stirring, automatic frequency conversion | |
| Washing | Automatic cuvettes washing | |
|
Optical System |
Light Source | Halogen lamp, water-cooling |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340~800nm | |
| Absorbance | 0~3.5Abs | |
|
Calibration&QC |
Calibration |
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | |
|
Data Management |
Software | Windows 7/8/10, 32 or 64 bit |
| LIS System | Bi-direction, support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External, multiple reporting mode available | |
|
Working Conditions |
Power Supply |
AC220V±10%, 50/60Hz(Standard)
110V±10%, 60Hz(Optional), 350VA |
| Temperature | 15~30℃(±2℃) | |
| Water Consumption | Deionized water＜6L/h | |
| Humidity | 40~85% | |
|
Size&Weight |
External Size(W*D*H) | 873*585*500mm |
| Net Weight | 80kg | |
| Package Size(W*D*H) | 1130*735*1040mm | |
| Gross Weight | 125kg | |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
