Biochemistry Analyzer

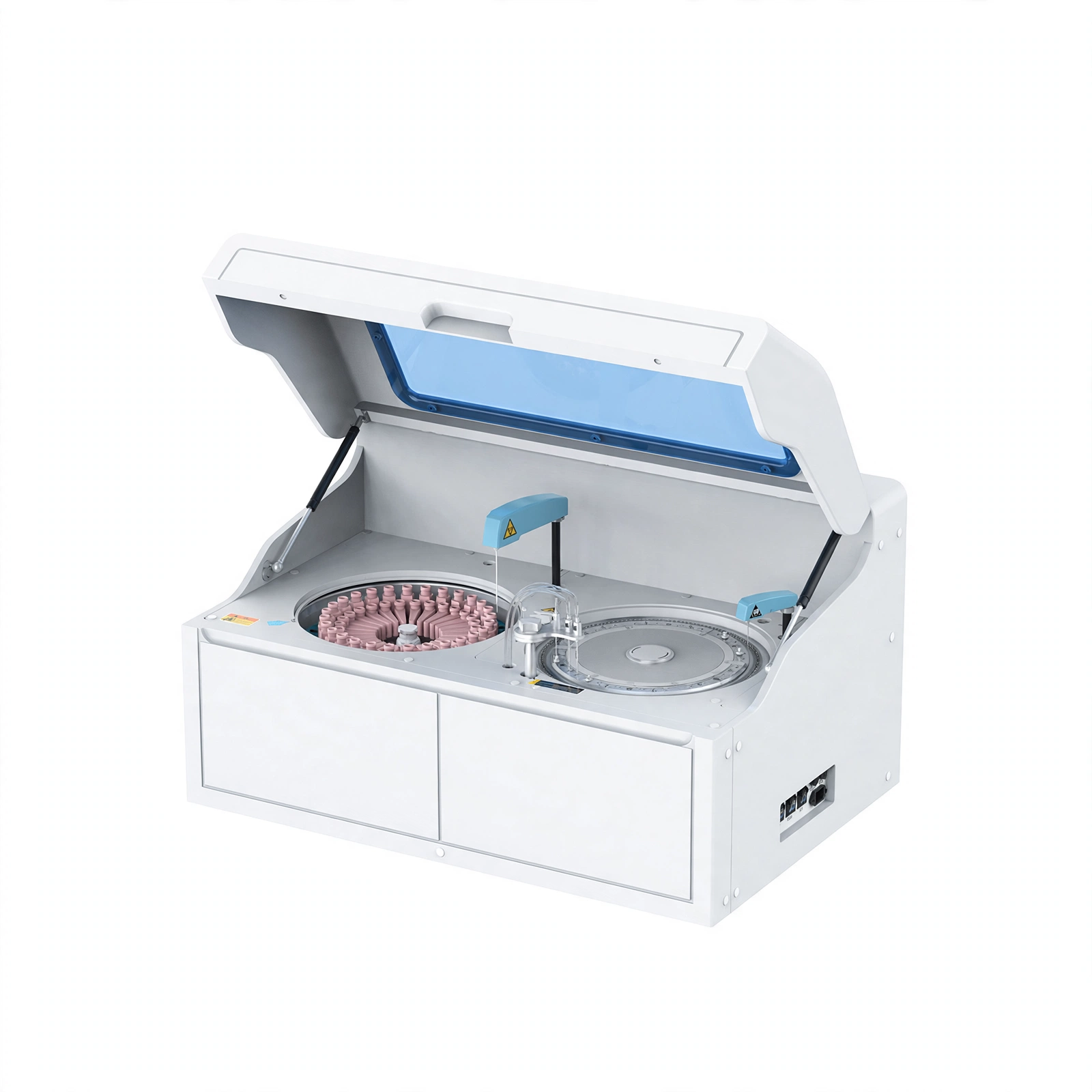

300T/H Automatic Chemistry Analyzer BK-360

Model BK-360

The 300T/H Automatic Chemistry Analyzer is a state-of-the-art diagnostic tool designed for high-efficiency biochemical analysis. This advanced instrument boasts an impressive array of features tailored to meet the demands of modern laboratories.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 50 sample positions.
2. 56 reagent positions.

3. 120 reaction cuvettes.

4. 300 tests per hour.

5. Probe with anti-collision function, liquid level dectection function.

Technical Parameters:

Model BK-360

Overall
Performance

 Throughput 300 Tests/hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, FDA, ISO9001, ISO14001, ISO13485
System Optional open or close system, continuous working for 24 hours

Sample&Reagent System

 Sample Positions 50 sample positions
Reagent Position 56 reagent positions
Sample Volume 2~70μl
Reagent Volume 20~350μl
Probe With anti-collision function, liquid level detection function(sample&reagent)
Probe Washing Automatic washing interior and exterior
Reagent Cooling 2~12℃ for 24 hours

Reaction System

 Temperature Control 37±0.2℃, real-time monitoring
Cuvettes 120 reusable cuvettes
Mixer Probe Independent stirring, automatic frequency conversion
Washing Automatic cuvettes washing

Optical System

 Light Source Halogen lamp, water-cooling
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340~800nm(340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm)
Absorbance 0~3.5Abs

Calibration&QC

 Calibration Linear: K factor, 1-point, 2-point and multipoint linear

Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D)

Data Management

 Software Windows 7/8/10, 32 or 64 bit
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
Printer External, multiple reporting mode available

Working Conditions

 Power Supply AC220V±10%, 50/60Hz(Standard), Auxiliary UPS system
Temperature 15~30℃(±2℃)
Water Consumption Deionized water＜5L/h
Humidity 40~85%

Size&Weight

 External Size(W*D*H) 873*585*500mm
Net Weight 80kg
Package Size(W*D*H) 1130*735*1040mm
Gross Weight 125kg

Other Accessories

 Automatic built-in barcode sample and reagent scanning, External barcode scanner
ISE(Ion-Selective Electrode)module, to simultaneously measure critical

electrolytes,sodium(Na+), potassium(K+), and chloride(Cl-)in blood samples
Needle blocking detection, detect flow restriction from air bubbles or clots

System

 Prevent contamination from sample to sample(sample carry over)and

from reagent to reagent(reagent carry over)and from cuvette to cuvette
Independent mixing unit
Capable of photometric and turbidity analysis,and capable of single-color and dual-color measurement
With reflex testing capabilities
Automatic pre-dilution and re-dilution of samples
Dual chemistry(Twin Chemistry)
300 free programable tests
Results traceability

Analyze Samples

 Serum, plasma, whole blood, urine and cerebrospinal fluid, etc
Onboard automatic hemolysate preparation for whole blood samples
Reaction Volume 100~500μl

This BK-360, Fully Automated Random Access, Benchtop, Clinical Chemistry Analyzer is designed forease of use, outstanding performance, ease of maintenance, economy and durability.

It features a new intuitive and powerful software with a user-friendly interface, and easy handling and control.
It offers various functions which simplifie the laboratory work, by giving freedom to the operator to programand run extra tests, according to their needs.

System alerts the operator promptly on all functions(e.g.needle blocking detection, liquids level detection etc)
The equipment is LlS-connected and can efficiently process and graphically display samples.

It enhances productivity and turnaround time and can handle the demands of an increased workload
It can provide faster, easier, more accurate medical diagnosis using the smallest amount of whole blood, serum, plasma, urine, cerebrospinal fluid etc.

All components are made of solid materials to ensure precise measurement results with the highest sensitivity and linearity.

The details

Specifications

Other Accessories
Automatic built-in barcode sample and reagent scanning, External barcode scanner
Other Accessories
ISE(Ion-Selective Electrode)module, to simultaneously measure criticalelectrolytes,sodium(Na+), potassium(K+), and chloride(Cl-)in blood samples
Other Accessories
Needle blocking detection, detect flow restriction from air bubbles or clots
System
Prevent contamination from sample to sample(sample carry over)andfrom reagent to reagent(reagent carry over)and from cuvette to cuvette
System
Independent mixing unit
System
Capable of photometric and turbidity analysis,and capable of single-color and dual-color measurement
System
With reflex testing capabilities
System
Automatic pre-dilution and re-dilution of samples
System
Dual chemistry(Twin Chemistry)
System
300 free programable tests
System
Results traceability
Analyze Samples
Serum, plasma, whole blood, urine and cerebrospinal fluid, etc
Analyze Samples
Onboard automatic hemolysate preparation for whole blood samples
Reaction Volume
100~500μl
