-86℃ Ultra-low Temperature Freezer

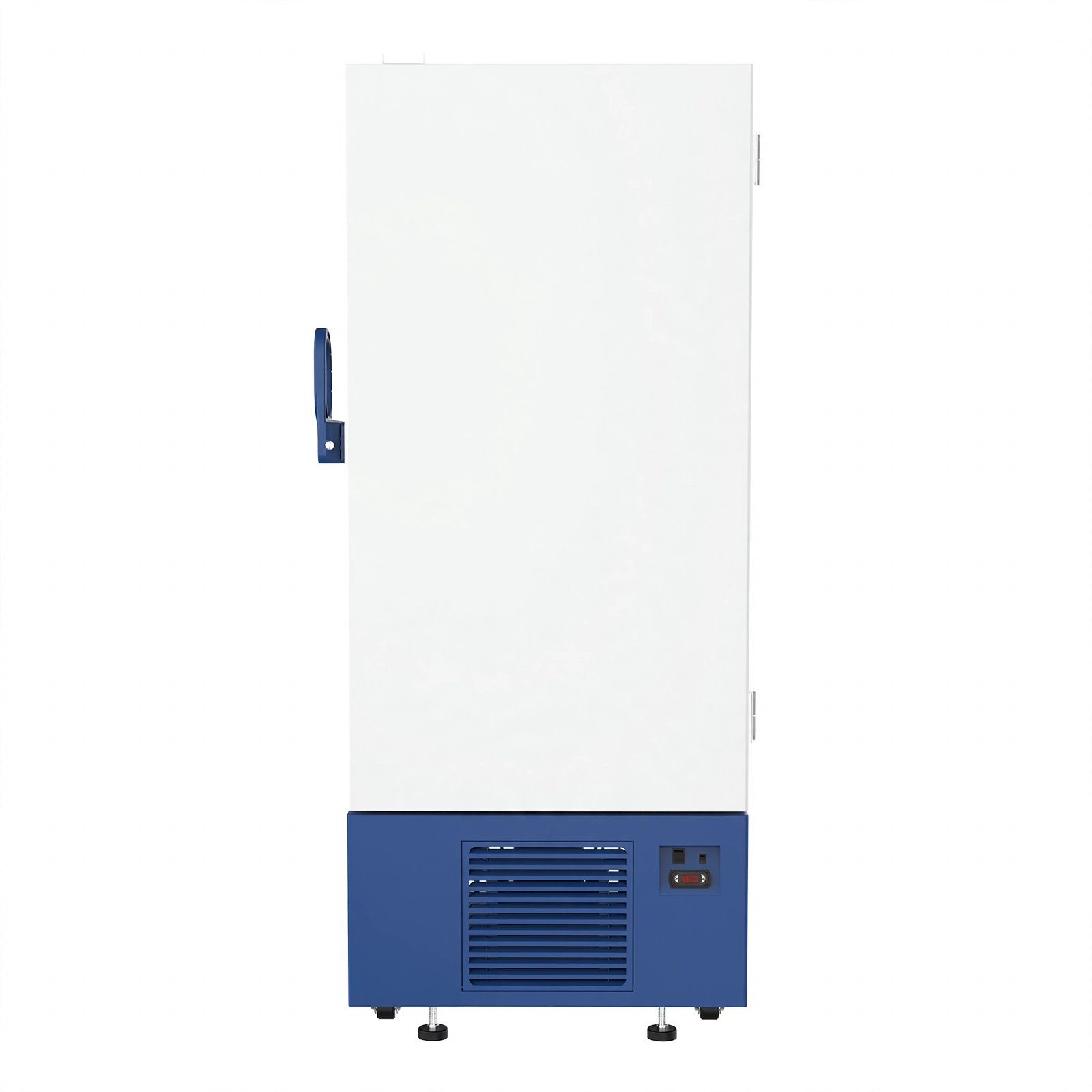

-86℃ Freezer (Inverter Type)

Model BDF-86V168B BDF-86V348B Refrigerated

The -86℃ Freezer is specifically designed for the long-term preservation of highly temperature-sensitive samples. It maintains sample viability and stability at extremely low temperatures, widely used in biobanking, pharmaceutical research, clinical medicine, and food safety.

Capacity
168L / 348L
Temperature
-40~-86℃
Power
442W / 400W
Noise
53dB
Net weight
168kg / 232kg
Dimensions
844*807*1594mm / 869*…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Internationally recognized inverter compressor, eco-efficient hydrocarbon refrigerant, fast, efficient cooling with low energy consumption.

2. External material is high-quality cold-rolled steel with eco-friendly ceramic coating and spray finishing, internal material is international standard SUS304 stainless steel.

3. Single-unit auto-cascade refrigeration system. Comprehensive audible and visual alarm system.

4. Password protection function prevents unauthorized adjustment of operating parameters.

5. Dual-lock design ensures the security of stored items.

6. Five-layer door gasket seals in cold air and prevents leakage, ensuring uniform temperature and improving energy efficiency.

7. Evaporator is made of high-efficiency heat transfer copper tube embedded in the inner wall for conduction cooling, saving internal space.

Technical Parameters:

Model BDF-86V168B

BDF-86V348B
Capacity 168L

348L
Environment Temp.

10~32℃
Temp. Range

-40~-86℃
Temp. Accuracy

0.1℃
Temp. Uniformity

±4℃
Temp. Stability

≤6℃
Control System

Electronic temperature control
Display

LED
Alarm High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm
Sensor Type

PT1000
Refrigeration Type

Direct-cooling
Refrigerant R600a/R1150/R14, 180g

R600a/R1150/R14, 285g
Compressor

International famous brand inverter compressor/1
Defrosting Method

Manual
Condenser & Evaporator

Condenser: microchannel condenser

Evaporator: internal coil; copper tube

 Condenser: finned copper tube condenser

Evaporator: internal coil; copper tube
Shelf 2/Stainless steel

3/Stainless steel
Noise

53dB(A)
Outer Door

1/Cyclopentane integral foaming
Inner Door 3/Cyclopentane integral foaming

2/Cyclopentane integral foaming
Consumption 442W

400W
Power Supply

Standard: 220V, 50Hz

Optional: 220V, 60Hz; 110V, 60Hz
Caster

Universal casters*4 + leveling feet*2
Standard Accessory

Test port*2(φ30mm)
Optional Accessory

Temperature recorder, USB port, RS485, liquid nitrogen backup system
Inner Size(W*D*H) 465*455*820mm

490*612*1150mm
External Size(W*D*H) 844*807*1594mm

869*989*1924mm
Package Size(W*D*H) 1000*970*1790mm

929*1049*2150mm
Net Weight 168kg

232kg
Gross Weight 221kg

300kg
The details

Specifications

Model
BDF-86V168B / BDF-86V348B
Capacity
168L / 348L
Environment Temp.
10~32℃
Temp. Range
-40~-86℃
Temp. Accuracy
0.1℃
Temp. Uniformity
±4℃
Temp. Stability
≤6℃
Control System
Electronic temperature control
Display
LED
Alarm
High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm
Sensor Type
PT1000
Refrigeration Type
Direct-cooling
Refrigerant
R600a/R1150/R14, 180g / R600a/R1150/R14, 285g
Compressor
International famous brand inverter compressor/1
Defrosting Method
Manual
Condenser & Evaporator
Condenser: microchannel condenserEvaporator: internal coil; copper tube / Condenser: finned copper tube condenserEvaporator: internal coil; copper tube
Shelf
2/Stainless steel / 3/Stainless steel
Noise
53dB(A)
Outer Door
1/Cyclopentane integral foaming
Inner Door
3/Cyclopentane integral foaming / 2/Cyclopentane integral foaming
Consumption
442W / 400W
Power Supply
Standard: 220V, 50HzOptional: 220V, 60Hz; 110V, 60Hz
Caster
Universal casters*4 + leveling feet*2
Standard Accessory
Test port*2(φ30mm)
Optional Accessory
Temperature recorder, USB port, RS485, liquid nitrogen backup system
Inner Size(W*D*H)
465*455*820mm / 490*612*1150mm
External Size(W*D*H)
844*807*1594mm / 869*989*1924mm
Package Size(W*D*H)
1000*970*1790mm / 929*1049*2150mm
Net Weight
168kg / 232kg
Gross Weight
221kg / 300kg
