Biological Safety Cabinet

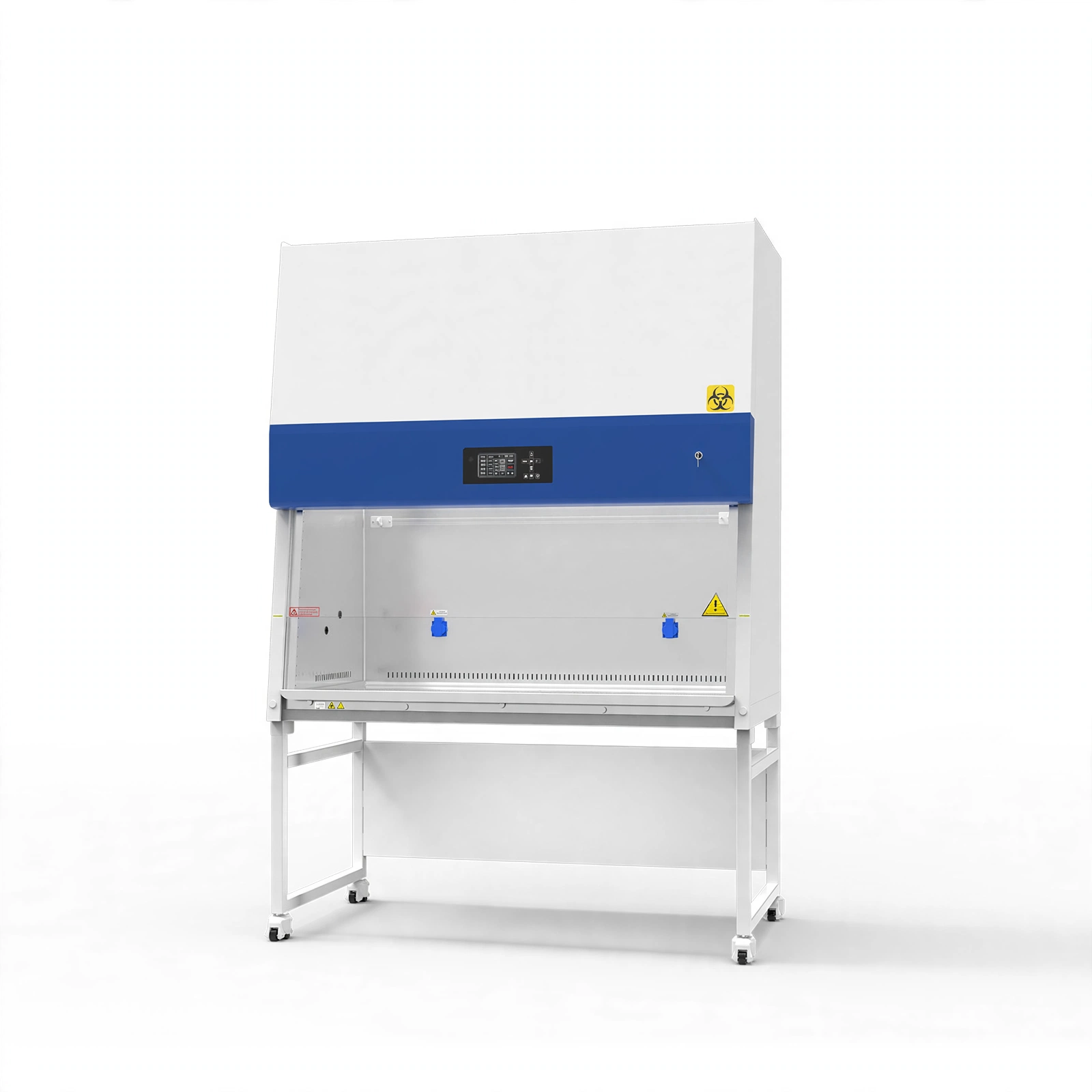

AC Series Class II A2 Biological Safety Cabinet

Model BSC-1100IIA2-X BSC-1300IIA2-X BSC-1500IIA2-X BSC-1800IIA2-X BSC-2000IIA2-X

Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety

Power
600W / 800W / 1300W /…
Noise
≤65dB
Dimensions
1100*755*2200mm / 130…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

1. 4.7-inch color display: real-time and clearer display of various values and appointment timing function.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Technical Parameters:

Model BSC-1100IIA2-X BSC-1300IIA2-X BSC-1500IIA2-X BSC-1800IIA2-X BSC-2000IIA2-X
External Size(W*D*H) 1100*755*2200mm 1300*755*2200mm 1500*755*2200mm 1800*755*2200mm 1950*775*2200mm
Internal Size(W*D*H) 940*600*660mm 1150*600*660mm 1350*600*660mm 1625*600*660mm 1800*600*660mm
Tested Opening

Safety height 200mm(8″)
Max Opening

480mm
Inflow Velocity

0.53±0.025m/s
Downflow Velocity

0.33±0.025m/s
ULPA Filter

Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window

Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
Noise

≤65dB

UV Lamp

 30W*1 30W*1 40W*1 40W*1 40W*1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp 12W*2 14W*2 16W*2 16W*2 12W*4
Illumination

≥1000Lux
Consumption 600W 800W 1300W 1300W 1700W
Waterproof Socket

Two, total load of two sockets: 500W
Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System

Microprocessor
Airflow System

70% air recirculation, 30% air exhaust
Visual and Audio Alarm

Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height

770mm(Can be customized)

800mm(Can be customized)
Caster

Footmaster caster
Power Supply

AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory

LED lamp 2pcs(except for BSC-2000IIA2-X 4pcs), UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs
Optional Accessory

Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight 270kg 310kg 335kg 395kg 420kg
Package Size(W*D*H) 1230*990*1840mm 1430*990*1840mm 1630*990*1840mm 1930*990*1840mm 2080*990*1840mm
The details

Specifications

Model
BSC-1100IIA2-X / BSC-1300IIA2-X / BSC-1500IIA2-X / BSC-1800IIA2-X / BSC-2000IIA2-X
External Size(W*D*H)
1100*755*2200mm / 1300*755*2200mm / 1500*755*2200mm / 1800*755*2200mm / 1950*775*2200mm
Internal Size(W*D*H)
940*600*660mm / 1150*600*660mm / 1350*600*660mm / 1625*600*660mm / 1800*600*660mm
Tested Opening
Safety height 200mm(8")
Max Opening
480mm
Inflow Velocity
0.53±0.025m/s
Downflow Velocity
0.33±0.025m/s
ULPA Filter
Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window
Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
Noise
≤65dB
UV Lamp
30W*1 / 30W*1 / 40W*1 / 40W*1 / 40W*1
UV Lamp
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp
12W*2 / 14W*2 / 16W*2 / 16W*2 / 12W*4
Illumination
≥1000Lux
Consumption
600W / 800W / 1300W / 1300W / 1700W
Waterproof Socket
Two, total load of two sockets: 500W
Display
LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System
Microprocessor
Airflow System
70% air recirculation, 30% air exhaust
Visual and Audio Alarm
Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure
Material
Work Zone: 304 stainless steel
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height
770mm(Can be customized) / 800mm(Can be customized) / 800mm(Can be customized) / 800mm(Can be customized) / 800mm(Can be customized)
Caster
Footmaster caster
Power Supply
AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory
LED lamp 2pcs(except for BSC-2000IIA2-X 4pcs), UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs
Optional Accessory
Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight
270kg / 310kg / 335kg / 395kg / 420kg
Package Size(W*D*H)
1230*990*1840mm / 1430*990*1840mm / 1630*990*1840mm / 1930*990*1840mm / 2080*990*1840mm
