Biological Safety Cabinet

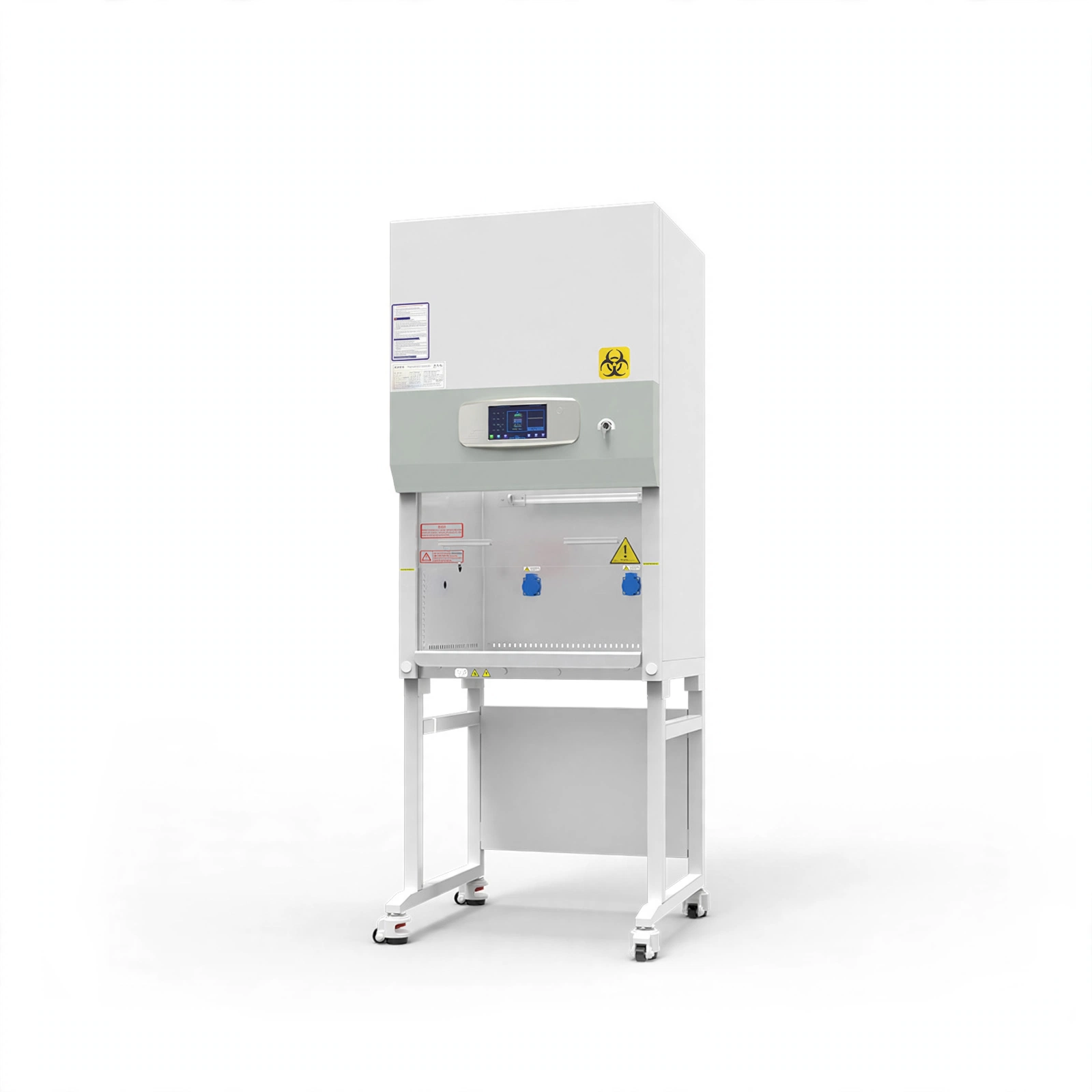

Class II A2 Biological Safety Cabinet EA2-2F

Model EA2-2F

The Class II A2 Biological Safety Cabinet is a high-performance containment unit designed to ensure the safety of laboratory personnel, the environment, and sensitive biological materials. This cabinet is ideal for use in research laboratories, clinical diagnostics, and other environments where handling infectious agents or hazardous materials requires stringent containment measures.

Power
≤500W
Noise
≤65dB
Dimensions
700*700*2000mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Technical Parameters:

Model EA2-2F
External Size(W*D*H) 700*700*2000mm
Internal Size(W*D*H) 600*500*540mm
Tested Opening Safety height 200mm
Max Opening 360mm
Inflow Velocity 0.53±0.025m/s
Downflow Velocity 0.33±0.025m/s
ULPA Filter Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window Manual and electric. Tempered glass≥5mm. Anti UV.
Noise ≤65dB
UV Lamp 15W*1

UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp 8W*2
Illumination ≥1000Lux
Consumption ≤500W
Socket Two, total consumption: 500W
Display LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System 70% air recirculation, 30% air exhaust
Visual and Audio Alarm Filter replacement, window over height, abnormal air flow velocity, High filter pressure, abnormal power failure
Material Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height 750mm with base stand
Power Supply AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, Drain ball valve*1, Waterproof Socket*2, EC fan, Foot switch, Remote control
Optional Accessory Water and gas tap, Electric height adjustable base stand, Armrest
Package Size(W*D*H) Carton: 820*880*1470mm
Gross Weight 172kg
The details

Specifications

Model
EA2-2F
External Size(W*D*H)
700*700*2000mm
Internal Size(W*D*H)
600*500*540mm
Tested Opening
Safety height 200mm
Max Opening
360mm
Inflow Velocity
0.53±0.025m/s
Downflow Velocity
0.33±0.025m/s
ULPA Filter
Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window
Manual and electric. Tempered glass≥5mm. Anti UV.
Noise
≤65dB
UV Lamp
15W*1UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp
8W*2
Illumination
≥1000Lux
Consumption
≤500W
Socket
Two, total consumption: 500W
Display
LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System
70% air recirculation, 30% air exhaust
Visual and Audio Alarm
Filter replacement, window over height, abnormal air flow velocity, High filter pressure, abnormal power failure
Material
Work Zone: 304 stainless steelMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height
750mm with base stand
Power Supply
AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory
Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, Drain ball valve*1, Waterproof Socket*2, EC fan, Foot switch, Remote control
Optional Accessory
Water and gas tap, Electric height adjustable base stand, Armrest
Package Size(W*D*H)
Carton: 820*880*1470mm
Gross Weight
172kg
