Biological Safety Cabinet

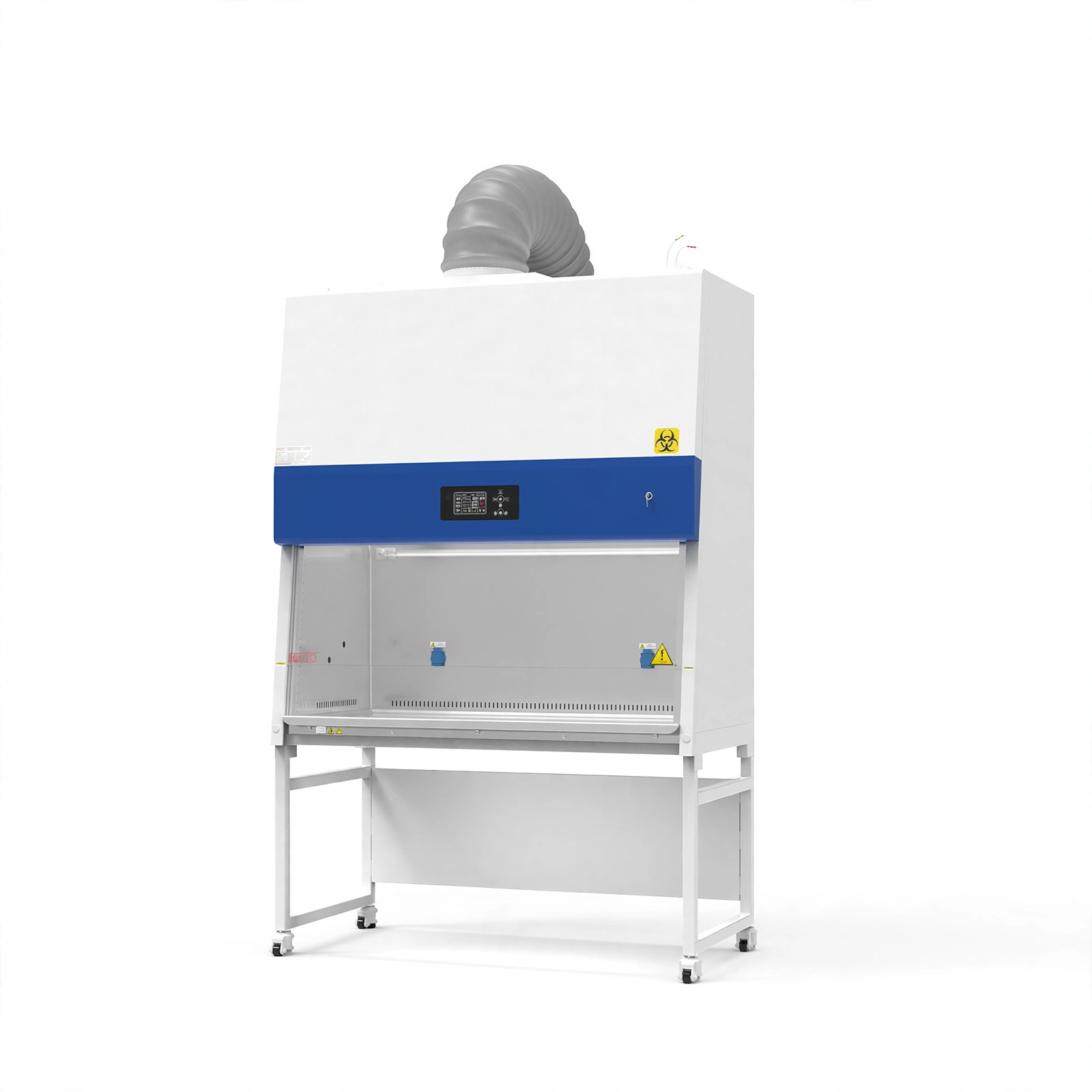

AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

Model BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

The AC Series Class II B2 Biological Safety Cabinet is a high-performance containment unit designed for laboratories handling hazardous biological materials and chemical compounds. Unlike traditional Class II cabinets, the B2 model provides 100% total exhaust, ensuring that all potentially harmful air is completely expelled from the laboratory, making it ideal for applications requiring both biological and chemical safety.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 4.7-inch color display: real-time and clearer display of various values and appointment timing function.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Technical Parameters:

Model

 BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

External Size(W*D*H)

 1100*775*2250mm 1300*775*2250mm 1500*775*2250mm 1800*775*2250mm

Internal Size(W*D*H)

 940*600*660mm 1150*600*660mm 1350*600*660mm 1625*600*660mm

Tested Opening

Safety height 200mm(8″)

Max Opening

480mm

Inflow Velocity

0.53±0.025m/s

Downflow Velocity

0.33±0.025m/s

ULPA Filter

Two, 99.9995% efficiency at 0.12μm, filter life indicator

Front Window

Motorized. Two-layer laminated toughened glass≥6mm. Anti UV

Noise

≤65dB

UV Lamp

 30W*1 30W*1 40W*1 40W*1

UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination

LED Lamp

 12W*2 14W*2 16W*2 16W*2

Illumination

≥1000Lux

Consumption

 1300W 1300W 1300W 1300W

Waterproof Socket

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

0% air recirculation, 100% air exhaust

Visual and Audio Alarm

Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Surface Height

770mm(can be customized)

 800mm(Can be customized)

Caster

Footmaster caster

Power Supply

AC220V, 50/60Hz; 110V, 60Hz

Standard Accessory

LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct

Optional Accessory

Water and gas tap, Electric height adjustable base stand, Armrest

Gross Weight

 275kg; 58kg 320kg; 63kg 340kg; 63kg 390kg; 72kg

Package

Main Body Exhaust Blower(W*D*H)

 1230*990*1840mm 1430*990*1840mm 1630*990*1840mm 1930*990*1840mm
930*800*700mm 930*860*740mm 930*860*740mm 930*860*740mm
