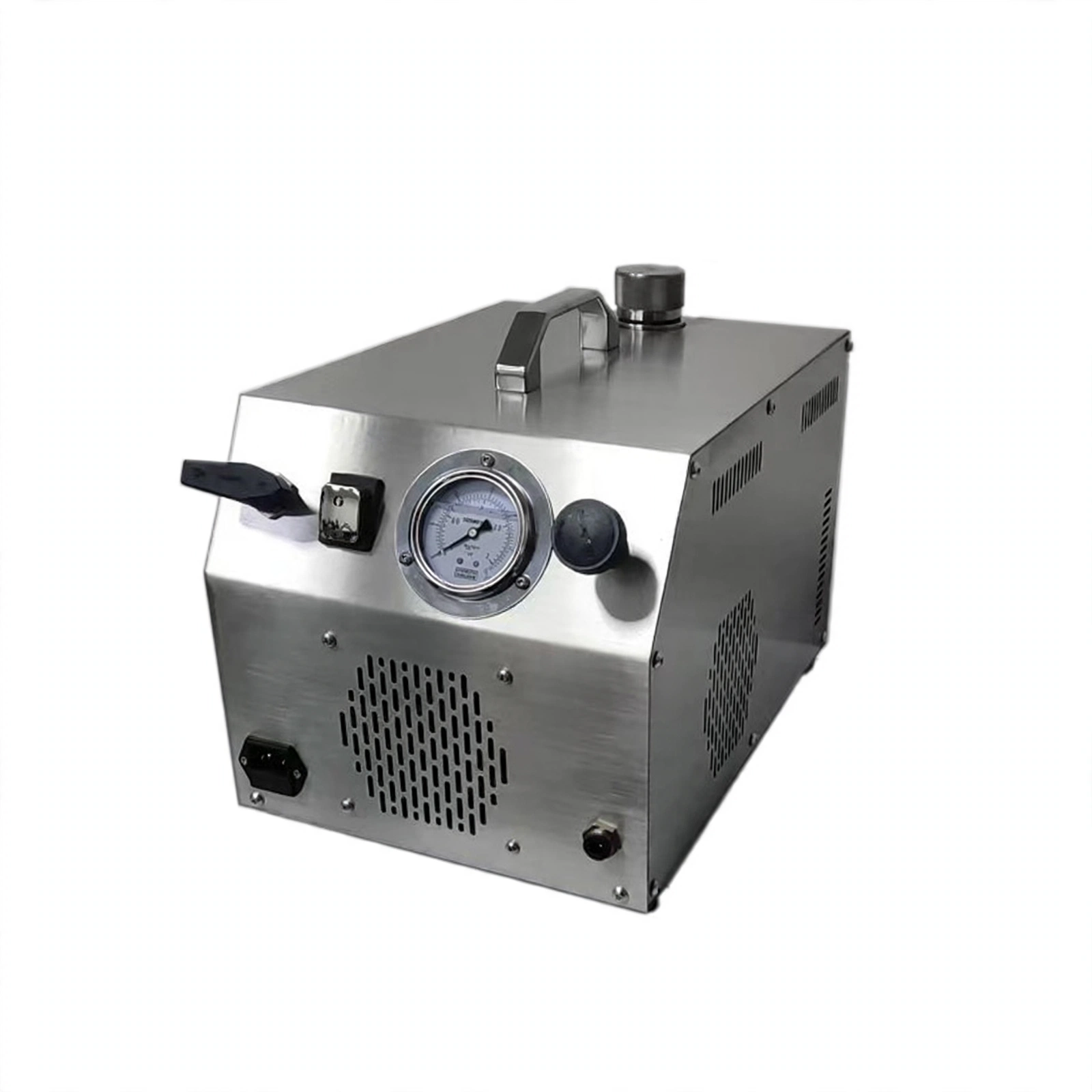

Aerosol Generator-Cold Type BAG-6D

Model BAG-6D

The enclosure of BAG-6D aerosol generator is made of stainless steel, the regulating valve and the transfer valve are also made of stainless steel, and the pressure gauge is an oil-filled anti-seismic pressure gauge. The device is the lastest aerosol generator with built-in Oil-less Air Compressor, no need connect external air supply (also can be connected to an external air supply). The PAO or DOP is atomized through 2pcs or 6pcs Laskin Nozzles and generate high concentration aerosol.

Net weight
27kg
Dimensions
260*240*385mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

Pharmaceutical industry filter leak detection (clean room, laminar flow table, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, HEPA, ULPA, negative pressure filter device, operating room).

Technical Parameters:

Model BAG-6D
Available Flow Range 50~2000cfm (84-3400 m3/h)

Concentration

 10ug/L: Flow rate 2000cfm(Approx 3400 m3/h)
100ug/L: Flow rate 200cfm(Approx340 m3/h)
Type Of Particles PAO, DEHS, DOP, Polydispersed particles
Qty. of Laskin-Nozzles 2 Pcs or 6 Pcs
Power Supply Build-in Oil-less Air Compressor
Power Supply AC220, 50/60Hz (Standard);

AC110V, 60Hz (Optional, External transformer)
External Size(W*D*H) 260*240*385mm
Net Weight 27kg
Packed Size(W*D*H) 440*580*430mm
Gross Weight 30.5kg

When the pressure is 20psi（0.14Mpa）, when do not recommend use DOP.

The details

Specifications

Model
BAG-6D
Available Flow Range
50~2000cfm (84-3400 m3/h)
Concentration
10ug/L: Flow rate 2000cfm(Approx 3400 m3/h)
Concentration
100ug/L: Flow rate 200cfm(Approx340 m3/h)
Type Of Particles
PAO, DEHS, DOP, Polydispersed particles
Qty. of Laskin-Nozzles
2 Pcs or 6 Pcs
Power Supply
Build-in Oil-less Air Compressor
Power Supply
AC220, 50/60Hz (Standard);AC110V, 60Hz (Optional, External transformer)
External Size(W*D*H)
260*240*385mm
Net Weight
27kg
Packed Size(W*D*H)
440*580*430mm
Gross Weight
30.5kg
