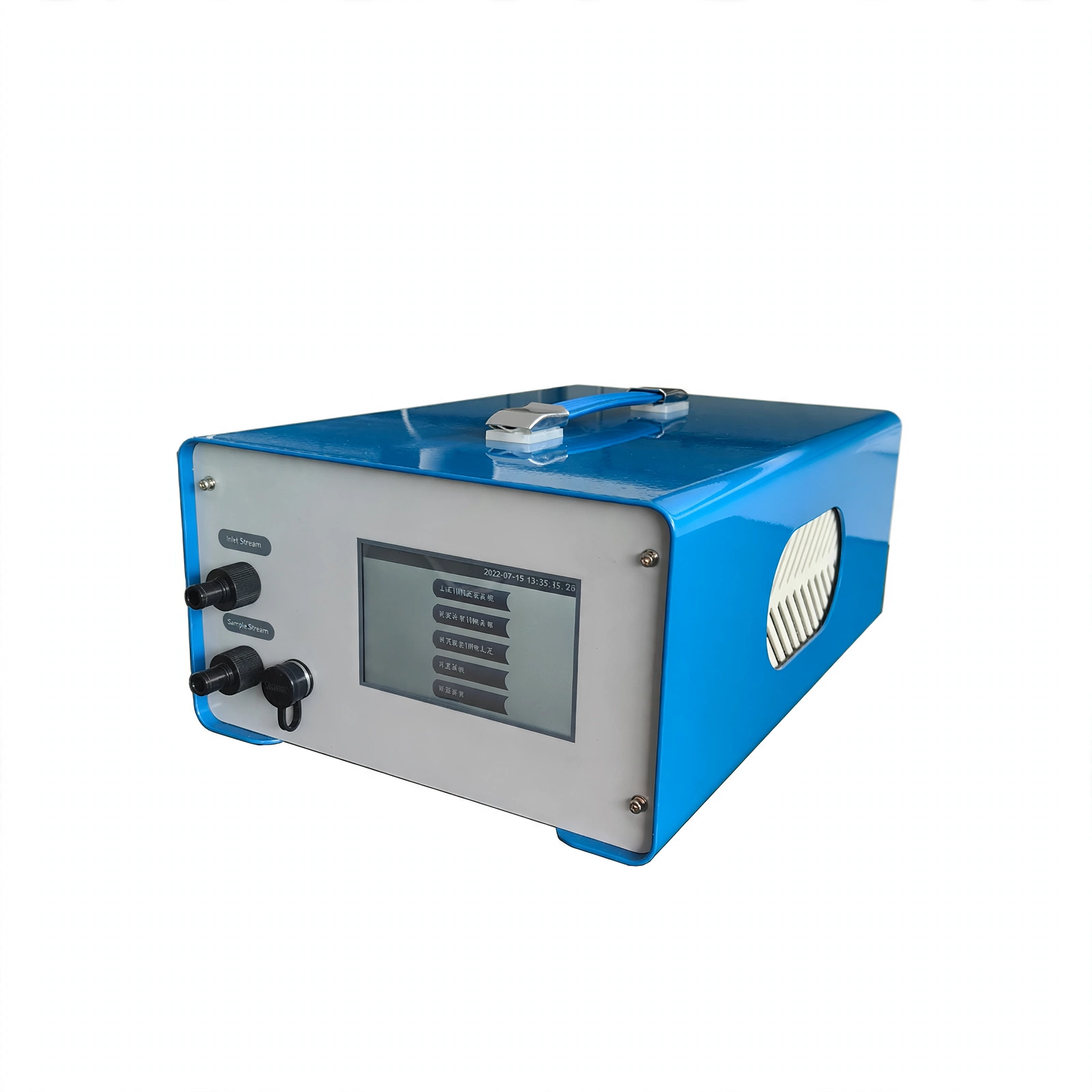

Aerosol Photometer BAP-350

Model BAP-350

Aerosol Photometer is a professional test instrument to test the leakage of HEPA, designed on the base of light scattering principle, displays real-time leakage rate by detecting aerosol concentrations of upstream and downstream. Applicable for testing clean rooms, laminar flow benches, Biological safety cabinet, glove boxes, HEPA vacuum cleaners, HVAC systems, HEPA filters, ULPA filters, negative pressure filtration units, surgical suites, nuclear filter banks, collective protection filters, etc.

Net weight
9.8kg /0.5kg
Dimensions
258*178*360mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Applications：

HEPA validation, Electronics industry, Medical operating room, Cleanroom, Food processes and Scientific experiments, Equipment certification, Equipment Monitoring, Biological safety cabinet, Clean bench

, Semiconductor Industry.

Features：

1. Compact size, easy to carry.

2. Main body adopts 5-inch color touch screen, more convenient operation, faster data processing.

3. Directly display of leakage rate and pump sampling speed.

4. Portable scanning probe, 3.5-inch color display, one-button operation, synchronous display with host screen, convenient for users to saw the test results.

5. Automatically switch upstream and downstream.

6. To make sure data reliable, stable, we use high quality pump and light-source.

Technical Parameters:

Model

BAP-350

Measuring Scope

0.0001%~100.0% color LCD screen display

Dynamic Range

0mg/ m3~120mg/m3

Sensitivity

1% of readings(0.01% to100%)

Reproducibility

0.5% of readings(0.01% to 100%)

Flow Rate

1cfm(28.3L/min) ±5%

Zero Reset

Zero reset at start up

Alarm

User selectable audible, visual alarms model when the user defined set point is exceeded

Report

Continuous/Storage(6000 data)/Print modes

Reagent

PAO, DOP

Standard

NSF49, IEST, ISO14644, EN61010-1:2010, EN61326-1:2006

Power Supply

AC100~240V,50/60Hz

Standard Accessories

Probe, connection device, upstream sampling pipe, power wire, Bluetooth printer

External Size(W*D*H)

258*178*360mm

Net Weight

9.8kg(Main body)/0.5kg(Probe)

Packed Size(W*D*H)

660*540*350mm

Gross Weight

34kg
The details

Specifications

Model
BAP-350
Measuring Scope
0.0001%~100.0% color LCD screen display
Dynamic Range
0mg/ m3~120mg/m3
Sensitivity
1% of readings(0.01% to100%)
Reproducibility
0.5% of readings(0.01% to 100%)
Flow Rate
1cfm(28.3L/min) ±5%
Zero Reset
Zero reset at start up
Alarm
User selectable audible, visual alarms model when the user defined set point is exceeded
Report
Continuous/Storage(6000 data)/Print modes
Reagent
PAO, DOP
Standard
NSF49, IEST, ISO14644, EN61010-1:2010, EN61326-1:2006
Power Supply
AC100~240V,50/60Hz
Standard Accessories
Probe, connection device, upstream sampling pipe, power wire, Bluetooth printer
External Size(W*D*H)
258*178*360mm
Net Weight
9.8kg(Main body)/0.5kg(Probe)
Packed Size(W*D*H)
660*540*350mm
Gross Weight
34kg
