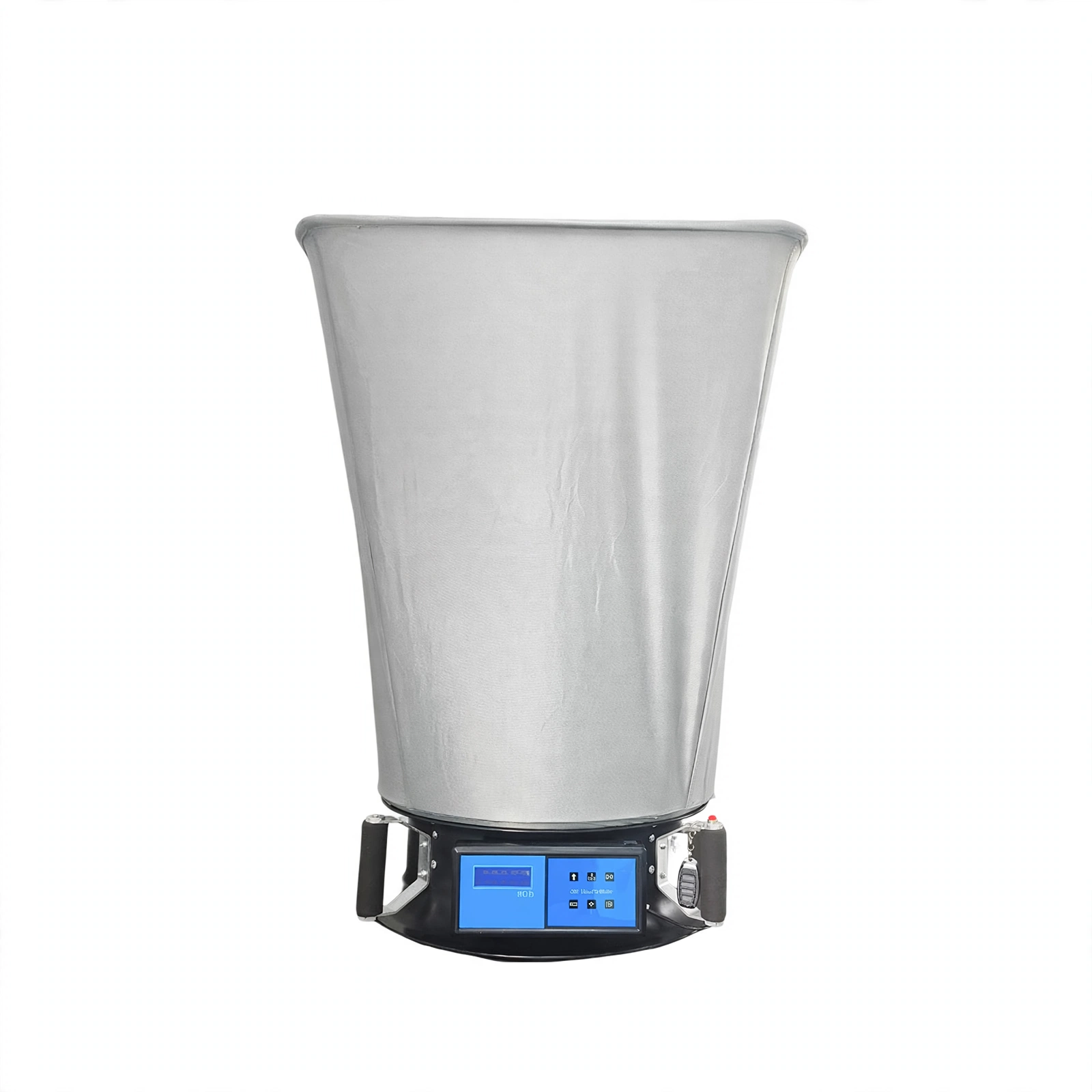

Air Volume Meter – BK-AVM-1、BK-AVM-1S

Model BK-AVM-1、BK-AVM-1S

Air volume meters are designed for measuring air volume, temperature and humidity in HVAC ducts, HEPA outlets, FFUs, and laminar flow systems. They determine total room air volume for calculating air changes, while interchangeable hood sizes accommodate all types of supply and exhaust duct terminals.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. BK-AVM-1: Push-button LCD screen, BK-AVM-1S: LCD touch screen.

2. BK-AVM-1: Nylon windproof fabric, BK-AVM-1S: Polyester fiber-specific fabric.

3. A tripod is standard with the BK-AVM-1S but optional for the BK-AVM-1.

Notice: Do not measure corrosive gases, gases containing metal particles, and gases containing large particles and high concentration of dust.

Technical Parameters:

Model

 BK-AVM-1 BK-AVM-1S

Air Volume

 Range

100~3500m³/h
Accuracy

±5%(F•S)
Resolution

1m³/h

Temp. Measurement

 Range / 0~60℃
Accuracy / ±0.5℃
Resolution / 0.1℃

Humidity Measurement

 Range / 0~100%RH
Accuracy / ±0.1%RH
Resolution / 0.1%RH

Power Supply

 DC

8.4V

 9V
AC

100~240V, 50/60Hz

Storage

 Up to 1000 test results Up to 5000 test results

Standard Printer

Bluetooth printer

Operating Environment

Temperature: 5~35℃

Relative Humidity: 30~70%RH

Storage Environment

Temperature: -30~45℃

Relative Humidity: 0~70%RH

Air Flow Hood

Standard: 570*570mm, 830*830mm

Package Size(W*D*H)

650*650*200mm

 650*650*200mm; 990*100*100mm

Gross Weight

12kg

 11kg; 3kg
