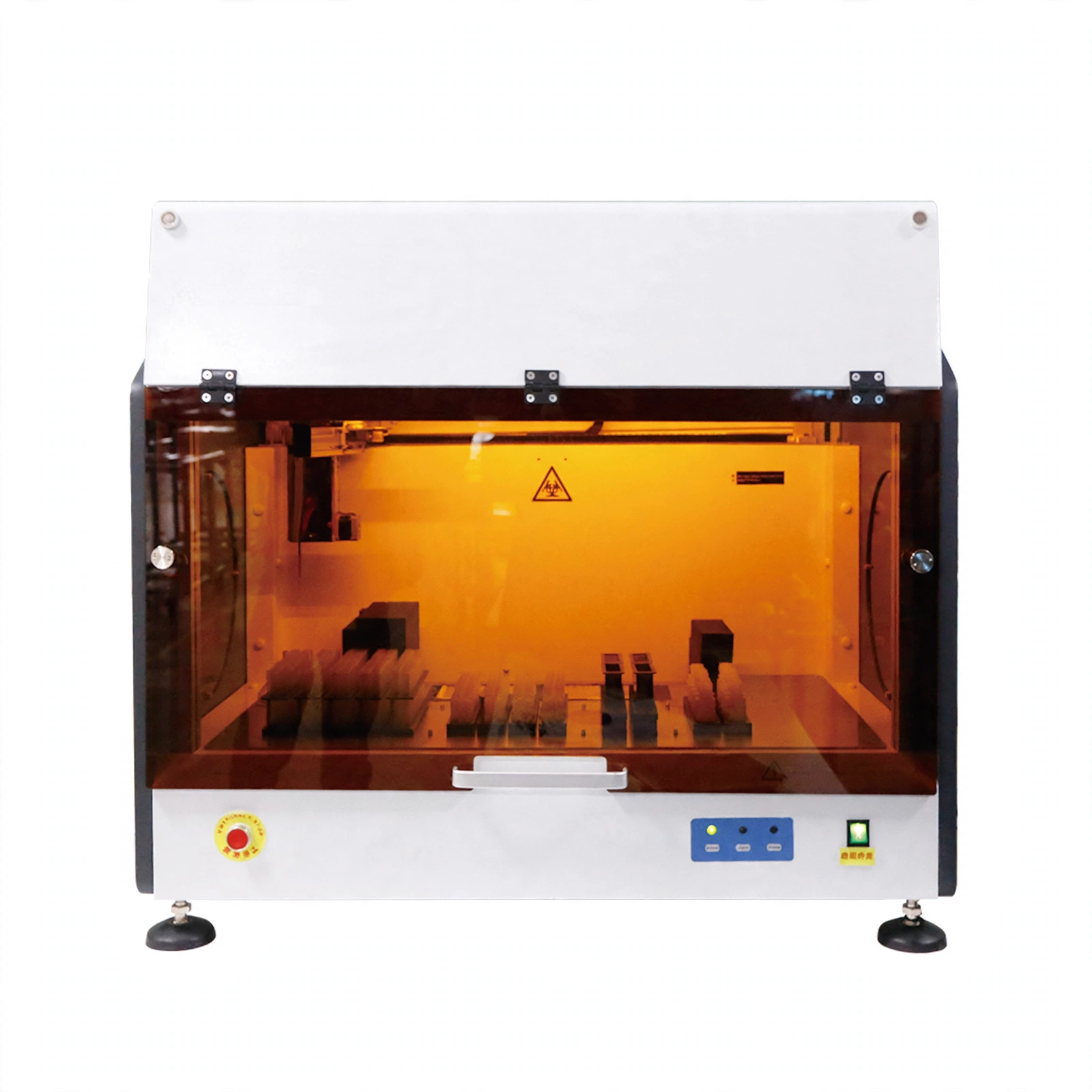

The auto elisa processor is an analytical instrument used in the field of hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 1 robotic arm, 1 pipetting probe(10~1000μl).
2. 2 units 96 well microplates(independent incubating).
3. 1 unit reader&washer(auto reading and washing).
Technical Parameters:
| Model |
1000 |
|
|
Sample Unit |
Sample Racks | Standard 192 sample positions(expandable, up to 384) |
| Pipetting | 10~1000μl | |
| Dispensing System | 1 aspirating-dispensing probe(X-Y-Z movement) | |
|
Reagent Unit |
Reagent Racks | Universal reagent position: Standard 6 universal reagent positions(expandable, up to 32);
Original reagent bottle: Standard 20 reagent bottles positions(expandable, up to 80) |
| Pipetting Range | 10~1000μl, 1μl stepping | |
| Pipetting Precision | (100μl) CV≤1.0% | |
| Dispensing Time | 5 minutes to whole 96 well microplates | |
|
Incubation Unit |
Incubation | 2 independent incubators |
| Temperature Range | RT to 45°C | |
| Temperature Accuracy | ±0.5°C | |
|
Washing Unit |
Washing Probes | Two line 8-nozzle manifolds |
| Wash Containers | 2 wash buffers 2L, 1 distilled water, 1 waste water | |
| Washing Residual | ≤2μl/well | |
|
Reading Unit |
Reading Channels | 8 independent photometric channels, mono and dichromatic reading |
| Absorbance | 0.0~4.0OD | |
| Spectral Range | 400~750nm | |
| Optical Filters | 2 standard filters(450, 630nm);
2 more on request(405nm/450nm/492nm/630nm) |
|
|
Data Management |
Software | Windows 7/10 |
| LIS System | Bi-direction, support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
|
Working Conditions |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W |
| Temperature | 10~30℃ | |
| Humidity | 40%~70% | |
|
Size&Weight |
External Size(W*D*H) | 935*665*860mm |
| Net Weight | 112kg | |
| Package Size(W*D*H) | 1115*920*1398mm | |
| Gross Weight | 180kg | |
Ask our team for the full specification sheet for this model.
