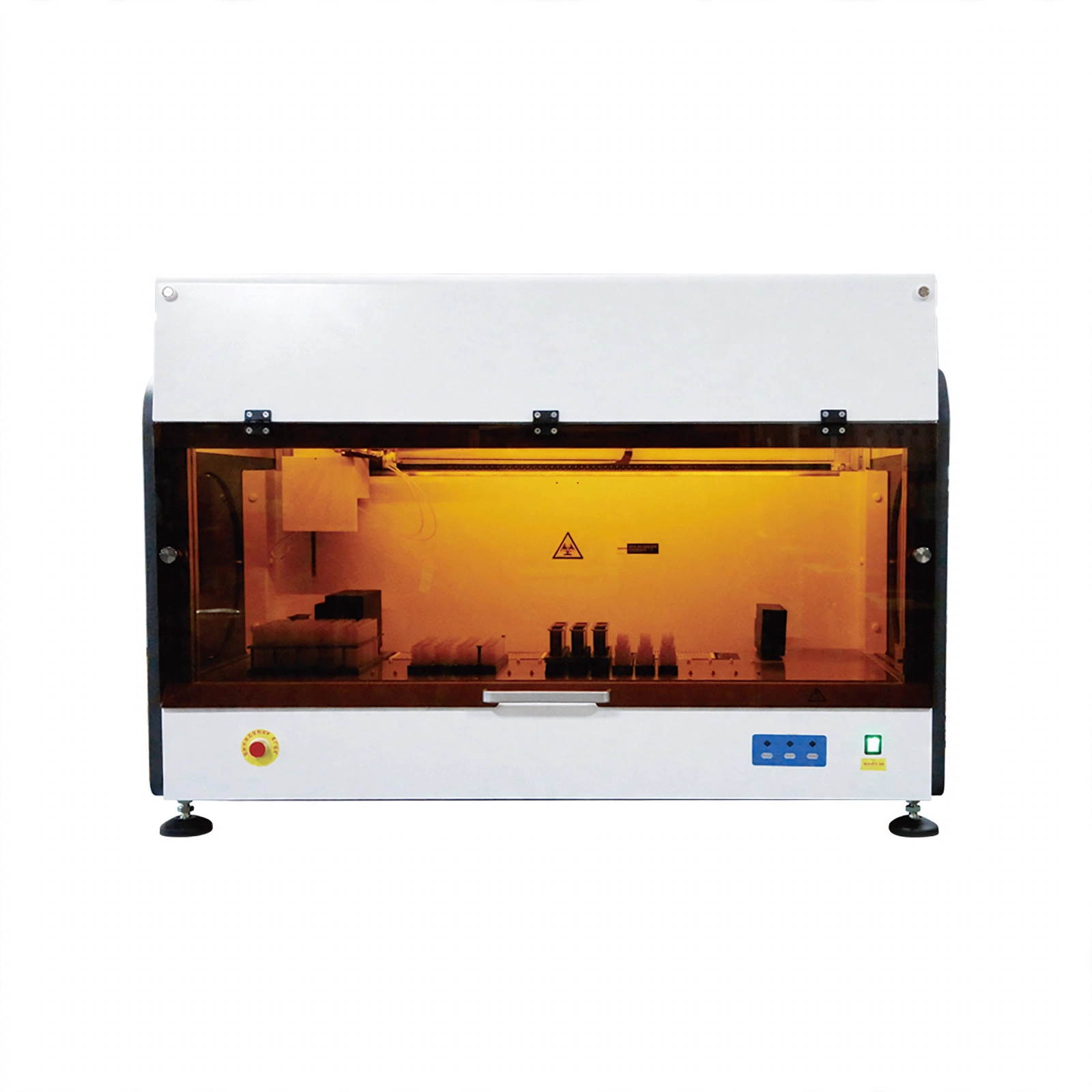

The auto elisa processor is an analytical instrument used in the field of hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 1 robotic arm, 2 pipetting probes(10~1000μl).
2. 4 units 96 well microplates(independent incubating).
3. 1 unit reader&washer(auto reading and washing).
Technical Parameters:
| Model |
2000 |
|
|
Sample Unit |
Sample Racks | Standard 192 sample positions(expandable, up to 552) |
| Pipetting | 10~1000μl | |
| Dispensing System | 2 aspirating and dispensing probe( X-Y-Z movement) | |
|
Reagent Unit |
Reagent Position | 23 reagent racks, editable |
| Pipetting Range | 10~1000μl, 1μl stepping | |
| Pipetting Precision | (100μl)CV≤1% | |
|
Washing Unit |
Dispensing Time | 4 minutes to whole 96 to microplates |
| Washing Probes | Two line 8-nozzle manifolds | |
| Wash Containers | Cleaning fluid(15L), waste water(25L), Buffer 1(5L), Buffer 2(2L),
Buffer 3(2L), Buffer 4(2L), with liquid level-sensing, liquid shortage and full alarm |
|
| Waste Containers | 25L with waste full sensor | |
| Washing Residual | <2μl | |
|
Reading Unit |
Reading Channels | 8 independent photometric channels, mono anddichromatic reading |
| Absorbance | 0.0~3.0OD | |
| Spectral Range | 400~700nm | |
| Optical Filters | 2 standard filters(450, 630nm); 2 more on request (405nm/450nm/492nm/630nm) | |
| Reading Accuracy | ±1% from 0~1.5OD, ±2% from 1.5~3.0OD | |
|
Incubation Unit |
Incubators | 4 independent units |
| Temperature Range | RT to 45℃ | |
| Temperature Accuracy | ±0.5℃ | |
|
Data Management |
Software System | Above Windows 7 system |
| LIS System | Bi-direction, support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
|
Working Conditions |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W |
| Temperature | 10~30℃ | |
| Humidity | 30%~80% | |
|
Size&Weight |
External Size(W*D*H) | 1235*705*875mm |
| Net Weight | 146kg | |
| Package Size(W*D*H) | 1380*860*1415mm | |
| Gross Weight | 220kg | |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

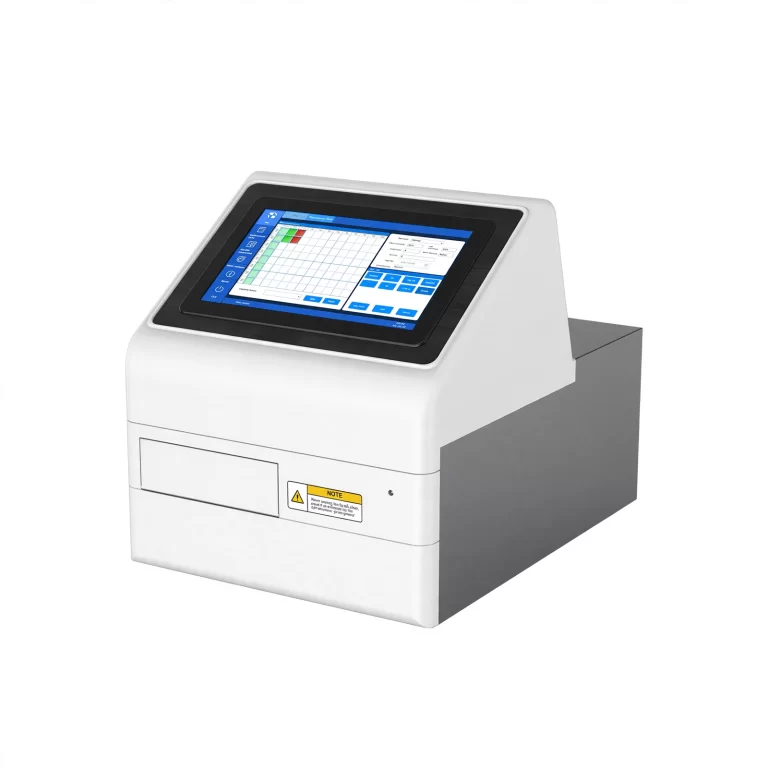

Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields.

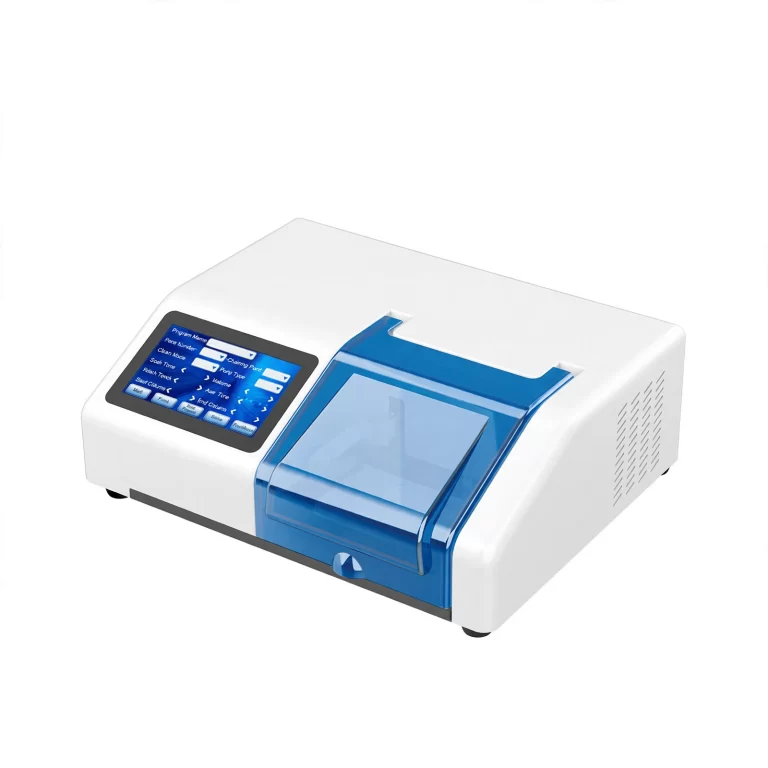

The microplate washer is a medical device specially used for cleaning the microplate, and it is generally used in conjunction with the microplate reader. It is mainly used to clean some residues after the detection of…

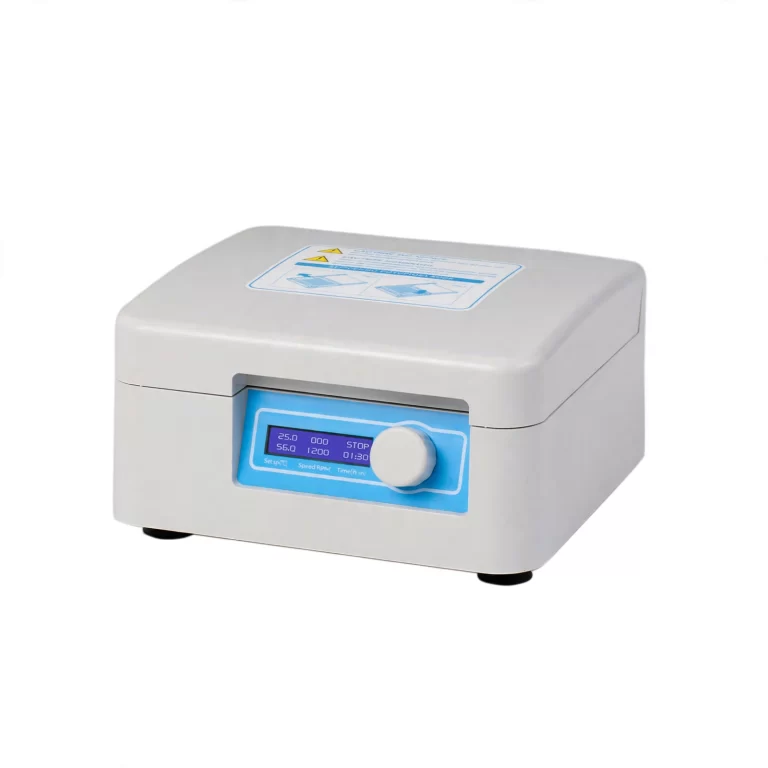

It is with technique of brushless DC motor and PID intelligent temperature control. Mainly used for shaking and cultivation in Elisa plates (96/384 wells) or 96 wells tissue culture plates.

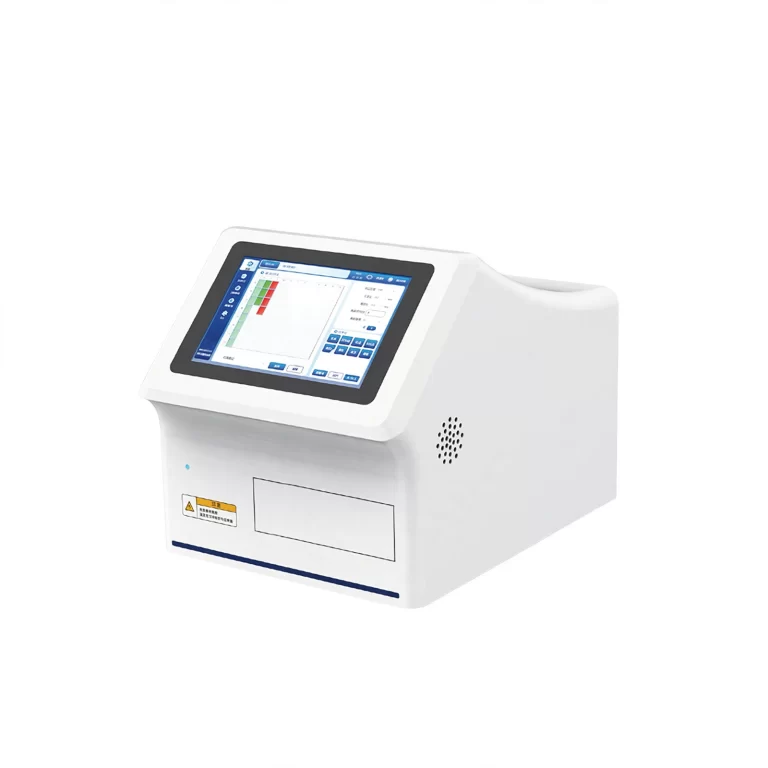

Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields.
