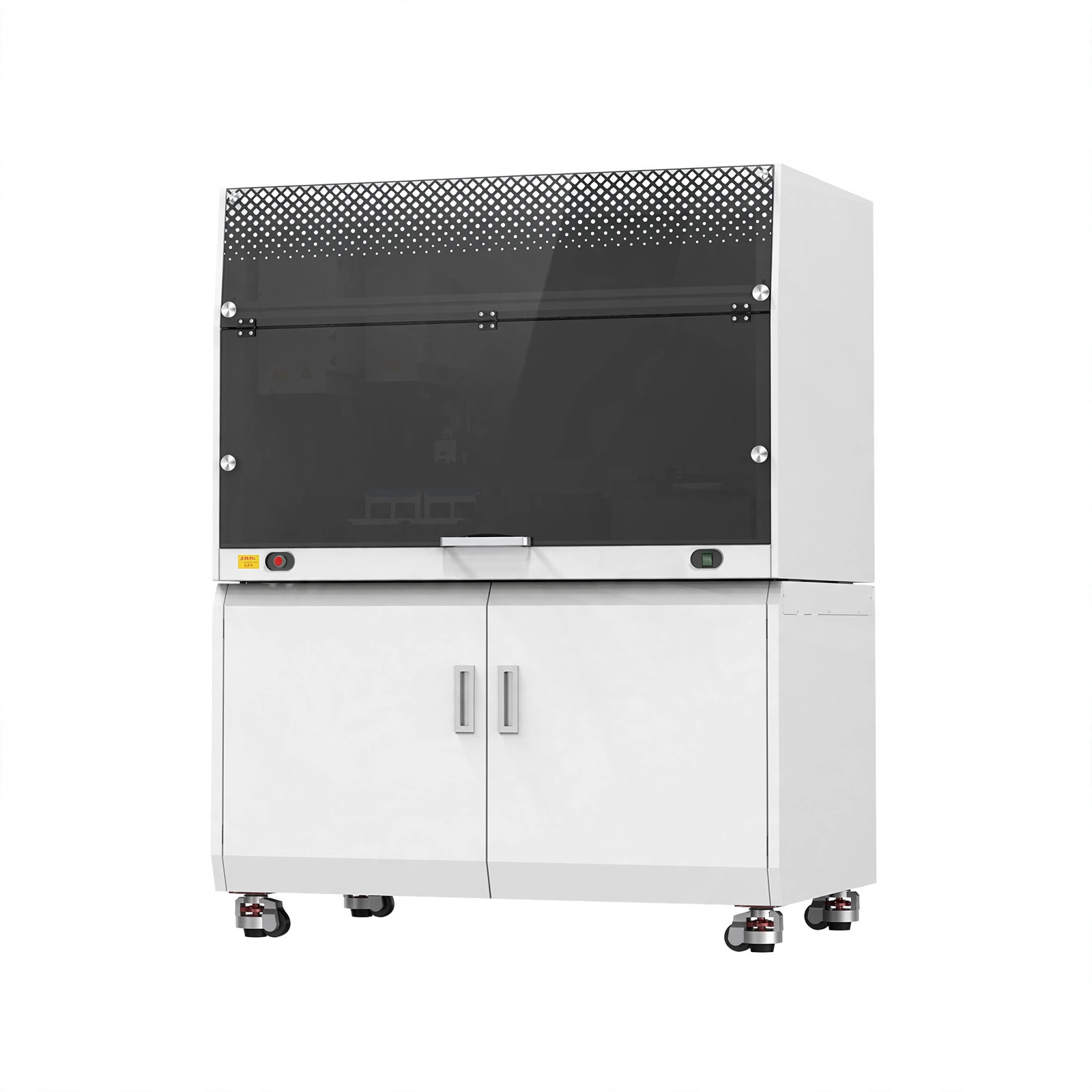

Auto ELISA Processor 2001 is a fully automaticdetection equipment that integrates sample addition,incubation, shaking, washing, and reading. lt is widely usedin hospital laboratories, disease prevention and controlcenters, blood centers, and blood banks, animal and plantinspection and quarantine institutions, scientific researchinstitutions, university laboratories and other places.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Adopt the principle of pressure type liquid detection.
2. With TIP detection, clot detection function.
3. High-precision pipetting.
4. Position sensing, real-time monitoring of gripper status.
5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes.
6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other.
Technical Parameters:
| Model |
2001 |
|
|
Sample&Reagent Unit |
Sample Racks | 6*20 push-pull sample rack with detection |
| Sample Channel | 2 channels | |
| Liquid Level Detection | Air pressure level detection, clot detection function | |
| Tip | 1000μl, 3 tip racks | |
| Pipetting | 10μl~1000μl | |
| Pipetting Precision | 100μl: CV≤1%, Accuracy≤2.5%
1000μl: CV≤0.5%, Accuracy≤1% |
|
| Reagent Position | 4 reagent racks, reagent tanks with detection | |
|
Washing Unit |
Washer | 1 unit |
| Washing Head | 16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery | |
| Injection Uniformity | CV<1.5% | |
| Washing Residual | <1μl | |
|
Reading Unit |
Reading Channels | 8 independent photometric channels |
| Linear Range | 0.000~3.000Abs | |
| Repeatability | CV≤1.0% | |
| Stability | ≤±0.003Abs | |
| Optical Filters | 4 standard filters(405, 450, 492, 630nm);
Total 10 filters positions |
|
| Reading Accuracy | ≤±0.02Abs from 0.0 to 1.0OD
≤±0.03Abs from 1.0 to 2.0OD |
|
| Sensitivity | ≥0.01mg/L | |
| Channel Difference | ≤0.02Abs | |
|
Incubation Unit |
Incubators | 8 shaking incubators |
| Cover Positions | 1(8 covers) | |
| Heating Method | Dry heating with cover | |
| Shaking Function | Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm | |
| Temperature Range | RT to 60 °C | |
| Temperature Uniformity | 0.5℃ | |
| Temperature Fluctuation | ±0.5℃ | |
|
Data Management |
Software | Above Windows 7 system |
| LIS System | Bi-direction, support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
| Built-in Scanner | Optional | |
|
Other Function |
Biosafety Protection | Optional (Negative pressure working zone, HEPA filter) |
| Disinfection | UV lamp | |
| Lighting | LED | |
| IAP Function | Firmware can be upgraded online at any time | |
|
Working Condition |
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz( Optional) |
| Temperature | 10~40℃ | |
| Humidity | 30~80% | |
|
Size&Weight |
External Size(W*D*H) | Machine: 1273*750*1650mm
Base Stand: 1273*750*777mm |
| Net Weight | Machine: 226kg
Base Stand: 98kg |
|
| Package Size(W*D*H)mm | Machine: 1445*920*1130mm
Base Stand: 1445*920*1005mm Accessories: 1065*895*510mm |
|
| Gross Weight(kg) | Machine: 300kg
Base Stand: 172kg Accessories: 83kg |
|
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
