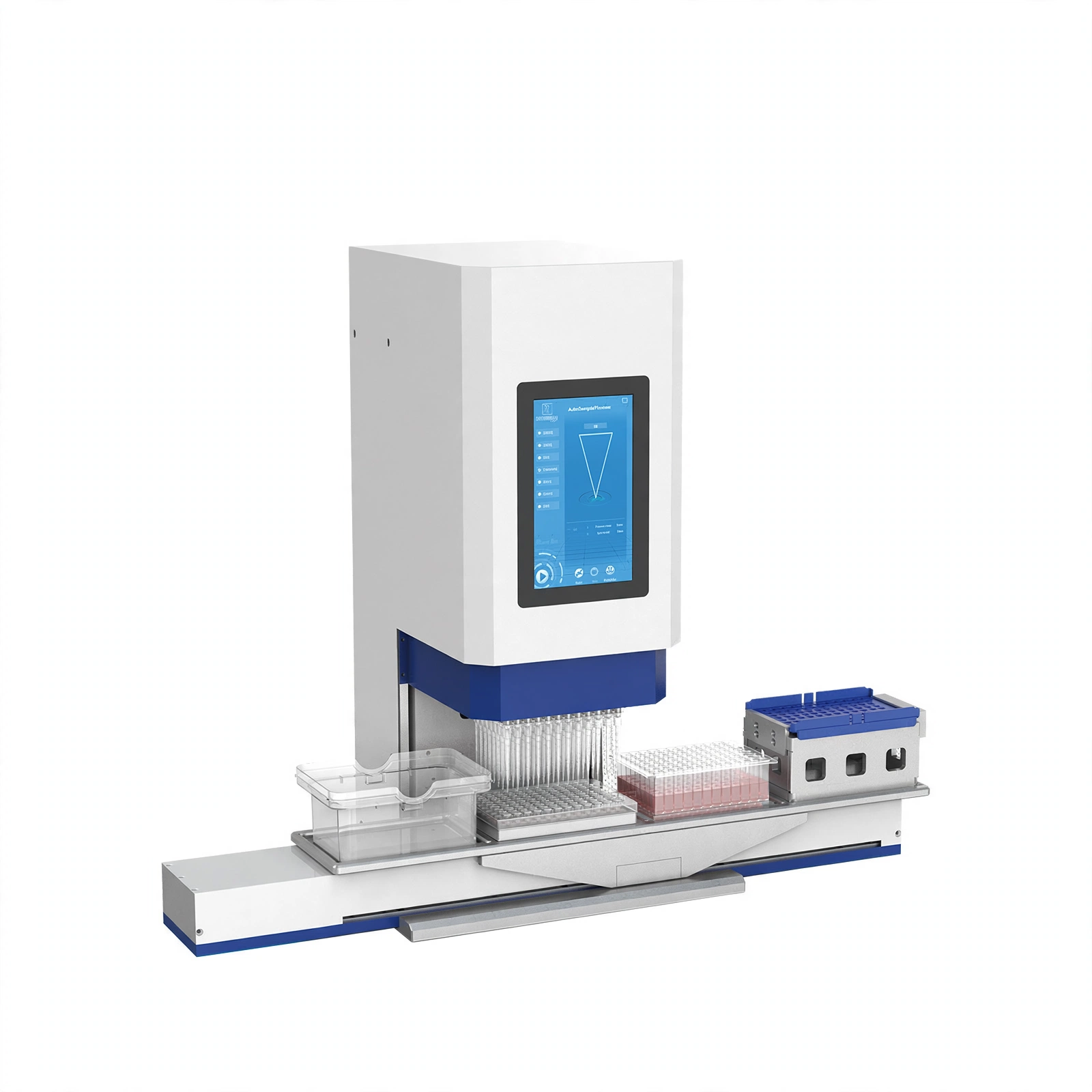

Automated Liquid Handler

Model BK-ASP96

The Automated Liquid Handler is an intelligent, high-precision robotic system designed to automate the process of liquid handling in laboratories.

Power
100VA
Dimensions
635*270*555mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Graphical software interface, easy to understand and easy to edit the instrument built-in user management system, convenient to manage the experimental program.

2. 96 channels, 5~200μl liquid volume, perfect to match your different needs.

3. Compatible with most of the SBS standard experimental consumables, sample tube, suction box, microplate, suction tank, liquid injection tank, etc.

4. Ultra-compact and lightweight design for easy movement in the lab and into other equipment.

5. Set a variety of pipetting functions: liquid suction, liquid separation, blowing sample, mixing, dilution.

Technical Parameters:

Model BK-ASP96
Plate Position 4pcs
Throughput 96
Pipetting Principle Replacement of air
Pipetting Volume 5~200μl
Tips 50μl, 200μl tips to choose
Plate Specification 96-well microplate, 96-well deep hole plate, PCR plate, 8-trip tube, suction tank, injection tank
Function Aspirate, dispense, blow, mix, dilute
Display 7-inch touch screen
Power 100VA
Power Supply 100~240V, 50/60Hz
External Size 635*270*555mm
Packing Size 760*410*690mm
Gross Weight 42kg
The details

Specifications

Model
BK-ASP96
Plate Position
4pcs
Throughput
96
Pipetting Principle
Replacement of air
Pipetting Volume
5~200μl
Tips
50μl, 200μl tips to choose
Plate Specification
96-well microplate, 96-well deep hole plate, PCR plate, 8-trip tube, suction tank, injection tank
Function
Aspirate, dispense, blow, mix, dilute
Display
7-inch touch screen
Power
100VA
Power Supply
100~240V, 50/60Hz
External Size
635*270*555mm
Packing Size
760*410*690mm
Gross Weight
42kg
