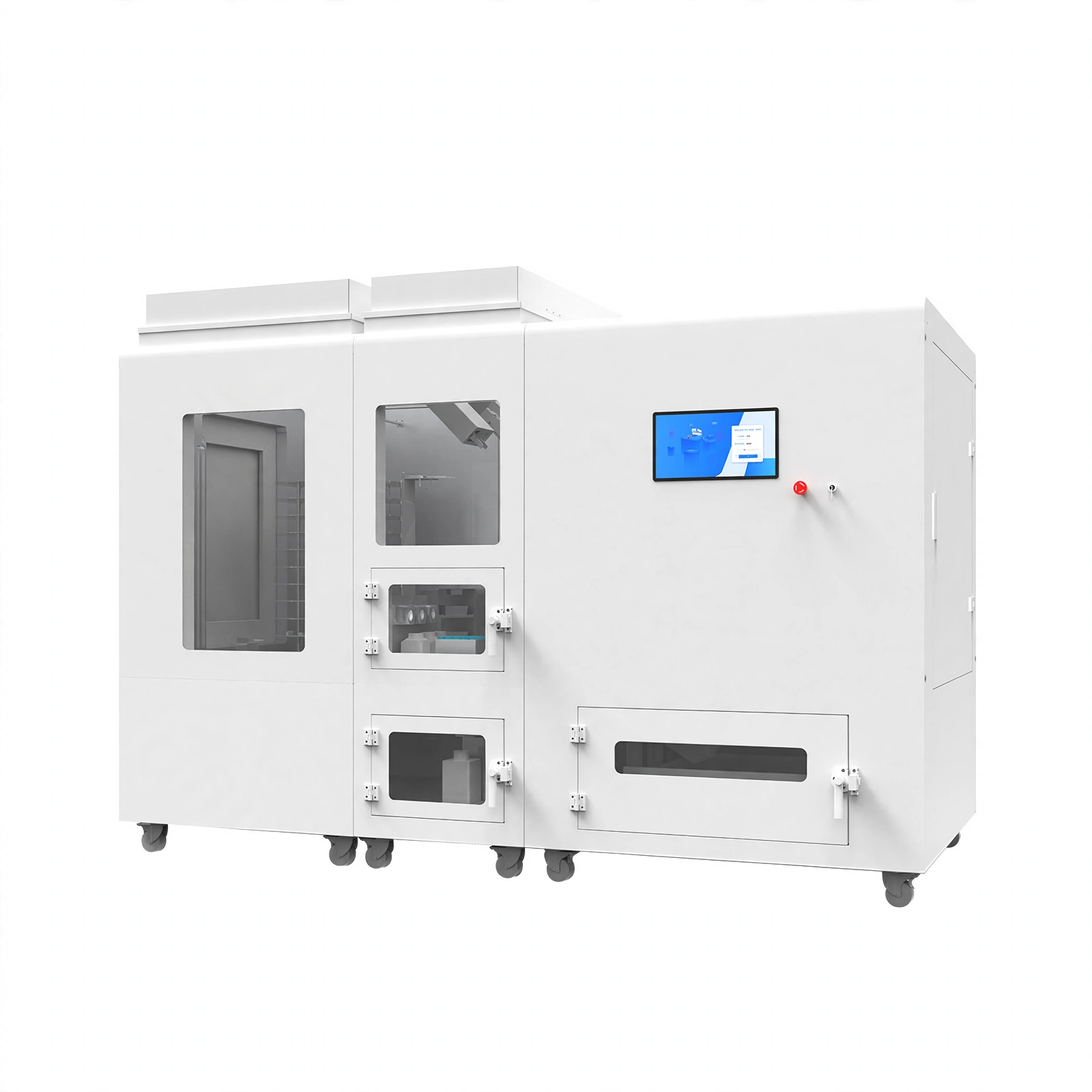

Automatic Cell Culture System

Model AutoCE-001

The automatic cell culture system provides a clean, closed, and automated environment to achieve cell inoculation, observation, medium replacement, subculture, cultivation, and collection. It can complete cell separation and extraction, amplification and formulation, storage and resuscitation, etc., reducing traditional human errors and improving operational efficiency.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Aseptic Environment: The closed chamber is equipped with FFU(Fan Filter Unit) high-efficiency filters on the top to ensure a Class A clean environment inside the chamber.

2. Labor Liberation: It realizes automated cell inoculation, observation, medium replacement, subculture, cultivation, separation and extraction, storage, and resuscitation, replacing manual operations.

3. Detachable Three Compartments: Composed of a storage room, an operation room, and a culture room, it is convenient for transportation and assembly.

4. Data Monitoring: The process is intelligent, with visualized storage management and traceable monitoring throughout the entire experimental process.

5. Complete Equipment: It features a large-size display screen, high-definition monitoring, imported robotic arms, a centrifuge, fully automatic microscopic imaging, incubator heating and a CO₂ incubator.

6. Space Saving: The integrated design saves occupied space.

Technical Parameters:

Model

AutoCE-001

Hardware

Display Screen 15.6 inches LCD touch screen
Monitoring 800W high-definition cameras * 2
Disinfection 150W ultraviolet lamp*3
Robotic Arm VS-050, 6-axis
Centrifuge 15ml*8, 3000rpm
Microscope Fully automatic analytical microscopic imaging system
Resuscitation System 37°C
ULPA Purification Efficiency 99.9995%@0.12μm
Empty Bottle Storage Rack 120 culturing positions for T75 culture bottles

CO₂ Incubator

Incubator Volume 220L
Culturing Capacity 84 culturing positions for T75 culture bottles
Temperature Control Range RT~60°C
CO₂ Control Range 0~20%
Humidity ≥90%RH
Disinfection Method 140°C dry heat sterilization

Power Supply

AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer)

Consumption

4KW

External Size(W*D*H)mm

2760*1280*1900

Package Size(W*D*H)mm

Storage room: 1000*1350*2050

Operation room: 660*1350*2050

Culture room: 1300*1350*1950

Net Weight(kg)

1085

Gross Weight(kg)

Storage room: 400

Operation room: 300

Culture room: 550
