Automatic Chemiluminescence Immunoassay System

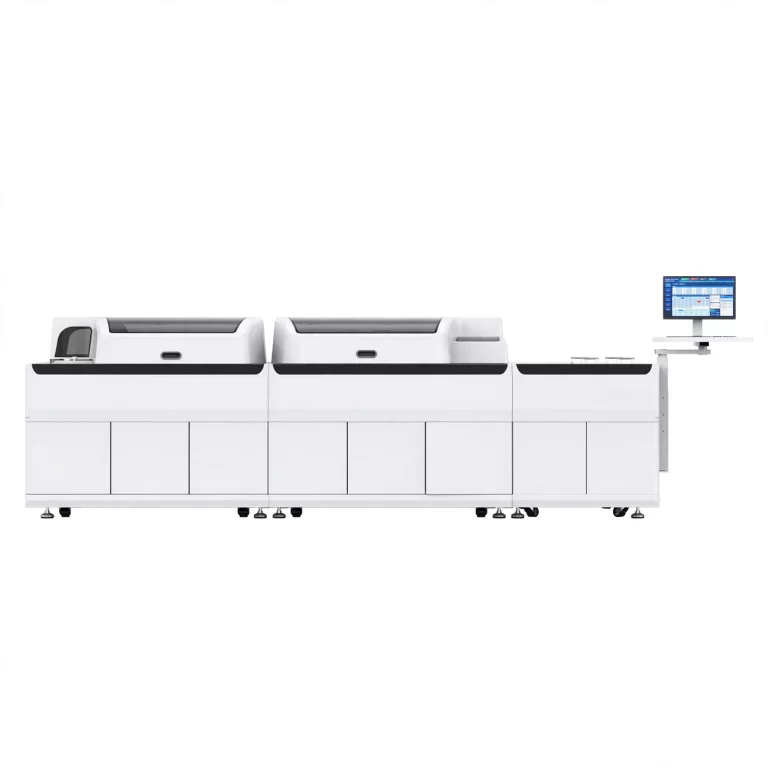

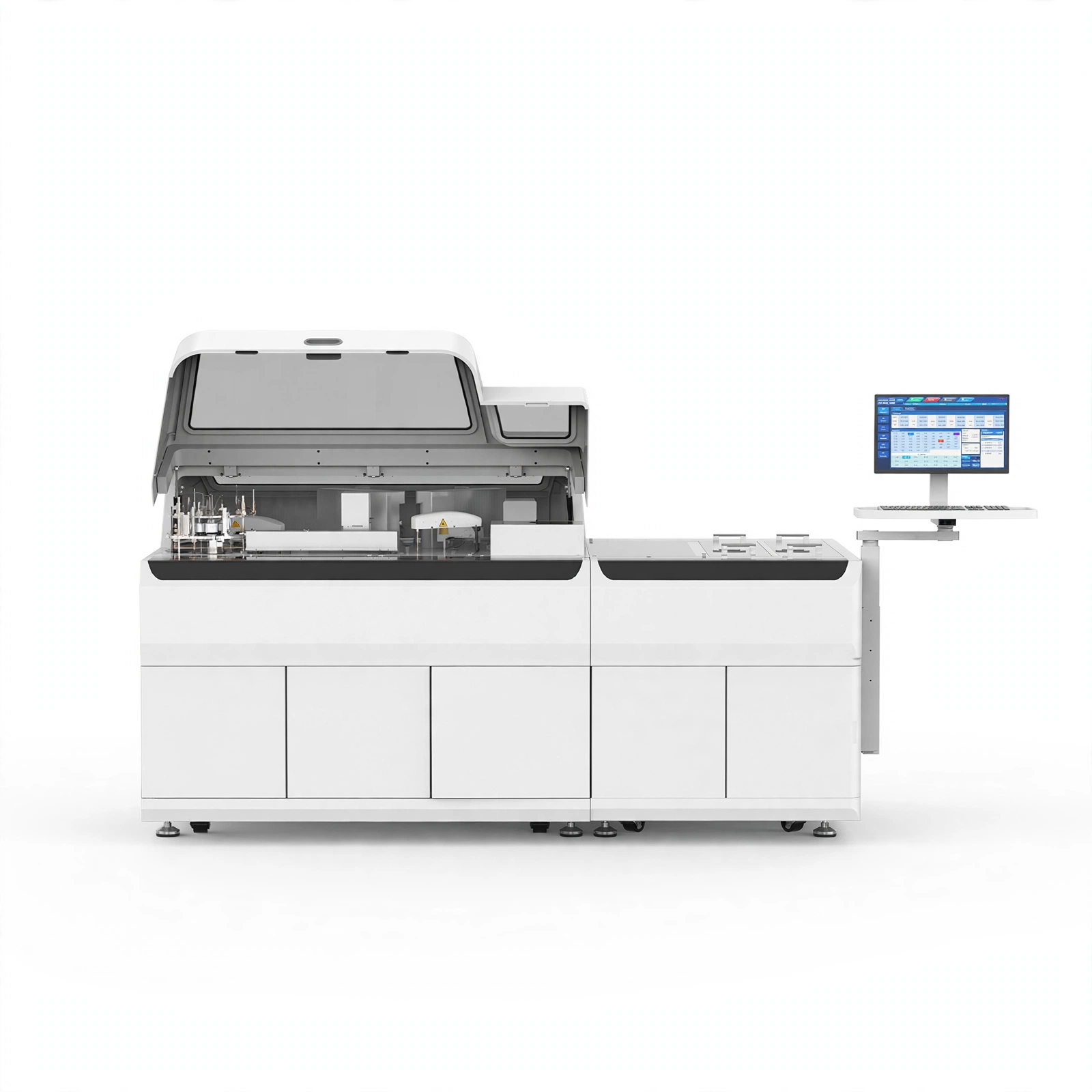

Automatic Chemiluminescence Immunoassay System BKI5800

Model BKI5800

The chemiluminescence immunoassay system uses magnetic particle separation technology, which uses magnetic particles as antibody carriers. These particles can be evenly distributed in the liquid phase reaction system, enabling faster reaction speed and higher efficiency. Using the enzymatic chemiluminescence method, the light signal is more stable. It adopts a new generation of enzymatic substrates, with higher sensitivity and faster luminescence.

Net weight
160kg; 500kg
Dimensions
972*1225*1495mm; 1505…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Innovative Design, Accelerated Detection

Detection speed of 600T/h, first results within 18 minutes. Solid-state direct heating incubation ensures more stable and precise temperature control. Dual-channel design for more efficient sample loading.

2. Intelligent and Convenient for a Better Experience

User-friendly design with a rocker arm display and one-button power on/off. Bulk loading of reaction cups, one-button loading of consumables, dual-bottle substrate backup, and convenient and quick operation. RFID function makes reagent loading even more convenient.

3. Highly Integrated and Stable Performance

Highly integrated design with a small footprint. CV value ≤3%, high precision. Intelligent needle cleaning technology combined with scheduling control technology ensures cleaner cleaning.

4. Compatible with Interconnectivity

Supports 1-4 units for online expansion to meet various testing needs. Equipped with rich interfaces, it supports network functionality and allows for remote upgrades after networking.

Technical Parameter:

Model BKI5800
Throughput 600T/H
Principle Magnetic particle enzymatic chemiluminescence
Modes of Operation Random, batch and STAT
Separation Method Magnetic separation technology
Sample Positions 350pcs(Each position could be used as an emergency position)
Reagent Positions 50pcs(2-8℃ refrigeration)
Incubation Positions 238pcs
Time to 1ˢᵗ Result 18min
Sample Volume 10~200μl
Detection Precision CV≤3%
Carry-over Rate ≤10⁻⁵
Correlation Coefficient r≥0.99
Calibration Type 6/7-point calibration
Software System Comes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management
Interface TCP/IP Network interface
Other Function Sample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection.
Power Supply AC110/220V, 50/60Hz, 1550VA
External Size (W*D*H) 972*1225*1495mm; 1505*1225*1245mm
Net Weight 160kg; 500kg
Package Size (W*D*H) 1410*1350*1170mm; 1685*1410*1460mm
Gross Weight 235kg; 600kg
The details

Specifications

Model
BKI5800
Throughput
600T/H
Principle
Magnetic particle enzymatic chemiluminescence
Modes of Operation
Random, batch and STAT
Separation Method
Magnetic separation technology
Sample Positions
350pcs(Each position could be used as an emergency position)
Reagent Positions
50pcs(2-8℃ refrigeration)
Incubation Positions
238pcs
Time to 1ˢᵗ Result
18min
Sample Volume
10~200μl
Detection Precision
CV≤3%
Carry-over Rate
≤10⁻⁵
Correlation Coefficient
r≥0.99
Calibration Type
6/7-point calibration
Software System
Comes with a screen, windows system; Bi-direction, support HL7 protocol; Intuitive user interface; Intelligent data management
Interface
TCP/IP Network interface
Other Function
Sample barcode scanning, reagent RFID, vertical anti-collision needle, liquid level detection, intelligent alarm, automatic dilution function, automatic retesting, and clot detection.
Power Supply
AC110/220V, 50/60Hz, 1550VA
External Size (W*D*H)
972*1225*1495mm; 1505*1225*1245mm
Net Weight
160kg; 500kg
Package Size (W*D*H)
1410*1350*1170mm; 1685*1410*1460mm
Gross Weight
235kg; 600kg
