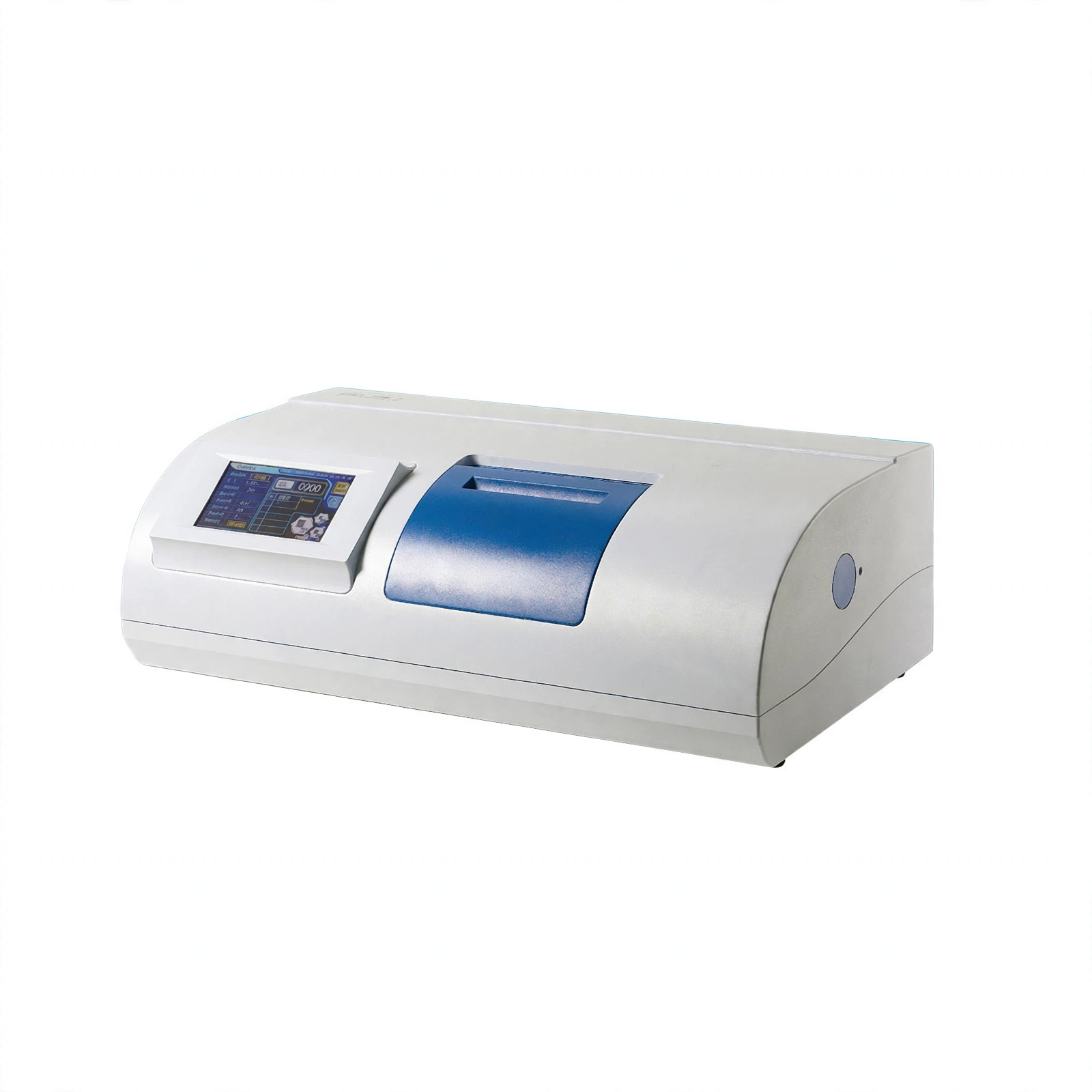

It is a precision instrument for measuring the optical rotation of substances. It analyzes parameters such as the concentration, purity and sugar content of substances by measuring the rotation Angle of polarized light, and is widely used in fields such as food and chemical engineering.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. 7 inch color touch LCD screen.
2. Photoelectric test and microcomputer control.
3. Preheating is not needed.(Only for BK-P1 and BK-P2 Model)
4. Dark-colored sample can be measure.(Only for BK-P1 and BK-P2 Model)
5. Automatic repetition-measurement for 6 times, and calculation of average value and means square root.
6. Sample chamber adopts constant temperature designing in order to reduce the temperature heating influence.
Technical Parameters:
| Model | BK-P1 | BK-P2 |
| Light Source | LED+interference filter | |
| Measuring Range | ±45°(optical rotation) /±120°Z(sugar) | |
| Wavelength | 589nm | |
| Measuring Accuracy | ±0.01°(-15°≤optical rotation≤＋15°) | |
| ±0.02°(optical rotation＜-15°or optical rotation＞＋15°) | ||
| Repeatability | 0.002°(optical rotation) | |
| Sample Transmittance | 1% | |
| Temperature Control Range | / | 15~30℃ |
| Temperature Accuracy | / | ±0.5℃ |
| Test Mode | Optical rotation, specific rotation, concentration, sugar degree | |
| Test Tube | 200mm, 100mm | 200mm, 100mm, 100mm(Constant Temperature tube) |
| Interface | USB&RS232 | |
| Power Supply | AC110/220V, 50/60Hz | |
| External Size(W*D*H) | 710*400*240mm | |
| Package Size(W*D*H) | 820*500*510mm | |
| Gross Weight | 37kg | |
