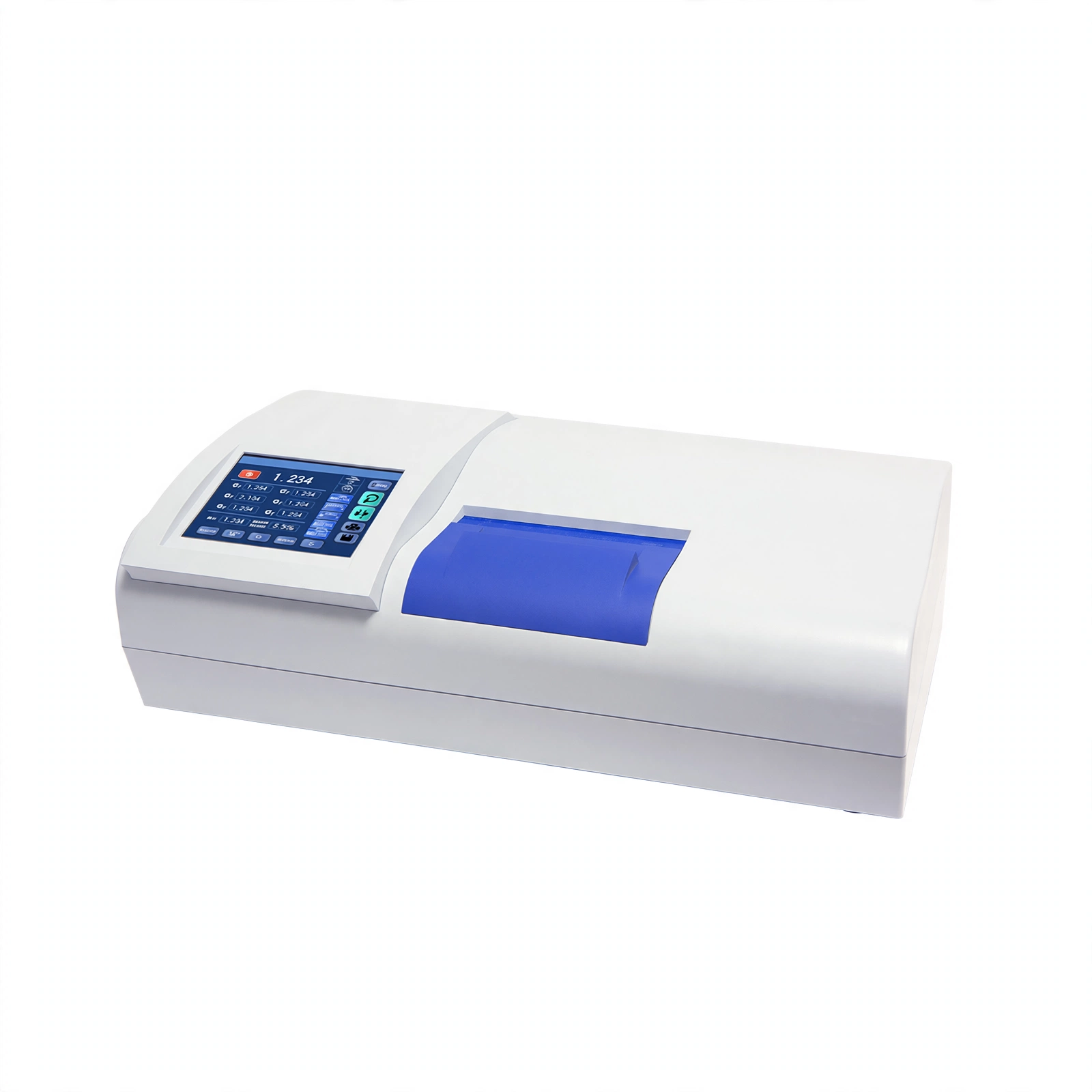

This high speed automatic polarimeter designed for precise optical rotation measurement. This digital polarimeter features advanced temperature control, ensuring accurate and stable results for laboratory applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.
2. LED light source that’s lasts over 100,000 hours.
3. The number of measurements can be set, and the average value can be calculated
4. Equipped with multiple communication interfaces, data can be stored in real-time.
5. Fast and stable temperature control minimizes measuring time.
6. Comply with pharma standards and audit trail function is optional(Only for BK-P533A).
7. Access control(4 grades) and 500 users accounts(Only for BK-P533A).
Technical Parameters:
| Model | BK-P532 | BK-P533A |
| Measuring Mode | Optical rotation, specific rotation, concentration, international sugar scale | Optical rotation, specific rotation, concentration, international sugar scale, user defined |
| Light Source |
LED + precision interference filters |
|
| Wavelength |
589nm(Sodium D spectrum) |
|
| Measuring Range |
±90°(OR) + 259°Z(ISS) |
|
| Calibration Method |
Multi-point automatic calibration |
|
| Resolution |
0.001° |
|
| Accuracy |
±0.004° |
|
| Repeatability |
≤0.002° |
|
| Min. Transmission | 0.1% | 0.05% |
| Response Speed |
8°/s |
|
| Measuring Time |
6 times/26s |
|
| Temp. Control Range |
Peltier temperature control: 10~50°C |
|
| Temp. Accuracy | ±0.2°C | ±0.1°C |
| Display | 8-inch color touch LCD | 10-inch color touch LCD |
| Operating System | / | Android(LIMS-connectable) |
| GMP Regulations | / | Qualified |
| Electronic Signature/Data Traceability | / | Qualified |
| Audit Trail | / | Optional |
| Data Storage | 10,000 sets | 128G |
| Interface | RS232, USB, U disk | RS232, USB, U disk, keyboard, mouse, WiFi, ethernet |
| Standard Accessory |
Test tube: 200mm(Regular); 100mm(Regular); 100mm(Temp. control) |
|
| Optional Accessory | Test tube: 50mm(Regular); 200mm(Temp. control); thermal printer | Test tube: 50mm(Regular); 200mm(Temp. control); thermal printer, dot matrix printer, WiFi printer, audit trail software(FDA) |
| Consumption |
200W |
|
| Power Supply |
AC 110/220V, 50/60Hz |
|
| External Size(W*D*H) |
702*376*240mm |
|
| Package Size(W*D*H) |
860*510*470mm |
|
| Net Weight |
20kg |
|
| Gross Weight |
35kg |
|
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
