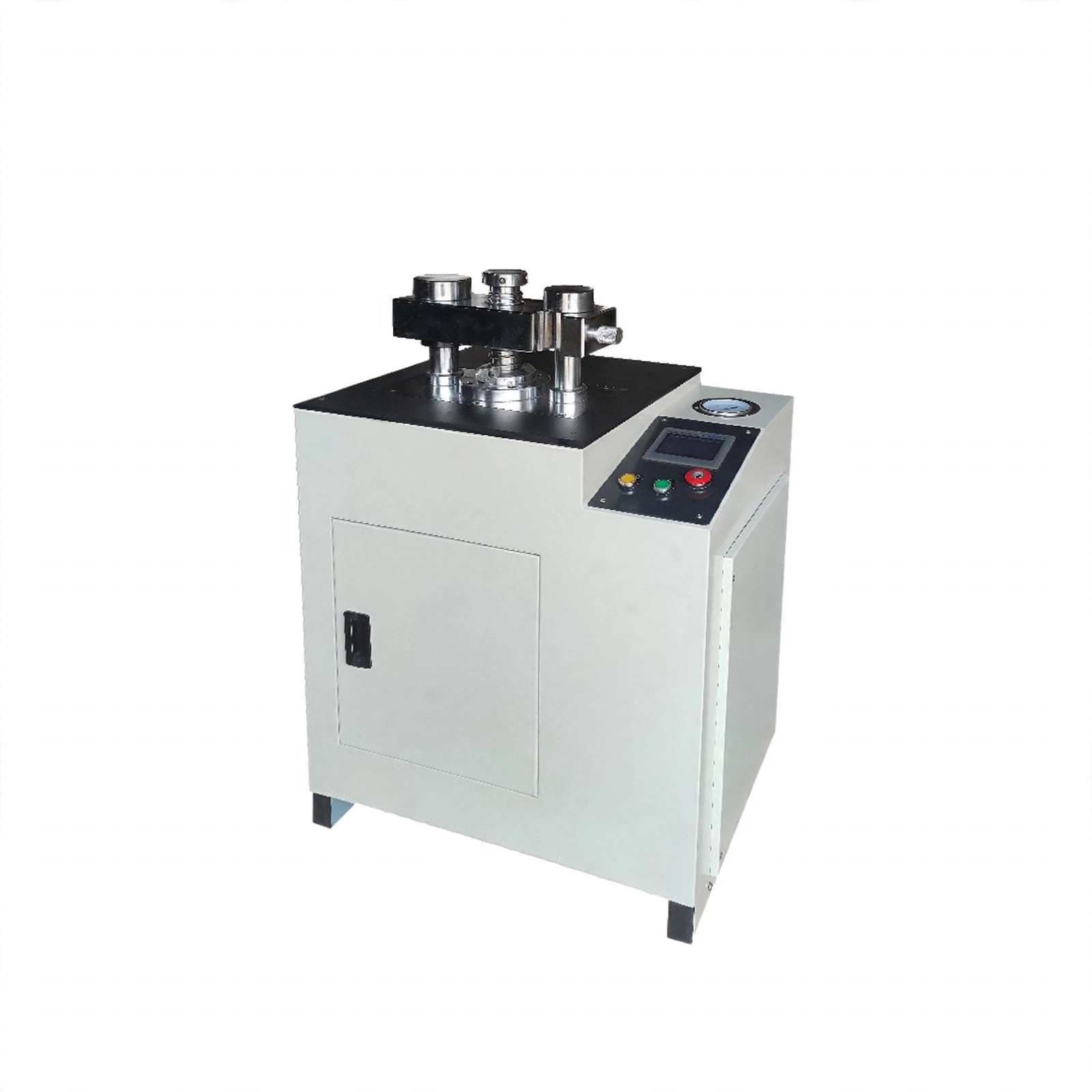

Automatic Pressing Machine BK-APM40

Model BK-APM40 Compact & portable

Mature hydraulic system technology, compact structure and small footprint

Power
1.1KW
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features

1. PLC touch screen controller, simple operation and friendly interface.

2. Automatic design, one-click completion of sample pressing, demolding and resetting.

3. Mature hydraulic system technology, compact structure and small footprint.

Technical Parameters

Model BK-APM40
Control Method Touch screen operation, PLC program control, sensor sensing pressure value
Mold Type (Need to confirm to choose which one in advance) 1. Steel ring mold

The sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*14mm, 47*34*10mm, 51.5*34*10mm

2. Boric acid mold

Outer diameter 40mm, detection surface diameter 34mm

3. Plastic ring mold

The sizes can be selected as follows (outer diameter*inner diameter*height):

40*34*4.5mm (commonly used), 38*32*5mm, 32*28*4mm

29.2*24*4mm, 25.2*20*4mm, 19.2*14*4mm

4. Aluminum cup mold

(outer diameter*inner diameter*height): 39.5*38*8mm
Max Pressure 40T(400kN)
Optional Max Pressure 30T/60T/80T/100T/120T
Holding Time 0～999s adjustable
Internal Spacing of Columns 210mm
Piston Stroke 30mm
Equipment Dimensions 750*520*1150mm
Equipment Weight About 265kg
Power Supply AC 380V±5%, 50Hz, three-phase, external air switch, no plug
Motor Power 1.1KW
Usage Environment Recommended use status: ambient temperature 1～40℃
Packing Size 880*880*1350mm
Gross Weight 325kg
The details

Specifications

Model
BK-APM40
Control Method
Touch screen operation, PLC program control, sensor sensing pressure value
Mold Type (Need to confirm to choose which one in advance)
1. Steel ring moldThe sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*14mm, 47*34*10mm, 51.5*34*10mm2. Boric acid moldOuter diameter 40mm, detection surface diameter 34mm3. Plastic ring moldThe sizes can be selected as follows (outer diameter*inner diameter*height):40*34*4.5mm (commonly used), 38*32*5mm, 32*28*4mm29.2*24*4mm, 25.2*20*4mm, 19.2*14*4mm4. Aluminum cup mold(outer diameter*inner diameter*height): 39.5*38*8mm
Max Pressure
40T(400kN)
Optional Max Pressure
30T/60T/80T/100T/120T
Holding Time
0～999s adjustable
Internal Spacing of Columns
210mm
Piston Stroke
30mm
Equipment Dimensions
750*520*1150mm
Equipment Weight
About 265kg
Power Supply
AC 380V±5%, 50Hz, three-phase, external air switch, no plug
Motor Power
1.1KW
Usage Environment
Recommended use status: ambient temperature 1～40℃
Packing Size
880*880*1350mm
Gross Weight
325kg
