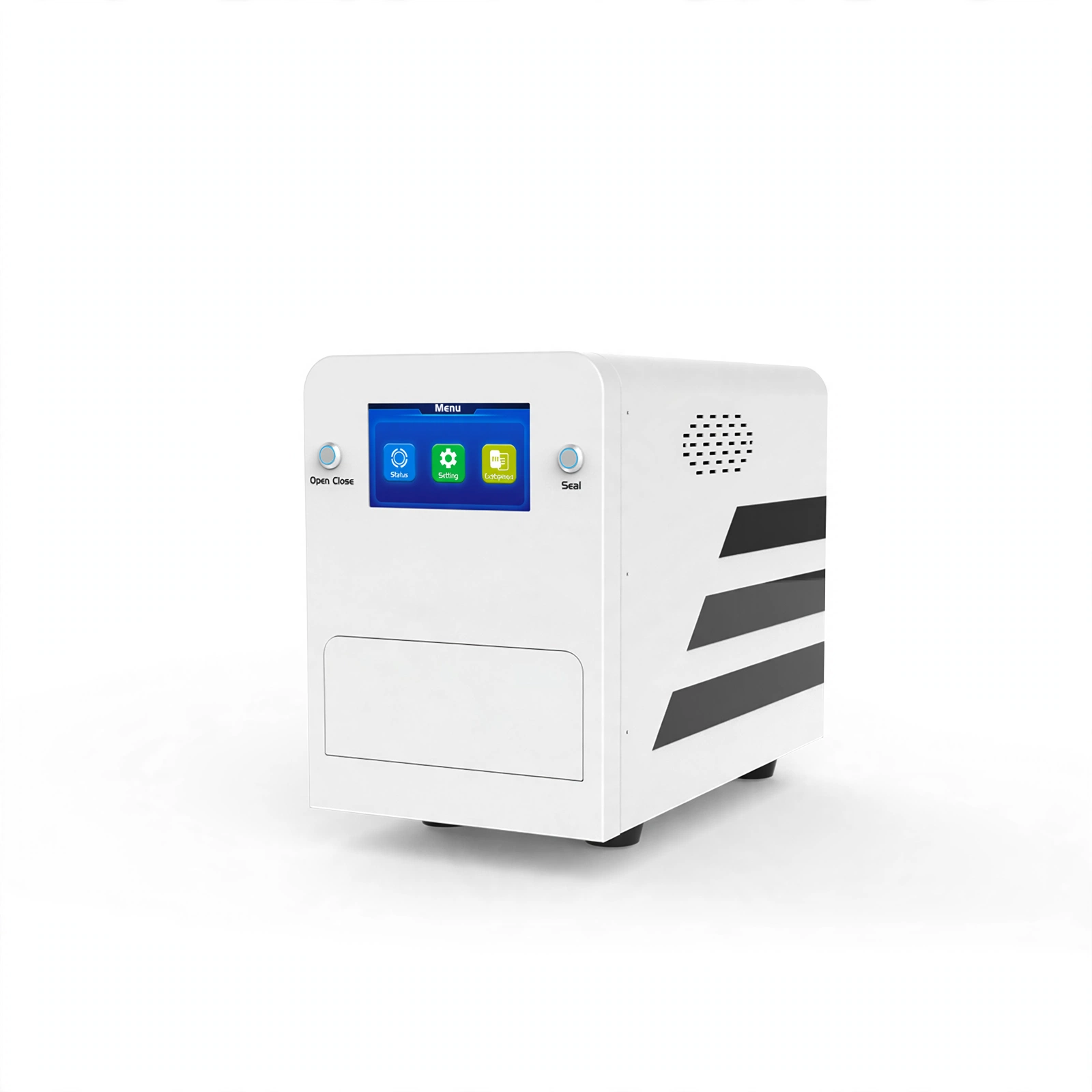

Automatic Sealing and Capping Machine BH-FM01

Model BH-FM01 Microplate & PCR Refrigerated

BH-FM01 seals various special membranes on various microplates(PCR plates, nucleic acid extraction plates, enzyme-labeled plates, etc.) by means of heat sealing, in order to prevent evaporation, leakage and cross-contamination of reagents during testing or transportation.

Temperature
RT~210℃
Power
400W
Dimensions
325*176*262mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

Widely used in inspection institutions, hospitals, reagent manufacturers, universities and other places.

Features:

1. 4.3-inch touch screen, easy to operate.

2. Real-time observation of the operating state of the instrument, can be used as a single machine.

3. Customize the sealing temperature as required.

4. Complete the whole process automatically, with stable results and good repeatability.

5. Suitable for a variety of heat sealing films.

6. Multifunctional limit column to prevent heat seal film offset.

7. With emergency stop function and standby function.

Technical Parameters:

Model BH-FM01
Temp. Range RT~210℃
Temp. Precision ±1℃
Heating Rate Heat to 180℃ in 240 seconds
Cooling Retention When sealing the film, the heating body drops temperature ≤3℃, and rises to the preset temperature within 20s.
Sealing Membrane Time 0.1~15s
Film Sealing Time Accuracy 0.1s
Pressure Level 1~5 level can be set, multi-level adjustable
Plate Type Deep well plate, PCR plate, ELISA plate, etc.

Optional: ELISA plate adapter, 384 well plate adapter, PCR plate adapter
Consumption 400W
Power Supply AC100~240V, 50/60Hz
External Size(W*D*H) 325*176*262mm
Package Size(W*D*H) 530*230*290mm
Net/Gross Weight 10.5/11.5kg
The details

Specifications

Model
BH-FM01
Temp. Range
RT~210℃
Temp. Precision
±1℃
Heating Rate
Heat to 180℃ in 240 seconds
Cooling Retention
When sealing the film, the heating body drops temperature ≤3℃, and rises to the preset temperature within 20s.
Sealing Membrane Time
0.1~15s
Film Sealing Time Accuracy
0.1s
Pressure Level
1~5 level can be set, multi-level adjustable
Plate Type
Deep well plate, PCR plate, ELISA plate, etc.Optional: ELISA plate adapter, 384 well plate adapter, PCR plate adapter
Consumption
400W
Power Supply
AC100~240V, 50/60Hz
External Size(W*D*H)
325*176*262mm
Package Size(W*D*H)
530*230*290mm
Net/Gross Weight
10.5/11.5kg
