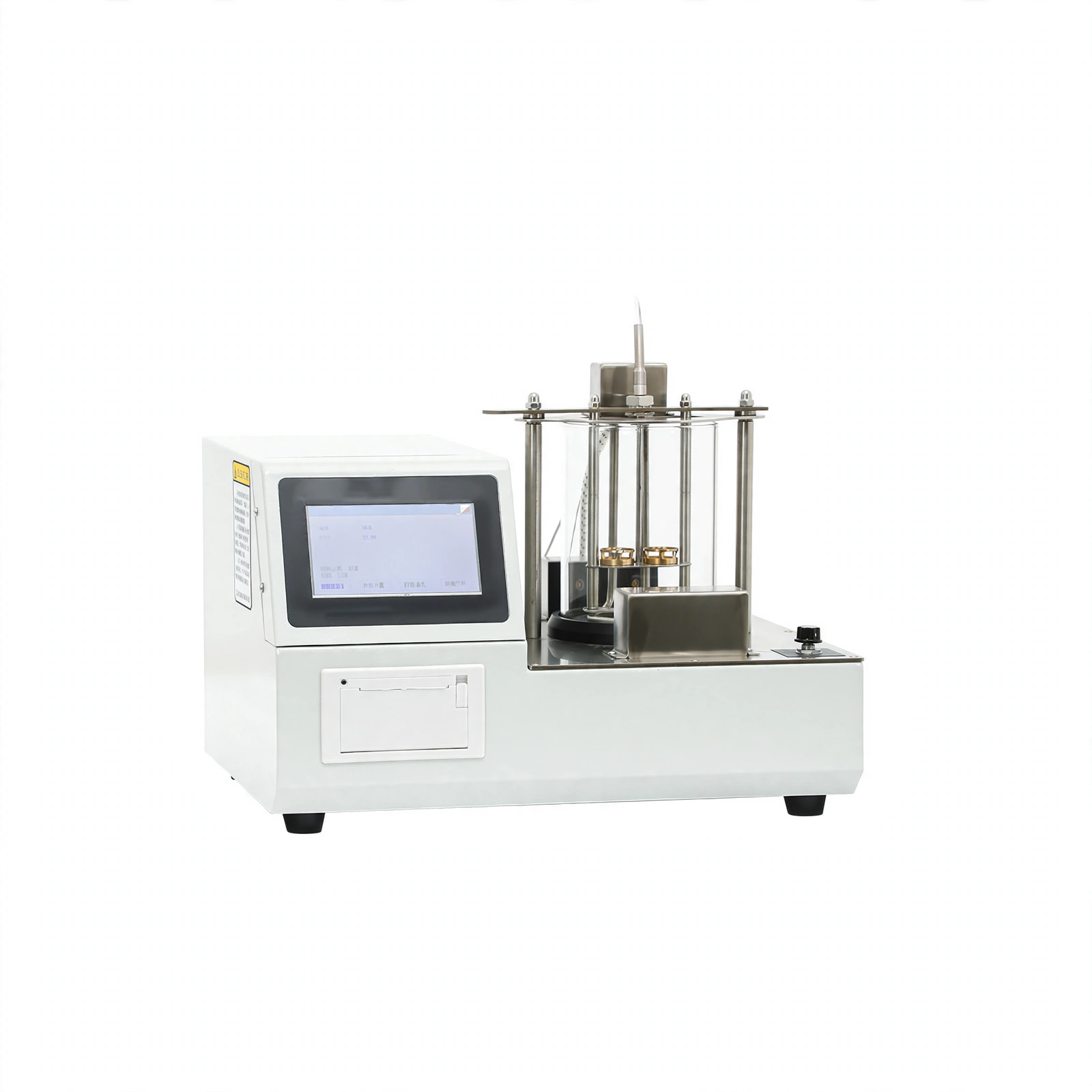

Automatic Softening Point Tester

Model BK-SPT2806G

The Automatic Softening Point Tester is an advanced laboratory instrument designed to measure the softening point of materials such as bitumen, asphalt, and resins. This fully automated device ensures accurate and repeatable results by controlling the heating process and automatically detecting the softening point of the sample.

Power
700W
Net weight
17kg
Dimensions
400*300*250mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. This instrument adopts 32-bit ARM processor, color touch LCD screen, laser detection and other advanced technologies. It has the characteristics of homogeneous medium temperature, stable medium heating rate, automatic detection of softening point, excellent repeatability and reproducibility of test results.

2. The detection algorithm is advanced, and the influence of air bubbles generated in the heating process of filter media on the test results can be achieved.

3. It can do two samples at the same time.

Technical Parameters:

Model BK-SPT2806G
Measurement Range 5~80℃(softening point≦80℃)

32~160℃(softening point>80℃)
Heating Rate It will be adjusted to 5±0.5℃/min automatically after three minutes
Temperature Resolution 0.1℃
Stirrer The electromagnetic stirring speed can be adjusted continuously, the stirring speed is 0~300rpm
Beaker Volume 1000ml
Screen Touch LCD screen
Communication Interface RS-232C
Ambient Temperature 15~35℃
Relative Humidity ≤85%
Power Supply AC220V±10%, 50Hz
Power 700W
Dimension 400*300*250mm
Net Weight 17kg
Packing Size 675*465*500mm
Gross Weight 22kg
The details

Specifications

Model
BK-SPT2806G
Measurement Range
5~80℃(softening point≦80℃)32~160℃(softening point>80℃)
Heating Rate
It will be adjusted to 5±0.5℃/min automatically after three minutes
Temperature Resolution
0.1℃
Stirrer
The electromagnetic stirring speed can be adjusted continuously, the stirring speed is 0~300rpm
Beaker Volume
1000ml
Screen
Touch LCD screen
Communication Interface
RS-232C
Ambient Temperature
15~35℃
Relative Humidity
≤85%
Power Supply
AC220V±10%, 50Hz
Power
700W
Dimension
400*300*250mm
Net Weight
17kg
Packing Size
675*465*500mm
Gross Weight
22kg
