Ozone UV Sterilization Cabinet

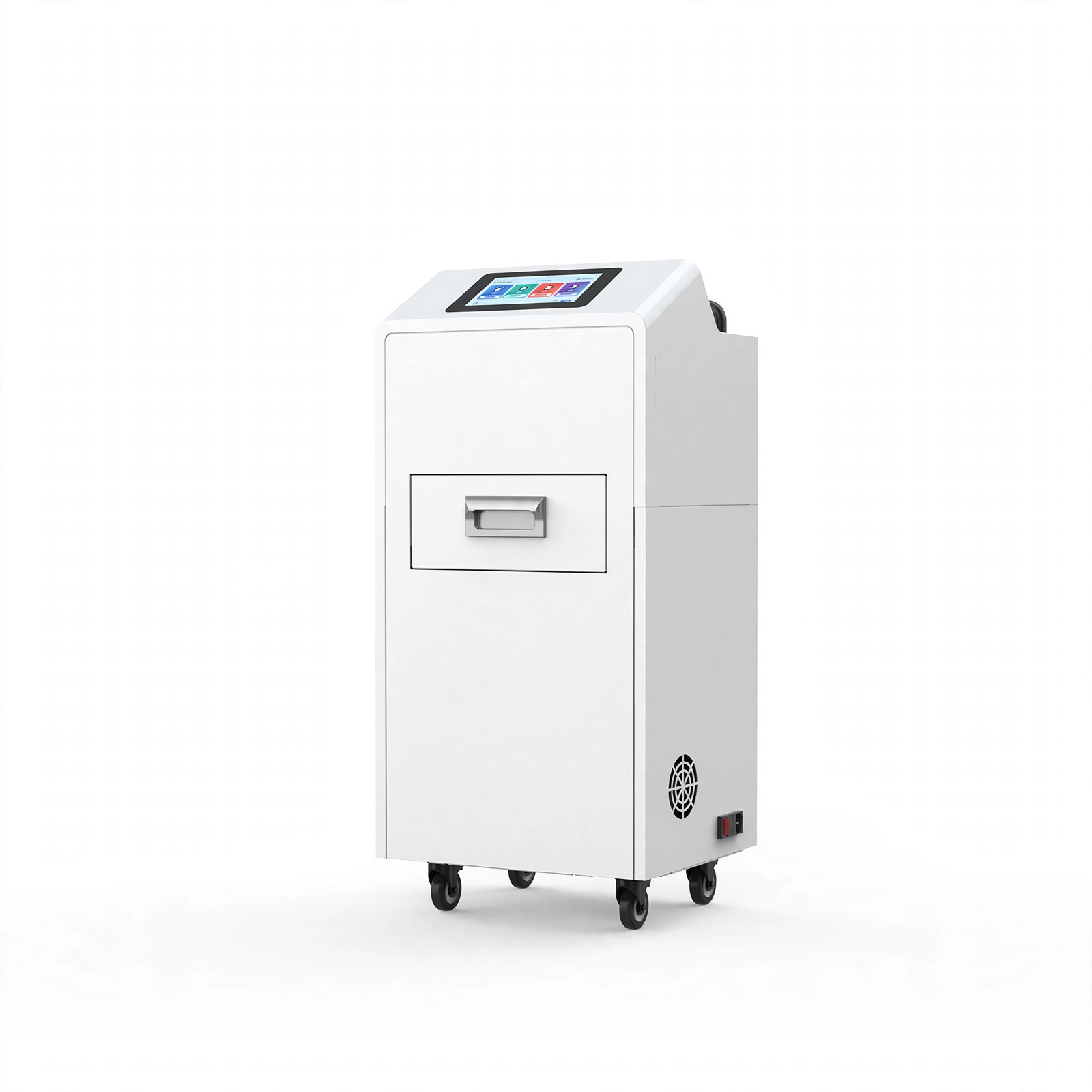

Bed Unit Ozone Sterilizer ZY-Y-CY5G

Model ZY-Y-CY5G

Bed unit ozone sterilizer adopts high-concentration ozonator and air pump pressurization technology. The high-concentration of ozone is injected into the bedding, mattress, pillow core etc. In the special bedspread in the manner of semi-closed pressure osmosis to achieve the purpose of disinfecting the bed unit.

Power
410VA
Noise
45~50dB
Net weight
31kg
Dimensions
380*350*830mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch color touch screen, microcomputer control, long service life, low light loss and system energy consumption and convenient man-machine interaction.

2. With consumable life alarm function.

3. Manual/automatic mode is optional, free to set disinfection time.

4. Clock display function to accumulate disinfection time, real-time temperature monitoring.

5. Special lockers are provided before and after the machine to facilitate users to store items such as ozone output tubes.

6. With ozonolysis device, the treated gas can be directly discharged into the air, healthy and pollution-free.

7. Equipped with high-power air compressor, so that ozone can completely enter the interior of cotton wool and other items for disinfection.

8. Stainless steel ceramic ozonator, high purity ozone, large amount of production, long service life.

Technical Parameters:

Model ZY-Y-CY5G
Disinfection Method Ozone
Ozone Generation 5000mg/h
Max Ozone Concentration ≥1700mg/m3
Ozone Filling Time 0~99min(Customizable)
Disinfection Time 0~99min(Customizable)
Pump-out Time 0~99min(Customizable)
Parsing Time 0~99min(Customizable)
Noise 45~50dB(A)
Special Function Single and twin bed mode, temperature detection, analytical agent change prompt, selection of disinfection cycles, time can be set and scheduled disinfection is available
Consumption 410VA
Power Supply AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional)
External Size(W*D*H) 380*350*830mm
Net Weight 31kg
Package Size(W*D*H) 445*385*967mm
Gross Weight 40kg
The details

Specifications

Model
ZY-Y-CY5G
Disinfection Method
Ozone
Ozone Generation
5000mg/h
Max Ozone Concentration
≥1700mg/m3
Ozone Filling Time
0~99min(Customizable)
Disinfection Time
0~99min(Customizable)
Pump-out Time
0~99min(Customizable)
Parsing Time
0~99min(Customizable)
Noise
45~50dB(A)
Special Function
Single and twin bed mode, temperature detection, analytical agent change prompt, selection of disinfection cycles, time can be set and scheduled disinfection is available
Consumption
410VA
Power Supply
AC220V, 50/60Hz(Standard);AC110V, 50/60Hz(Optional)
External Size(W*D*H)
380*350*830mm
Net Weight
31kg
Package Size(W*D*H)
445*385*967mm
Gross Weight
40kg
