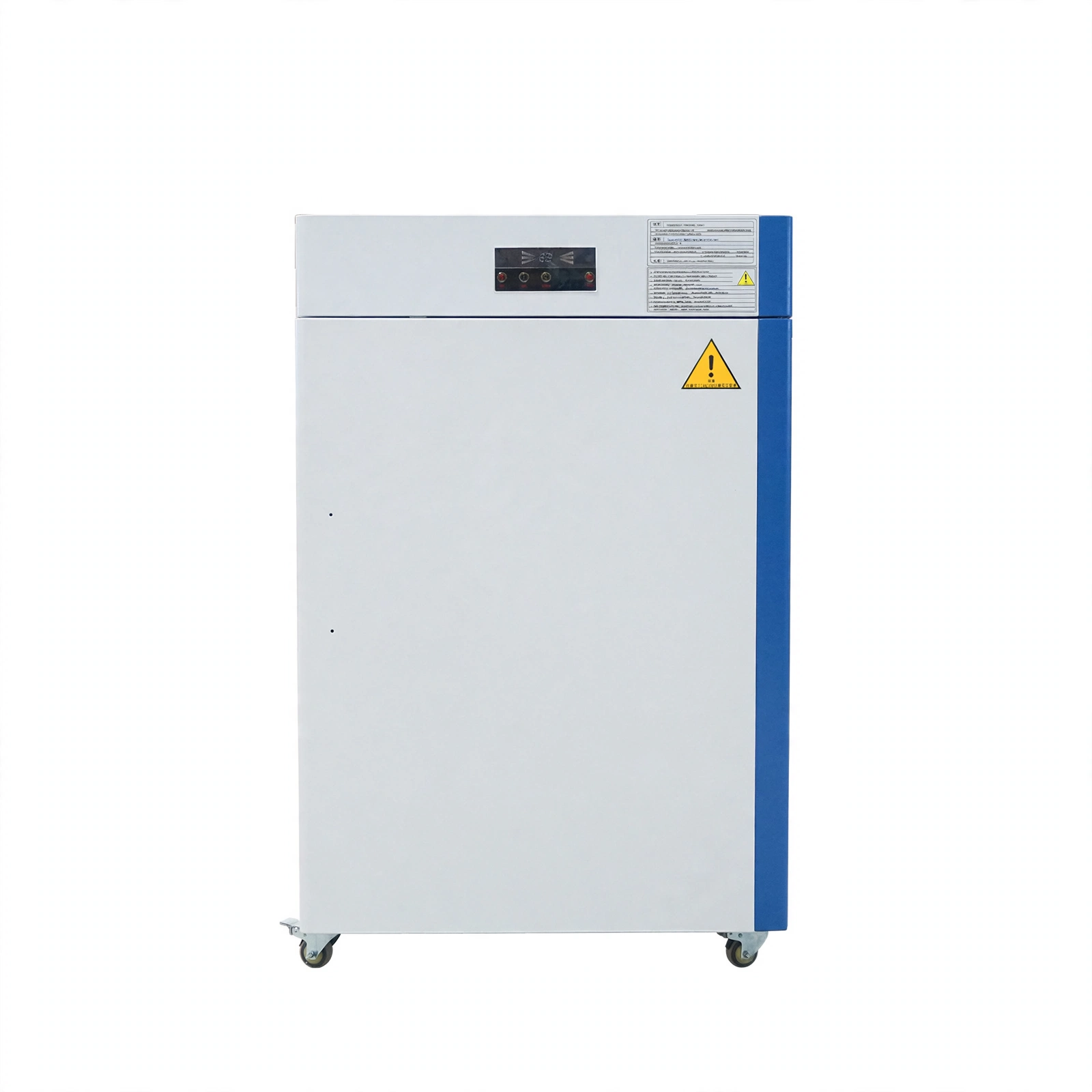

Ozone UV Sterilization Cabinet

UV Sterilization Cabinet

Model BJPX-SVO200 BJPX-SV200

Application: Suitable for items that are not resistant to high temperatures, glass sugar porcelain cups, ceramics, production supplies, currency,non-woven fabric, composite paper, cleaning appliances, tableware,towels, clothes, shoes, packaging materials and other products. The use of three-sided high intensity sterilization, the use of ultraviolet and ozone synergistic sterilization, ozone disinfects areas not exposed to UV rays, kill the surface of the virus or bacteria.

Capacity
200L
Power
120W
Net weight
81kg
Dimensions
750*663*1200mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model BJPX-SVO200 BJPX-SV200
Capacity

200L
Type With ozone Without ozone
UV Ray Wavelength 253.7/184.9nm 253.7nm
Sterilization Way 2 sides of UV ray+1 side of ozone 3 sides of UVC UV ray
UV Lamp Material

Quartz glass
Altitude ＜2000m
Shelf 500*520mm, standard 2pcs, can be optional
Standard Accessories Shelf*2,doorknob*1, UV lamp*4，Ozone UV lamp*2 Shelf*2,doorknob*1, UV lamp*6
Consumption 120W
Power Supply

AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer)
Internal Size 518*523*778mm
External Size(W*D*H)

750*663*1200mm
Net Weight 81kg
Package Size(W*D*H)

875*788*1365mm
Gross Weight

100kg

Recommended UV Exposure Time:

Microorganism Species Exposure Dose Exposure Time
Bacterial Propagules ≥10000μW.s/cm2 10min
Bacterial Spores ≥100000μW.s/cm2 10min
Virus 10000μW.s/cm2≤Exposure Dose≤100000μW.s/cm2 10min
Fungal Spores General Exposure Dose≤100000μW.s/cm2

Special Exposure Dose up to 600000μW.s/cm2

 60min
When the target microorganism is unknown ≥100000μW.s/cm2 10min

Remarks: The suitable temperature range for ultraviolet disinfection is 20℃~40℃. If the temperature is too high or too low, the disinfection effect will be affected, and the disinfection time can be appropriately extended.

The details

Specifications

Model
BJPX-SVO200 / BJPX-SV200
Capacity
200L
Type
With ozone / Without ozone
UV Ray Wavelength
253.7/184.9nm / 253.7nm
Sterilization Way
2 sides of UV ray+1 side of ozone / 3 sides of UVC UV ray
UV Lamp Material
Quartz glass
Altitude
Shelf
500*520mm, standard 2pcs, can be optional
Standard Accessories
Shelf*2,doorknob*1, UV lamp*4，Ozone UV lamp*2 / Shelf*2,doorknob*1, UV lamp*6
Consumption
120W
Power Supply
AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer)
Internal Size
518*523*778mm
External Size(W*D*H)
750*663*1200mm
Net Weight
81kg
Package Size(W*D*H)
875*788*1365mm
Gross Weight
100kg
