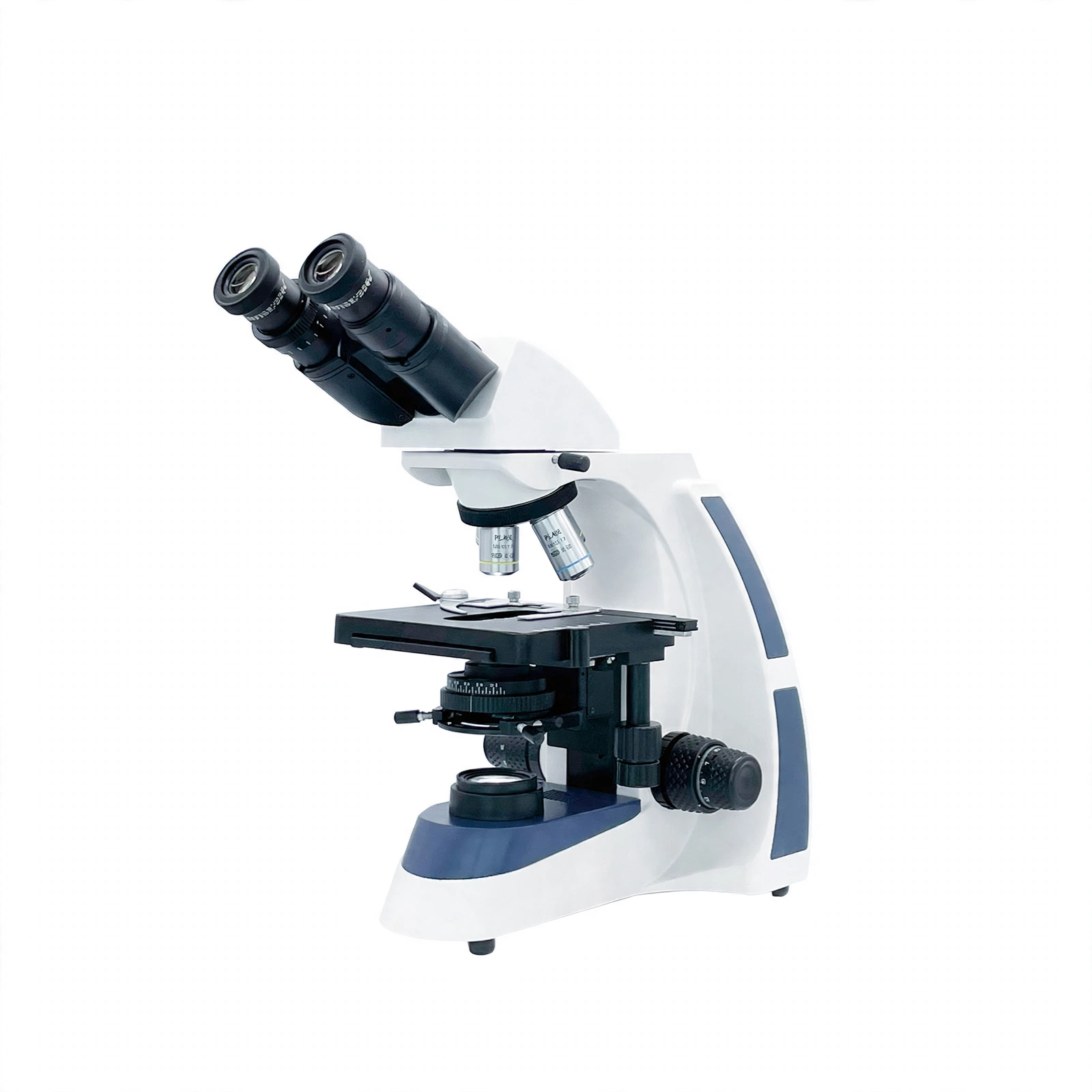

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BBM-17 | BBM-17A | BBM-17AP | BBM-17AD |
| Optical System |
Infinite optical system |
|||
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
|
| Eyepiece |
WF10X/22mm, WF16X/15mm(Optional) |
|||
|
Infinite Plan Achromatic Objective |
4X N.A=0.10 WD=20.00mm |
|||
|
10X N.A=0.25 WD=13.50mm |
||||
|
40X N.A=0.65 WD=0.68mm |
||||
|
100X(Oil) N.A=1.25 WD=0.20mm |
||||
| Focusing |
Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
|||
| Stage |
Mechanical Stage 140*160mm, Moving Range 76*40mm |
|||
| Condenser |
Abbe NA1.25 centerable condenser with Iris Diaphragm＆Filter |
|||
| Illumination |
LED lamp, brightness adjustable |
|||
| Filter |
Yellow, green, blue |
|||
| Imaging System |
/ |
10.5-inch Android system PAD, MCL-Z adapter | 500W CMOS Camera, MCL-Z adapter | |
| Power Supply |
AC85~240V, 50/60Hz |
|||
| Package Size(W*D*H) |
410*260*525mm |
410*260*610mm |
||
| Net Weight |
9kg |
10kg |
||
| Gross Weight |
11kg |
12kg |
||
