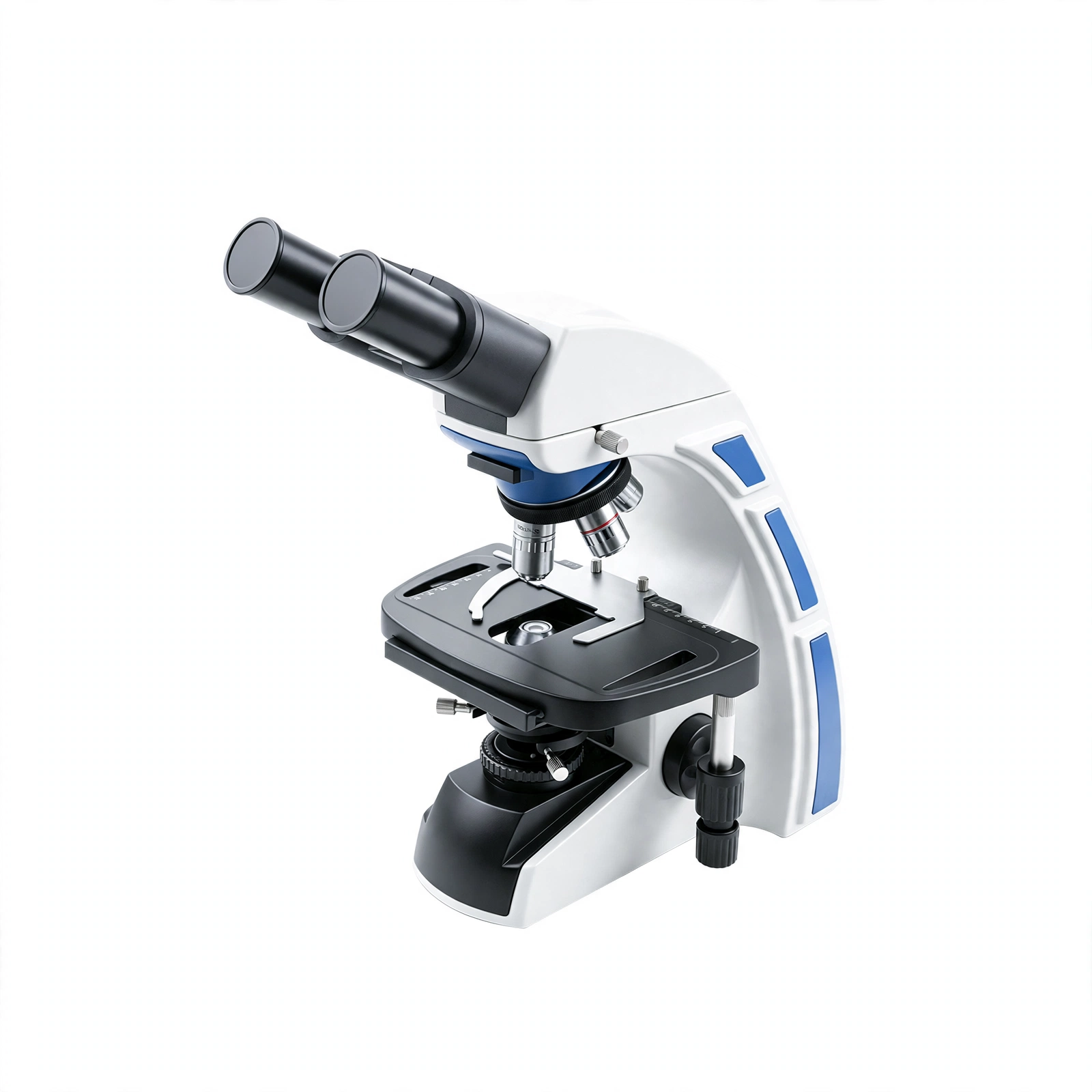

The Biological Microscope BBM-7130 Series is an infinite optical system microscope available with binocular or trinocular Seidentopf heads. It features PL10X/22mm eyepieces, infinite plan achromatic objectives from 4X to 100X oil, and a precise coaxial focusing system with 0.002mm fine adjustment. A large 220×148mm mechanical stage and 3W LED illumination provide stable, high-quality imaging for hospital diagnosis, teaching, and research applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BBM-7130B | BBM-7130C |
| Optical System |
Infinite optical system |
|
| View Head | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm |
| Eyepiece |
PL10X/22mm |
|
| Infinite Plan Achromatic Objective |
4X, 10X, 40X(Spring), 100X(Spring, oil) |
|
| Nosepiece |
Inward quadruple nosepiece |
|
| Focusing |
Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 25mm; fine adjustment increment: 0.002mm |
|
| Stage |
Mechanical stage 220*148mm, moving range 75*50mm |
|
| Condenser |
Abbe-type NA=1.25, φ2~30mm variable aperture |
|
| Illumination |
3W LED light, adjustable brightness |
|
| Filter |
Blue |
|
| Power Supply |
AC100~240V, 50/60Hz |
|
| Packing Size(W*D*H) |
360*310*470mm |
|
| Gross Weight |
8kg |
|
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
