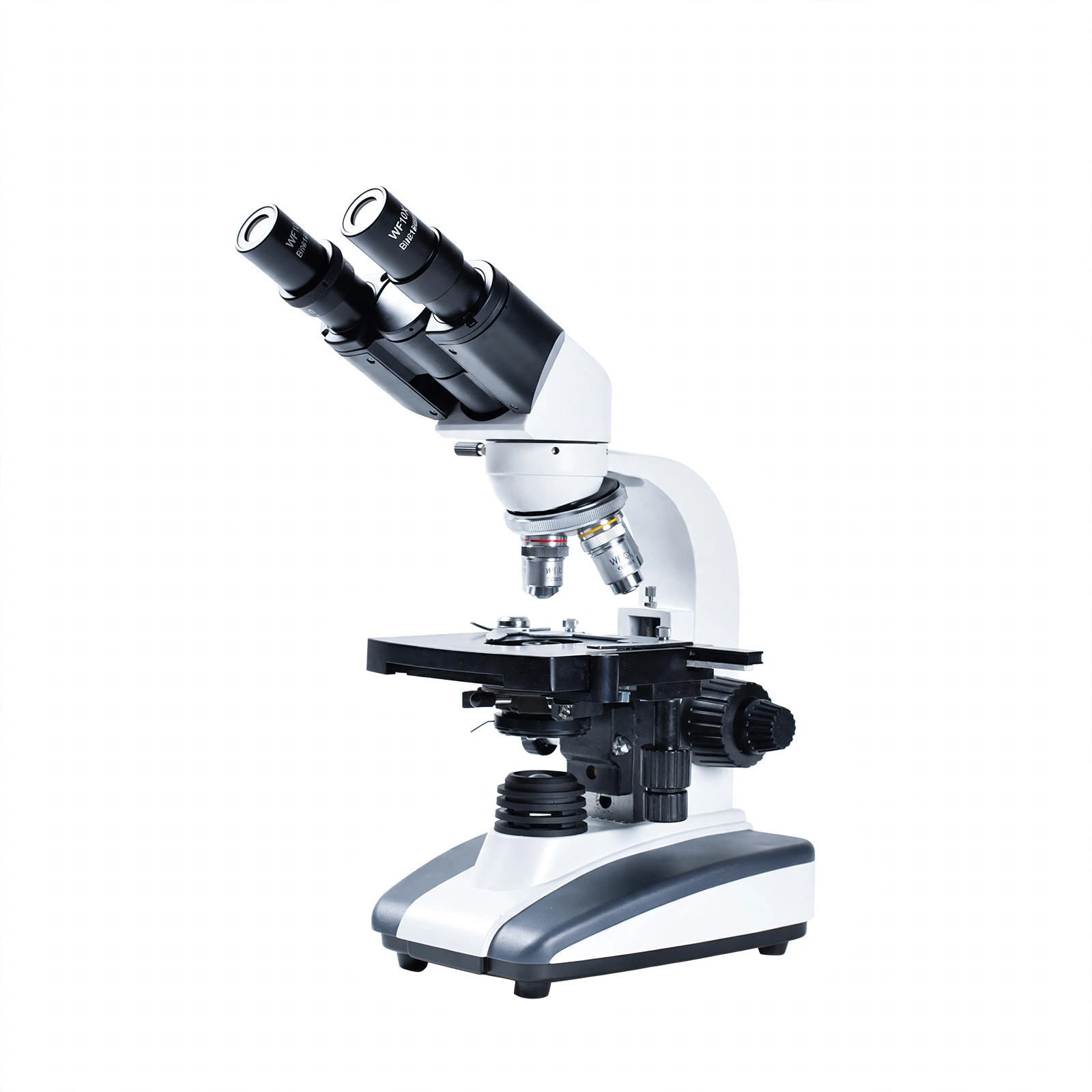

The Biological Microscope BM-2CA is your gateway to exploring the tiniest details of life with unparalleled precision and clarity. This cutting-edge microscope is designed to meet the needs of both beginners and experienced researchers, making it an essential tool for various scientific disciplines and educational settings.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BM-2CA | BM-2CBA |
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360°rotatable, Interpupillary 48~75mm |
| Eyepiece |
WF10X/18mm, WF16X/11mm |
|
|
Achromatic Objective |
4X N.A=0.10 WD=37.50mm |
|
|
10X N.A=0.25 WD=7.31mm |
||
|
40X N.A=0.65 WD=0.63mm |
||
|
100X(Oil) N.A=1.25 WD=0.18mm |
||
| Focusing |
Coaxial Coarse＆Fine Adjustable System, Range 15mm, Fine Division 0.002mm |
|
| Stage | Mechanical Stage 130*130mm, Moving Range 70*30mm, Vernier 0.1mm | Mechanical Stage 130*125mm, Moving Range 70*30mm, Vernier 0.1mm |
| Condenser |
Abbe NA1.25 condenser with Iris Diaphragm＆Filter |
|
| Illumination |
LED dual-color light source, adjustable brightness |
|
| Filter |
Yellow, green, blue |
|
| Power Supply |
AC85~240V, 50/60Hz |
|
| Package Size(W*D*H) | 435*330*235mm | 335*215*470mm |
| Gross Weight |
5.5kg |
|
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Biological Microscope BBM-3110 Series is a versatile finite optical system microscope available with multiple viewing head options, including monocular, binocular, trinocular, built-in camera, and teaching configu…
The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispe…
The Biological Microscope BBM-3210 Series is a finite optical system microscope with multiple viewing head options, including monocular, binocular, trinocular, and teaching configurations. It features WF10X and WF16X…
The Biological Microscope BBM-3310 Series is a finite optical system microscope available with binocular or trinocular Seidentopf heads, both inclined at 30° and 360° rotatable. It features achromatic objectives from…
