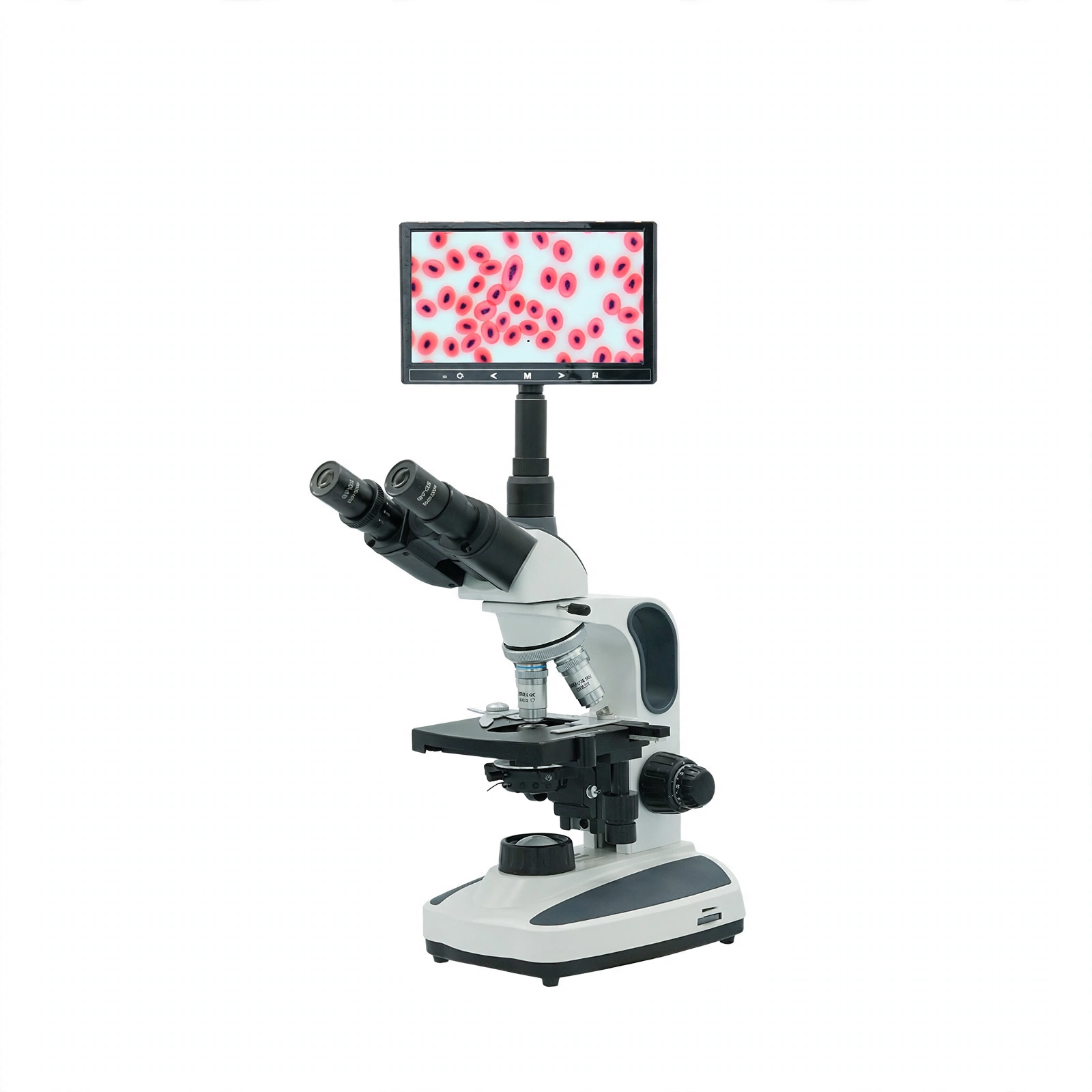

The Biological Microscope is a sophisticated optical instrument designed for the detailed examination of biological specimens. Ideal for use in educational institutions, research laboratories, medical facilities, and clinical settings, this microscope offers high-resolution imaging and advanced features to support a wide range of applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BM-2CBAD | BM-2CBAP | BM-8CAD | BM-8CAP |
| Viewing Head |
Trinocular head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm, Mechanical tube length 160mm |
|||
| Eyepiece |
WF10X/18mm, WF16X/11mm |
|||
| Objective |
4X N.A=0.10 WD=37.5mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm |
|||
| Stage |
Mechanical Stage 130*125mm, Moving Range 70*30mm, Cursors 0.1mm |
Mechanical Stage 140*140mm, Moving Range 75*40mm, Cursors 0.1mm |
||
| Focusing |
Coaxial Coarse & Fine Adjustable System, Range 15mm, Fine Division 0.002mm |
Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
||
| Condenser |
N.A.1.25 Adjustable Medium Abbe condenser with variable light bar |
|||
| Filter |
Blue, yellow, green |
|||
| Illumination |
LED dual-color light source, adjustable brightness |
|||
| Imaging System | Digital CMOS camera, 2M pixels, with geometric measurement and analysis software, C interface | 9-inch large screen display | Digital CMOS camera, 5M pixels, with geometric measurement and analysis software, MCL-Z adapter lens | 10.5-inch screen Android tablet with special adapter lens |
| Power Supply |
AC85~240V, 50/60Hz |
|||
| Package Size (W*D*H) | 355*245*590mm | 365*255*610mm |
425*330*450mm |
|
| Net Weight | 6kg | 6kg | 8kg | 10kg |
| Gross Weight | 6.5kg | 6.5kg | 8.5kg | 10.5kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Biological Microscope BBM-3110 Series is a versatile finite optical system microscope available with multiple viewing head options, including monocular, binocular, trinocular, built-in camera, and teaching configu…
The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispe…
The Biological Microscope BBM-3210 Series is a finite optical system microscope with multiple viewing head options, including monocular, binocular, trinocular, and teaching configurations. It features WF10X and WF16X…
The Biological Microscope BBM-3310 Series is a finite optical system microscope available with binocular or trinocular Seidentopf heads, both inclined at 30° and 360° rotatable. It features achromatic objectives from…
