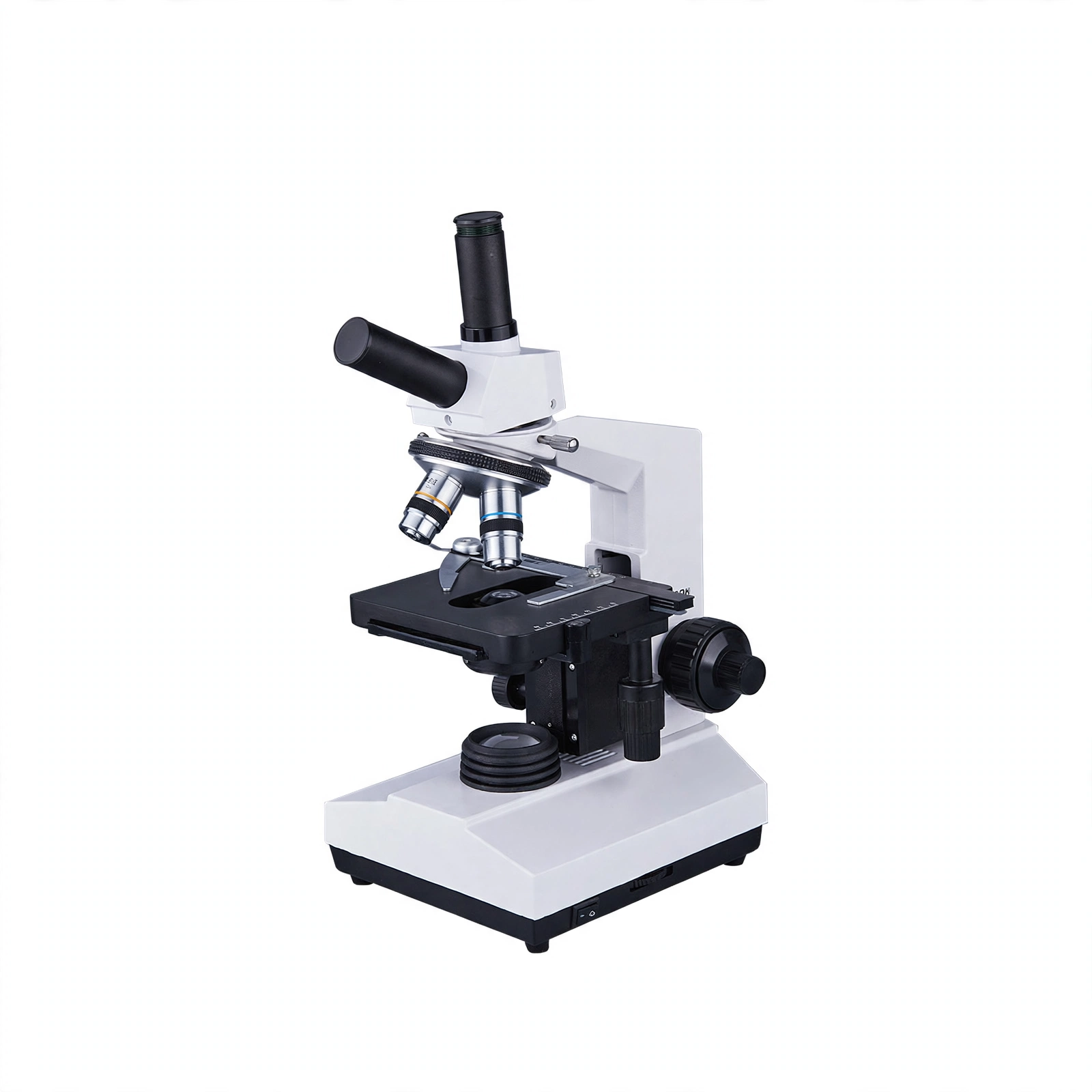

The Biological Microscope is a sophisticated optical instrument designed for the detailed examination of biological specimens. Ideal for use in educational institutions, research laboratories, medical facilities, and clinical settings, this microscope offers high-resolution imaging and advanced features to support a wide range of applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BM-Z102 | BM-F104 | BM-Z106 | BM-Z110 | BM-Z112 | |
| Eyepiece | Wide field eyepiece: WF10X,(WF16X optional) | √ | √ | √ | √ | √ |
|
Viewing Head |
Compensation free binocular head inclined at 30° | / | √ | / | / | / |
| Sliding binocular head, inclined at 45° | / | / | √ | / | / | |
| Compensation free trinocular head, inclined at 30° | / | / | / | √ | / | |
| Sliding trinocular head, inclined at 45° | / | / | / | / | √ | |
| Monocular with video teaching head | √ | / | / | / | / | |
| Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | √ | √ | √ | √ | √ |
| Nosepiece | Quadruple nosepiece | √ | √ | √ | √ | √ |
| Stage | Double layer mechanical stage size 132*140mm, moving range 75*45mm | √ | √ | √ | √ | √ |
| Base Accessories | Black decorative panel | ● | ● | ● | ● | √ |
| Focusing | Coaxial coarse and fine adjustment, focusing range 30mm, focusing Interval 0.002mm | √ | √ | √ | √ | √ |
| Condenser | Abbe NA=1.25 with iris diaphragm &filter | √ | √ | √ | √ | √ |
| Illumination | LED light source(halogen lamp optional) | √ | √ | √ | √ | √ |
| Power Supply | AC Input 100~240V 50/60Hz, DC Output 12V | √ | √ | √ | √ | √ |
|
Package Size(W*D*H)mm |
320*280*420 |
|||||
|
Gross Weight(kg) |
5.2 | 5.6 | 5.6 | 6 | 6 | |
Note: √ Standard Outfit, ● Optional
