4℃ Blood Bank Refrigerator

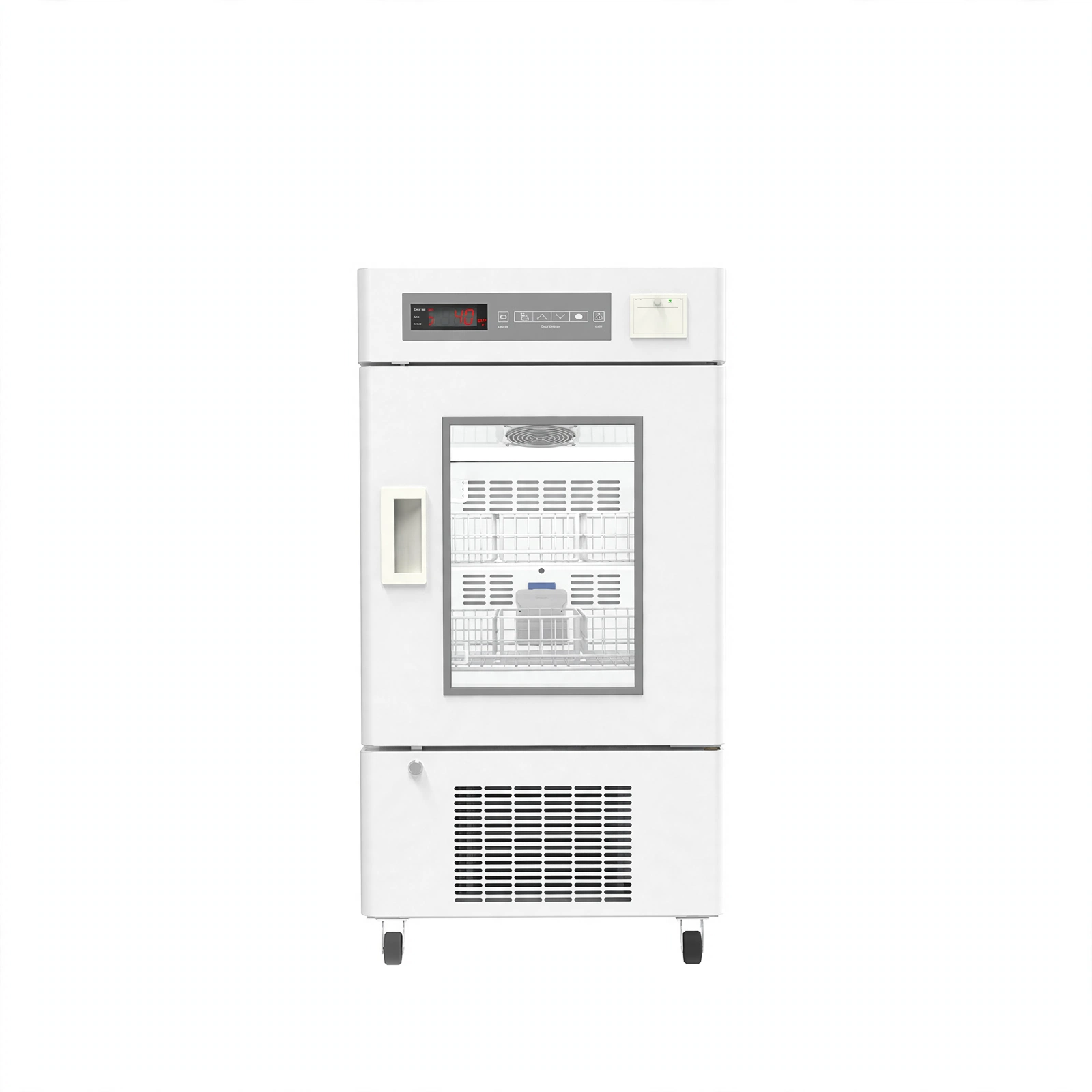

Blood Bank Refrigerator BBR-4V86 BBR-4V136 BBR-4V296 BBR-4V356 BBR-4V466

Model BBR-4V86 BBR-4V136 BBR-4V296 BBR-4V356 BBR-4V466 Refrigerated Blood & clinical

The Blood Bank Refrigerator is a specialized refrigeration unit designed to store blood and blood products at precise, stable temperatures, ensuring their safety and viability. Ideal for use in hospitals, blood banks, research laboratories, and clinical facilities, this refrigerator provides reliable temperature control and storage conditions for critical biological materials.

Capacity
86L / 136L / 296L / 3…
Temperature
2~6℃
Power
245W / 252W / 267W /…
Net weight
74kg / 90kg / 121kg /…
Dimensions
530*660*1037mm / 530*…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Multiple sensors design: make sure the precise monitoring and programming.

2. Unibody design, mono-assembly foaming(Rigid polyurethane insulation material).

3. Forced air refrigeration system, ensure inner temperature constant and uniform.

4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.

5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

Technical Parameters:

Model

 BBR-4V86 BBR-4V136 BBR-4V296 BBR-4V356 BBR-4V466

Capacity

 86L 136L 296L 356L 466L

Temp. Range

2~6℃

Temp. Accuracy

0.1℃

Temp. Uniformity

≤1.5℃

Temp. Stability

≤2℃

Recovery Time(Recover to 6℃ in an ambient temp. of 32℃)

≤15min

Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃)

≤55min

 ≤60min ≤70min

Control System

Microprocessor control

Display

LED display

Alarm

High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm

Refrigeration Type

Air-cooling

Refrigerant

 R134a/115g R134a/120g R134a/175g R134a/190g R134a/200g

Compressor

International famous compressor/1

Condenser&Evaporator

Copper tube aluminum fin type

Defrost

Automatic defrost

Construction

Polyurethane cyclopentane foam

Material

 Internal Material

Stainless steel
External Material

Sprayed steel plate

Door

 Outer door: electrically heated glass semi-foam door*1

Inner door: acrylic door*2

 Outer door: electrically heated glass semi-foam door*1

Inner door: acrylic door*3

Outer door: electrically heated glass door*1

Inner door: acrylic door*3

 Outer door: electrically heated glass semi-foam door*1

Inner door: acrylic door*3

Consumption

 245W 252W 267W 352W 506W

Power Supply

AC220V, 50Hz(Standard);

AC220V, 60Hz; 110V, 60Hz(Optional, external transformer)

AC220V, 50Hz(Standard);

AC110/220V, 60Hz(Optional)

 AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional)

Casters

Yes

Shelf

 2pcs 4pcs 4pcs 5pcs 5pcs

Basket

 6pcs 12pcs 12pcs 15pcs 20pcs

Blood Bag(450ml)

 66pcs 132pcs 156pcs 195pcs 300pcs

Standard Accessory

Thermal printer, test hole

Optional Accessory

Temperature recorder, USB interface, RS485 interface

Internal Size(W*D*H)

 430*459*495mm 430*459*745mm 530*520*1096mm 530*520*1325mm 580*613*1325mm

External Size(W*D*H)

 530*660*1037mm 530*660*1287mm 630*720*1658mm 630*720*1886mm 680*747*1886mm

Package Size(W*D*H)

 680*740*1330mm 685*750*1560mm 780*840*1910mm 770*830*2070mm 820*910*2080mm

Net Weight

 74kg 90kg 121kg 136kg 152kg

Gross Weight

 103kg 120kg 160kg 175kg 186kg
The details

Specifications

Model
BBR-4V86 / BBR-4V136 / BBR-4V296 / BBR-4V356 / BBR-4V466
Capacity
86L / 136L / 296L / 356L / 466L
Temp. Range
2~6℃
Temp. Accuracy
0.1℃
Temp. Uniformity
≤1.5℃
Temp. Stability
≤2℃
Recovery Time(Recover to 6℃ in an ambient temp. of 32℃)
≤15min
Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃)
≤55min / ≤60min / ≤70min / ≤70min / ≤70min
Control System
Microprocessor control
Display
LED display
Alarm
High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm
Refrigeration Type
Air-cooling
Refrigerant
R134a/115g / R134a/120g / R134a/175g / R134a/190g / R134a/200g
Compressor
International famous compressor/1
Condenser&Evaporator
Copper tube aluminum fin type
Defrost
Automatic defrost
Construction
Polyurethane cyclopentane foam
Material
Internal Material / Stainless steel / Stainless steel / Stainless steel / Stainless steel
Material
External Material / Sprayed steel plate / Sprayed steel plate / Sprayed steel plate / Sprayed steel plate
Door
Outer door: electrically heated glass semi-foam door*1Inner door: acrylic door*2 / Outer door: electrically heated glass semi-foam door*1Inner door: acrylic door*3 / Outer door: electrically heated glass door*1Inner door: acrylic door*3 / Outer door: electrically heated glass semi-foam door*1Inner door: acrylic door*3 / Outer door: electrically heated glass semi-foam door*1Inner door: acrylic door*3
Consumption
245W / 252W / 267W / 352W / 506W
Power Supply
AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional, external transformer) / AC220V, 50Hz(Standard); AC110/220V, 60Hz(Optional) / AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional) / AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional) / AC220V, 50Hz(Standard); AC220V, 60Hz; 110V, 60Hz(Optional)
Casters
Yes
Shelf
2pcs / 4pcs / 4pcs / 5pcs / 5pcs
Basket
6pcs / 12pcs / 12pcs / 15pcs / 20pcs
Blood Bag(450ml)
66pcs / 132pcs / 156pcs / 195pcs / 300pcs
Standard Accessory
Thermal printer, test hole
Optional Accessory
Temperature recorder, USB interface, RS485 interface
Internal Size(W*D*H)
430*459*495mm / 430*459*745mm / 530*520*1096mm / 530*520*1325mm / 580*613*1325mm
External Size(W*D*H)
530*660*1037mm / 530*660*1287mm / 630*720*1658mm / 630*720*1886mm / 680*747*1886mm
Package Size(W*D*H)
680*740*1330mm / 685*750*1560mm / 780*840*1910mm / 770*830*2070mm / 820*910*2080mm
Net Weight
74kg / 90kg / 121kg / 136kg / 152kg
Gross Weight
103kg / 120kg / 160kg / 175kg / 186kg
