4℃ Blood Bank Refrigerator

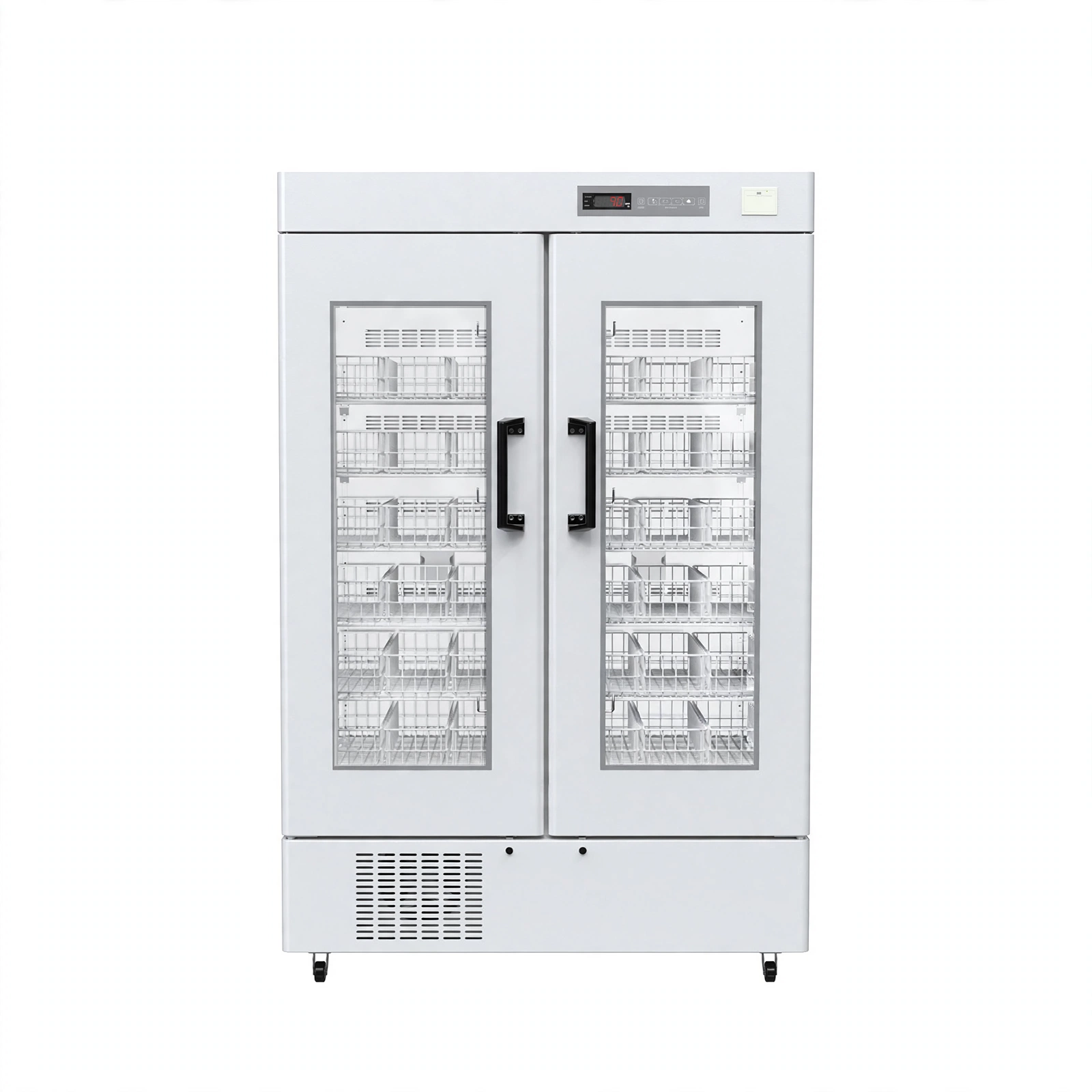

Blood Bank Refrigerator (Double Door) BBR-4V626 BBR-4V966

Model BBR-4V626 BBR-4V966 Refrigerated Blood & clinical

Blood bank refrigerator series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, etc. The storing temperature in the body can be regulated by the temperature button on the control panel. The application is convenient and the performance is reliable.

Capacity
626L / 966L
Temperature
2~6℃
Power
550W / 560W
Net weight
220kg / 246kg
Dimensions
1220*665*1885mm / 122…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Multiple sensors design: make sure the precise monitoring and programming.

2. Electric heated glass semi-foamed door, easy to observe, also keep a better cooling temperature.

3. Forced air refrigeration system, ensure inner temperature constant and uniform.

4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.

5. Individual transparent inner door, effectively reduce cool air loss when opening the door.

Technical Parameters:

Model

 BBR-4V626 BBR-4V966

Capacity

 626L   966L

Temp. Range

2~6℃

Temp. Accuracy

0.1℃

Temp. Uniformity

≤1.5℃

Temp. Stability

≤2℃

Recovery Time(Recover to 6℃ in an ambient temp. of 32℃)

≤15min

Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃)

≤100min

Control System

Microprocessor control

Display

LED display

Alarm

High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm

Refrigeration Type

Air-cooling

Refrigerant

R134a/240g

Compressor

International famous compressor/1

Condenser&Evaporator

Copper tube aluminum fin type

Defrost

Automatic defrost

Construction

Polyurethane cyclopentane foam

Material

 Internal Material

Stainless steel
External Material

Sprayed steel plate

Door

Outer door: electrically heated glass semi-foam door*2

Inner door: acrylic door*6

Casters

Yes

Consumption

 550W 560W

Power Supply

AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)

Shelf

12pcs

Baskets

36pcs

Blood Bags(450ml)

 360pcs 576pcs

Standard Accessory

Thermal printer, test hole

Optional Accessory

Temperature recorder, USB interface, RS485 interface

Internal Size(W*D*H)

 1100*420*1325mm 1100*650*1325mm

External Size(W*D*H)

 1220*665*1885mm 1220*895*1885mm

Package Size(W*D*H)

 1360*770*2100mm 1360*1000*2100mm

Net Weight

 220kg 246kg

Gross Weight

 285kg 320kg
The details

Specifications

Model
BBR-4V626 / BBR-4V966
Capacity
626L / 966L
Temp. Range
2~6℃
Temp. Accuracy
0.1℃
Temp. Uniformity
≤1.5℃
Temp. Stability
≤2℃
Recovery Time(Recover to 6℃ in an ambient temp. of 32℃)
≤15min
Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃)
≤100min
Control System
Microprocessor control
Display
LED display
Alarm
High/low temperature alarm, power failure alarm(72h), controller failure alarm, battery status alarm, door ajar alarm
Refrigeration Type
Air-cooling
Refrigerant
R134a/240g
Compressor
International famous compressor/1
Condenser&Evaporator
Copper tube aluminum fin type
Defrost
Automatic defrost
Construction
Polyurethane cyclopentane foam
Material
Internal Material / Stainless steel
Material
External Material / Sprayed steel plate
Door
Outer door: electrically heated glass semi-foam door*2Inner door: acrylic door*6
Casters
Yes
Consumption
550W / 560W
Power Supply
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Shelf
12pcs
Baskets
36pcs
Blood Bags(450ml)
360pcs / 576pcs
Standard Accessory
Thermal printer, test hole
Optional Accessory
Temperature recorder, USB interface, RS485 interface
Internal Size(W*D*H)
1100*420*1325mm / 1100*650*1325mm
External Size(W*D*H)
1220*665*1885mm / 1220*895*1885mm
Package Size(W*D*H)
1360*770*2100mm / 1360*1000*2100mm
Net Weight
220kg / 246kg
Gross Weight
285kg / 320kg
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
