Blood Thaw Machine

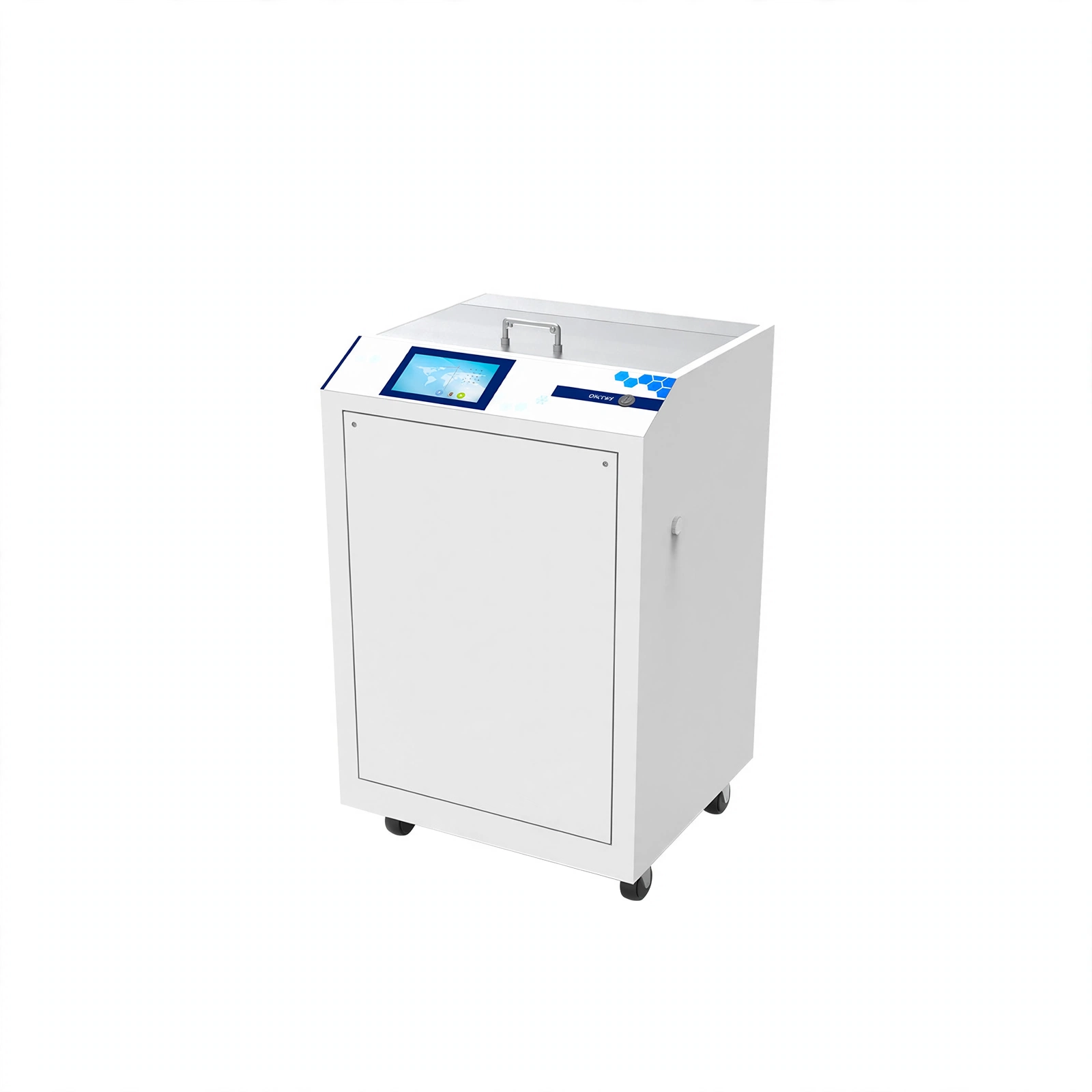

Blood Thaw Machine BJPX-PT6 BJPX-PT12 BJPX-PT24

Model BJPX-PT6 BJPX-PT12 BJPX-PT24 Blood & clinical Refrigerated

Blood Thaw Machine is suitable for blood centers, clinical transfusion departments, hospitals, blood products production units, using microcomputer control, temperature digital display, arbitrary setting, automatic constant temperature, swing function. Widely used for the rapid melting of frozen blood components and biological products. Applicable to hospital blood testing department, blood centers, blood banks and other industries.

Temperature
37.0±3.0℃
Power
1000VA / 2000VA / 360…
Net weight
25kg / 55kg / 80kg
Dimensions
550*500*470mm / 600*5…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High definition touch screen, sensitive operation.

2. Real-time temperature curve display.

3. Traceability management system, real-time record storage temperature data in the melting process.

4. A variety of thawing modes are available to adapt to thawing and rewarming of frozen plasma, platelets and blood products with different volumes.

5. Double circulation system, more constant temperature in the melting process, effectively eliminate the precipitation of fibrin, protect the active components of plasma.

6. Disintegrated water tank, convenient for regular deep cleaning and disinfection of equipment.

7. Equipped with a code scanning device, which can scan and record the thawing data of each bag of plasma, including thawing start and end date, time, and temperature data information during thawing.(Optional)

8. Standby automatic water refill, one key cleaning function, with temperature and water level protection function.(Only for BJPX-PT12 and BJPX-PT24)

9. Dual use of one machine to realize the fast switching between dry and wet thawing.(Only for optional isolated water type)

10. The waterproof bag is made of medical composite material, which ensures the thermal conductivity of the thawing bag and the contact area between the thawing bag and the plasma bag.(Only for optional isolated water type)

Technical Parameters:

Model BJPX-PT6 BJPX-PT12 BJPX-PT24
ThawingType

Standard: Water bath type

Optional: lsolated water type

Temp. Range

37.0±3.0℃

Temp. Resolution

±0.1℃

Water Storage Capacity 20kg±5% 58kg±5% 98kg±5%
Max Thawing Quantity 6pcs 12pcs 24pcs
Thawing Time

≤16min, from -20℃ to thawing situation

Ambient Temp.

18~30℃

Consumption 1000VA 2000VA 3600VA
Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer)

External Size(W*D*H) 550*500*470mm 600*540*970mm 720*600*990mm
Package Size(W*D*H) 670*620*695mm 744*714*1200mm 860*745*1210mm
Net Weight 25kg 55kg 80kg
Gross Weight 42kg 75kg 105kg
The details

Specifications

Model
BJPX-PT6 / BJPX-PT12 / BJPX-PT24
ThawingType
Standard: Water bath typeOptional: lsolated water type
Temp. Range
37.0±3.0℃
Temp. Resolution
±0.1℃
Water Storage Capacity
20kg±5% / 58kg±5% / 98kg±5%
Max Thawing Quantity
6pcs / 12pcs / 24pcs
Thawing Time
≤16min, from -20℃ to thawing situation
Ambient Temp.
18~30℃
Consumption
1000VA / 2000VA / 3600VA
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(External transformer)
External Size(W*D*H)
550*500*470mm / 600*540*970mm / 720*600*990mm
Package Size(W*D*H)
670*620*695mm / 744*714*1200mm / 860*745*1210mm
Net Weight
25kg / 55kg / 80kg
Gross Weight
42kg / 75kg / 105kg
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.

Talk to our team
Request a quote
