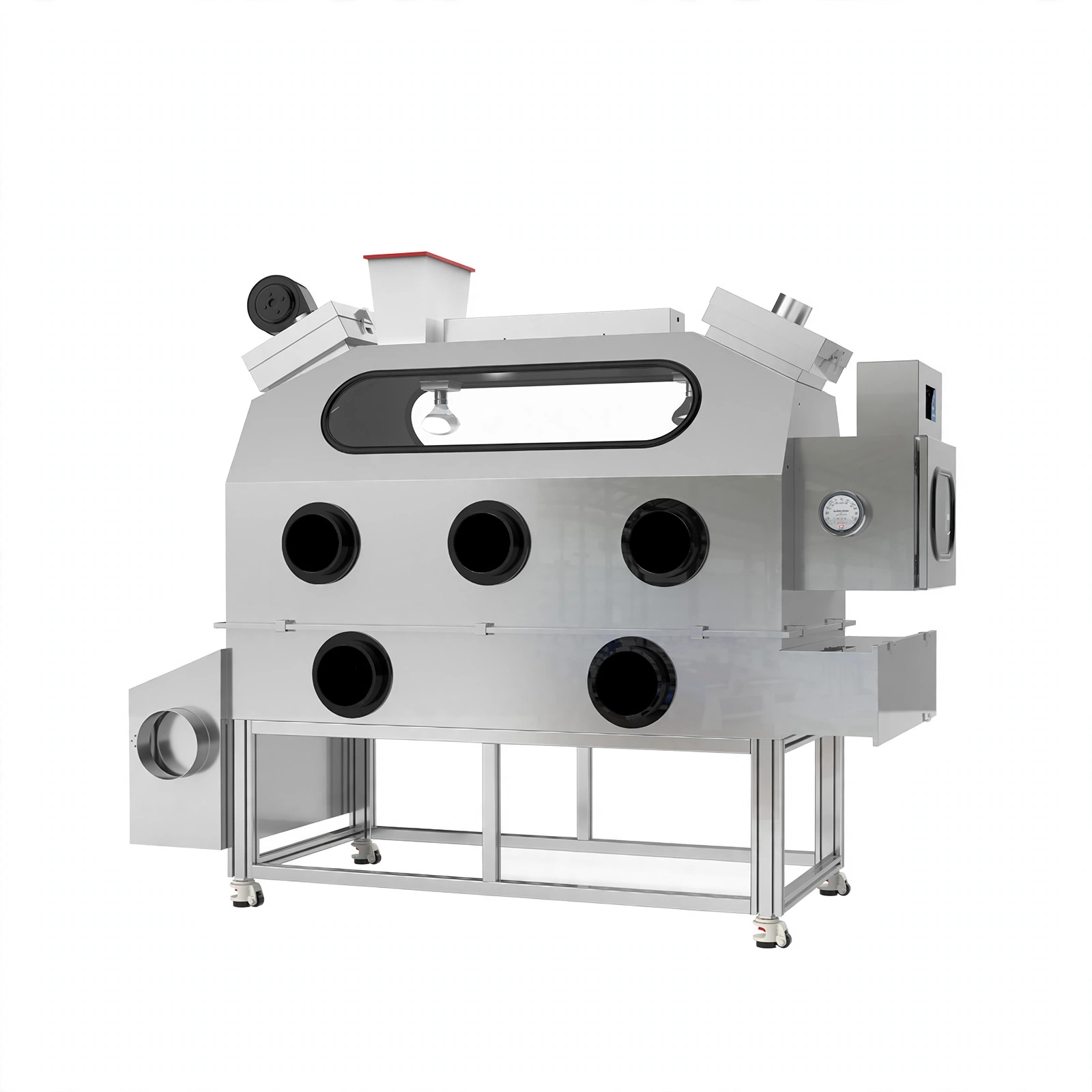

Chicken Isolator

Chicken Isolator

Model BCI-I

Chicken isolator is a positive pressure isolator. BCI-I Chicken Isolator is designed for SPF chicken feeding and poultry disease testing.

Noise
≤70dB
Dimensions
2200*850*1800mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. Automatic water supply system, adjustable height drinking tank.
2. Special sealing design, ensure good sealing performance.

3. Manipulation of the chicken can be realized via gloves from both sides.

4. Adopt full 304 stainless steel material, high quality accessories, such as Butyl gloves, HEPA filter etc.
5. Filtration system, can protect animals, environment and operator.

Pre-filter→ main HEPA filter→Filter cotton.

6.  Three sterilization ways available.

①  UV lamp for sterilization.

②  Reserved hole for hot steam sterilization.

③  Reserved hole for disinfectant spraying sterilization.

7. Unique defecation system & fecal leakage shelf.  Animal wastes drop from shelf to bottom fecal collection film, then pull of collecting film and clean out wastes conveniently and quickly, reduce the cleaning frequency.

8. The inner wall of the glove mouth is equipped with a sliding sealing plate, which can seal the glove mouth when there is no operation.

9. The heating lamp adopts high temperature resistant lamp holder, and has protective cover to prevent chickens from touching, safe and reliable.

Technical Parameters:

Model BCI-I
External Size(W*D*H) 2200*850*1800mm
Animal Activity Area(W*D*H) 1600*750*820mm
Waste Collection Area(W*D*H) 1600*750*250mm
Display LED display: temperature, humidity adjustable(10~50℃), with fluorescent lamp, UV lamp, heating lamp, fan button
Air Change Rate ≥20 times/h
Airflow Velocity 0.1m/s~0.2m/s within the chicken living space
Falling Bacteria(numbers/utensil/hour) 0
Filter Pre-filter, Mid-filter, HEPA(H14) filter
Noise ≤70dB(A)
Alarm High and low temperature alarm
Caster Universal caster with brake and leveling feet
Rated Power supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Rated Consumption 700W
Gross Weight 279kg
Package Size(W*D*H) 2430*1010*2070mm
Standard Accessories Pre-filter*2, HEPA filter*2, Mid-filter*2, UV lamp, heating lamp*2, high quality butyl gloves*6(pairs), feeding and drinking system
The details

Specifications

Model
BCI-I
External Size(W*D*H)
2200*850*1800mm
Animal Activity Area(W*D*H)
1600*750*820mm
Waste Collection Area(W*D*H)
1600*750*250mm
Display
LED display: temperature, humidity adjustable(10~50℃), with fluorescent lamp, UV lamp, heating lamp, fan button
Air Change Rate
≥20 times/h
Airflow Velocity
0.1m/s~0.2m/s within the chicken living space
Falling Bacteria(numbers/utensil/hour)
0
Filter
Pre-filter, Mid-filter, HEPA(H14) filter
Noise
≤70dB(A)
Alarm
High and low temperature alarm
Caster
Universal caster with brake and leveling feet
Rated Power supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Rated Consumption
700W
Gross Weight
279kg
Package Size(W*D*H)
2430*1010*2070mm
Standard Accessories
Pre-filter*2, HEPA filter*2, Mid-filter*2, UV lamp, heating lamp*2, high quality butyl gloves*6(pairs), feeding and drinking system
