Biological Safety Cabinet

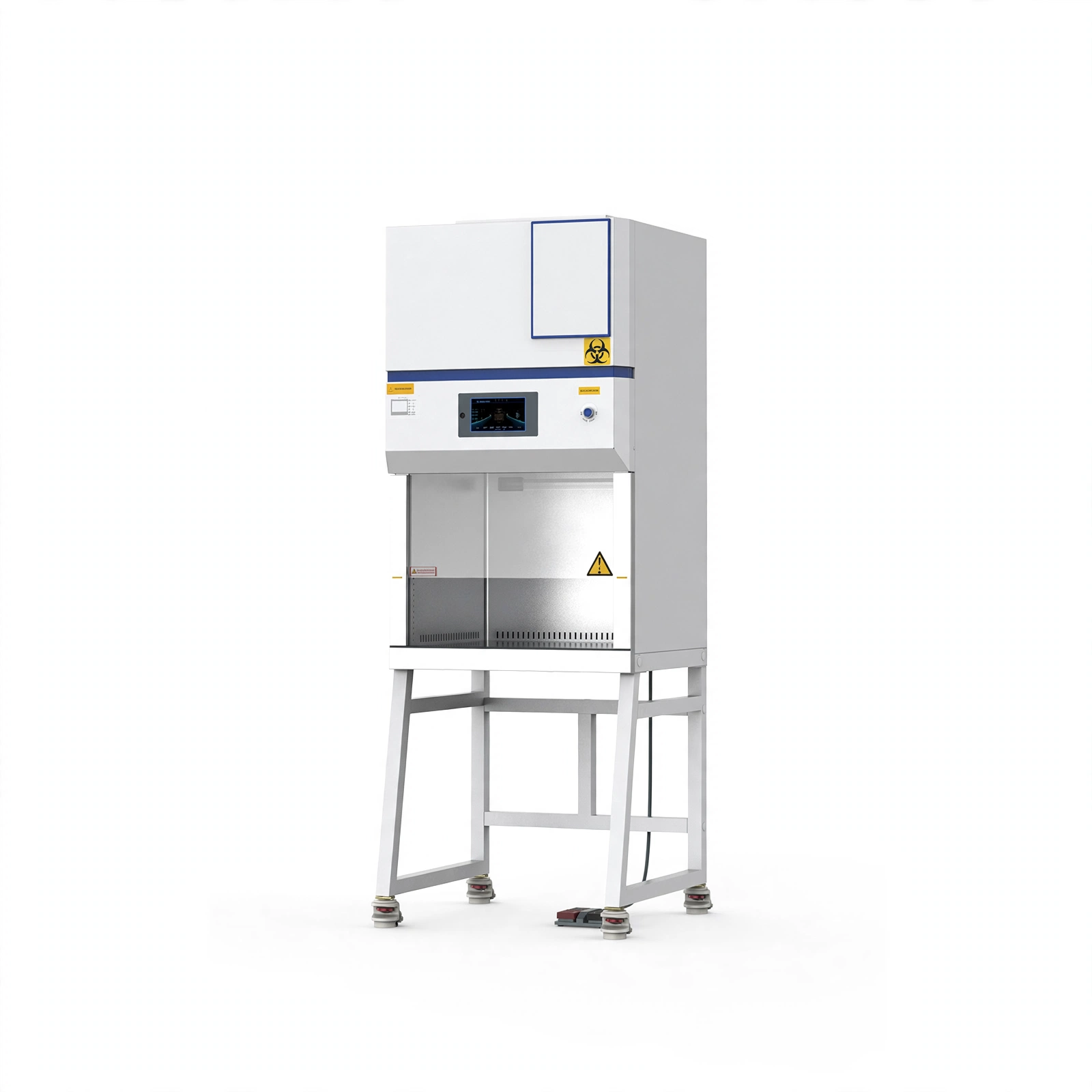

Class II Biological Safety Cabinet 11231 BBC 86-Pro

Model 11231 BBC 86-Pro

Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

Power
500W
Noise
≤67dB
Dimensions
700*640*1920mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

Technical Parameters:

Model 11231 BBC 86-Pro
External Size(W*D*H) 700*640*1920mm
Internal Size(W*D*H) 600*500*530mm
Tested Opening Safety height 200mm(8″)
Max Opening 370mm(15″)
Inflow Velocity 0.53±0.025m/s
Down Flow Velocity 0.33±0.025m/s
ULPA Filter Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window Double-sided laminated glass
Noise ≤67dB
UV Lamp 15W*1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp 8W*2
Illumination ≥1000Lux
Consumption 500W
Socket Two, total load of two sockets: 500W
Display 7 inch large touch screen
Control System Microprocessor
Airflow System 70% air recirculation, 30% air exhaust
Visual and Audio Alarm Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm
Material Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height 750mm with optional base stand
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory LED lamp*2, UV lamp*2, remote control, waterproof sockets*2, Base stand, handle*4, Universal caster with brake and leveling feet，485 data transfer function, supporting data monitoring and export.
Optional Accessory 1. SS Water tap*1, SS Gas tap*1.

2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring.

3. APP networking remote control.

4. LED fluorescent lamp brightness adjustment function.

5. Base bracket with manual or electric height adjustment function.

6. Manual lifting front window function.

7. Manual automatic lifting front window function.

8. EC fan.
Packing Size(Without Base Stand) Carton: 820*760*1425mm

Wood: 850*800*1415mm
Gross Weight(Without Base Stand) Carton: 120kg

Wood: 140kg
Packing Size(With Base Stand) Carton: 880*817*1420mm

Wood: 960*850*1415mm
Gross Weight(With Base Stand) Carton: 140kg

Wood: 160kg
The details

Specifications

Model
11231 BBC 86-Pro
External Size(W*D*H)
700*640*1920mm
Internal Size(W*D*H)
600*500*530mm
Tested Opening
Safety height 200mm(8")
Max Opening
370mm(15")
Inflow Velocity
0.53±0.025m/s
Down Flow Velocity
0.33±0.025m/s
ULPA Filter
Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window
Double-sided laminated glass
Noise
≤67dB
UV Lamp
15W*1UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp
8W*2
Illumination
≥1000Lux
Consumption
500W
Socket
Two, total load of two sockets: 500W
Display
7 inch large touch screen
Control System
Microprocessor
Airflow System
70% air recirculation, 30% air exhaust
Visual and Audio Alarm
Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm
Material
Work Zone: 304 stainless steelMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height
750mm with optional base stand
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
LED lamp*2, UV lamp*2, remote control, waterproof sockets*2, Base stand, handle*4, Universal caster with brake and leveling feet，485 data transfer function, supporting data monitoring and export.
Optional Accessory
1. SS Water tap*1, SS Gas tap*1.2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring.3. APP networking remote control.4. LED fluorescent lamp brightness adjustment function.5. Base bracket with manual or electric height adjustment function.6. Manual lifting front window function.7. Manual automatic lifting front window function.8. EC fan.
Packing Size(Without Base Stand)
Carton: 820*760*1425mmWood: 850*800*1415mm
Gross Weight(Without Base Stand)
Carton: 120kgWood: 140kg
Packing Size(With Base Stand)
Carton: 880*817*1420mmWood: 960*850*1415mm
Gross Weight(With Base Stand)
Carton: 140kgWood: 160kg
