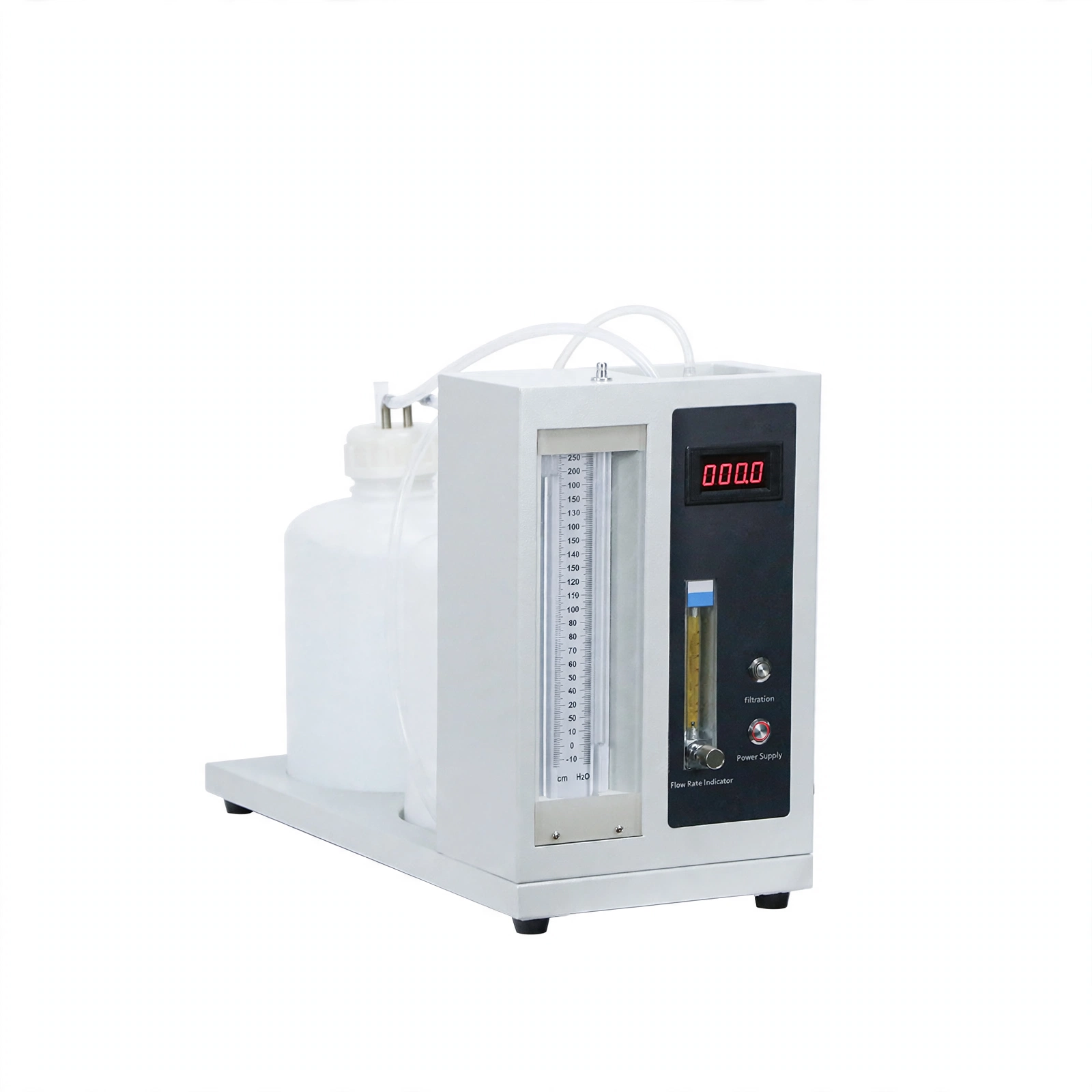

Cold Filter Plugging Point Filter

Model BK-CFPP2 Refrigerated Diesel Petrol

The Cold Filter Plugging Point Filter is a laboratory instrument designed to measure the ability of petroleum products to pass through a filter at low temperatures, thereby assessing their flow characteristics in cold environments. Being equipped with refrigeration bath and other accessories, it can be used to determine cold filter plugging point of distillate fuels.This test is crucial for ensuring the proper function of heating oils, diesel fuels, and other petroleum products during winter or in low-temperature regions.The instrument is designed and made as per the Industry Standard of People’s Republic of China SH/T 0248-2006 Standard Diesel and Domestic Heating Fuels - Determination of Cold Filter Plugging Point.

Power
≤150W
Net weight
15kg
Dimensions
550*250*400mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. It adopts integral structure. Easy to use and good-looking.

2. The buzzer will sound after the completion of suction filtration of the instrument.

3. It adopts digital display technology, easy to set data, stop timing when the timing time arrives.

4. Equipped with BK-LT510, it can realize cold filter point test.

Technical Parameters:

Model BK-CFPP2
Test Cup There is a mark line at 45ml of the cup
Filter Assembly It is made of cooper

Size of hole on the filter sieve is 45μm(330 meshes)
Pumping Pressure 1961Pa(200mm±1mm)
Ambient Temperature 15~35℃
Relative Humidity ≤85%
Extraction Flow 250ml/min(No load)
Consumption ≤150W
Power Supply AC220V±10%, 50Hz
External Size(L*W*H) 550*250*400mm
Packing Size(L*W*H) 705*380*590mm
Net Weight 15kg
Gross Weight 20kg

*Note:  Equipped with BK-LT510, it can realize cold flter pointtest

The details

Specifications

Model
BK-CFPP2
Test Cup
There is a mark line at 45ml of the cup
Filter Assembly
It is made of cooperSize of hole on the filter sieve is 45μm(330 meshes)
Pumping Pressure
1961Pa(200mm±1mm)
Ambient Temperature
15~35℃
Relative Humidity
≤85%
Extraction Flow
250ml/min(No load)
Consumption
≤150W
Power Supply
AC220V±10%, 50Hz
External Size(L*W*H)
550*250*400mm
Packing Size(L*W*H)
705*380*590mm
Net Weight
15kg
Gross Weight
20kg
