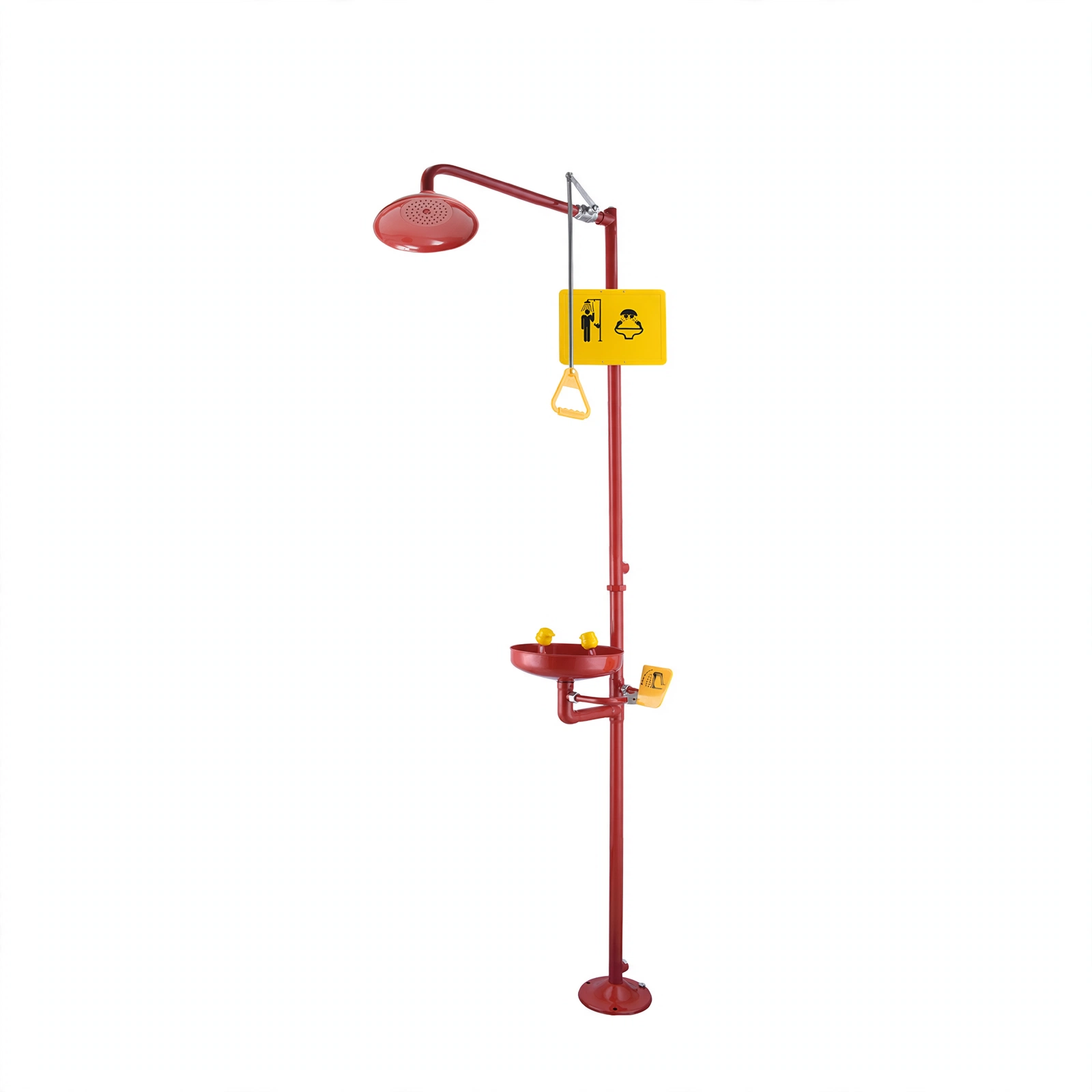

Combination Emergency Shower Eye Washer

Features:

1. Material: stainless steel 304, fine polish/high brightness antioxidant coating.

2. Assembling feature: the “Union” allows easier pipe connection and disconnection.

3. Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously.

4. Shower & eye wash switch: two-piece ball valve.

5. Shower head: spinning-formed with curled rim, diameter 250 mm.

6. Pipe diameter: 38 mm.

7. Nominal pressure: 1.0 Mpa.

8. Working pressure: 0.2~0.4 Mpa.

9. Testing pressure: 1.5 Mpa.

10. Temperature requirement on working environment: 0~40°C.

11. Flow rate of body shower: ≥76 L/min.

12. Flow rate of eye/face wash: ≥11.4 L/min.

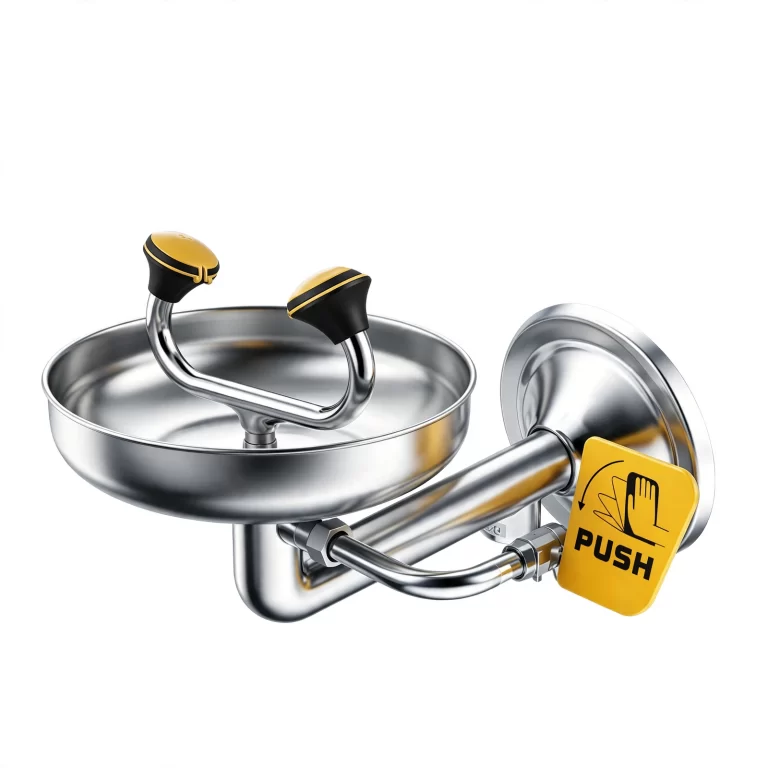

13. Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing.

14. Dust cover: integrated with the spray head(Not connected by chain), and easily removed by water flow.

15. Spray head feature: patented design, each spray head equips with one water-flow control valve.

16. Inlet thread: Rp 1″, female

17. Outlet thread: Rp 1″, female

18. Inlet height(From above the floor): 1160 mm

19. Outlet height(From above the floor): SEW-C1: 86 mm, SEW-C2: 90 mm.

20. Distance between spray heads: 170 mm

21. Water pattern coverage: at the height of 1520 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter.

22. Notes: the inlet part and outlet part are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end.

Stainless steel–made foot treadle is optional as eye wash switch(For SEW-C1).
