Wall Mounted Shower Eye Washer S-WM2 S-CM3 SEW-WM1

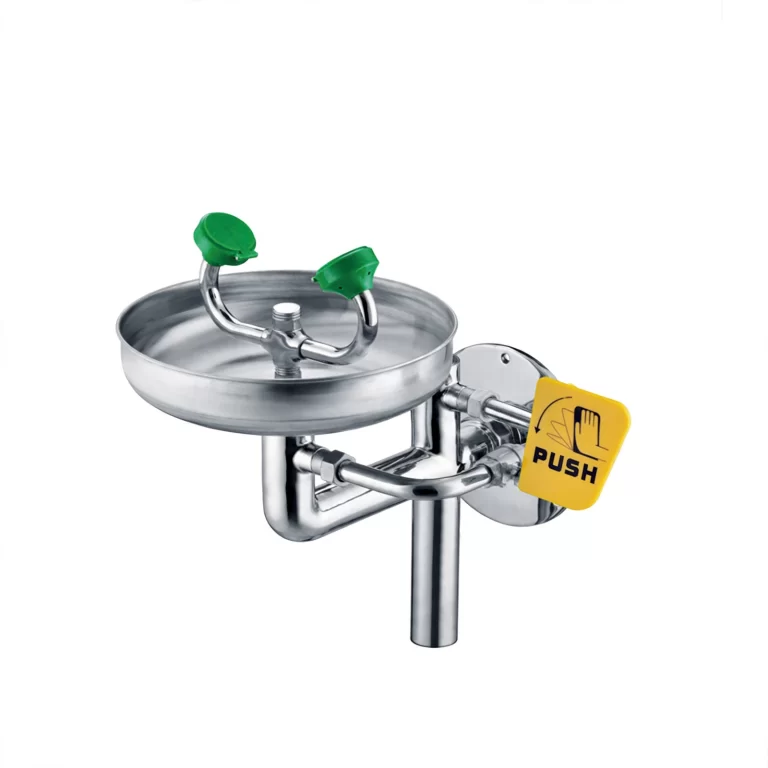

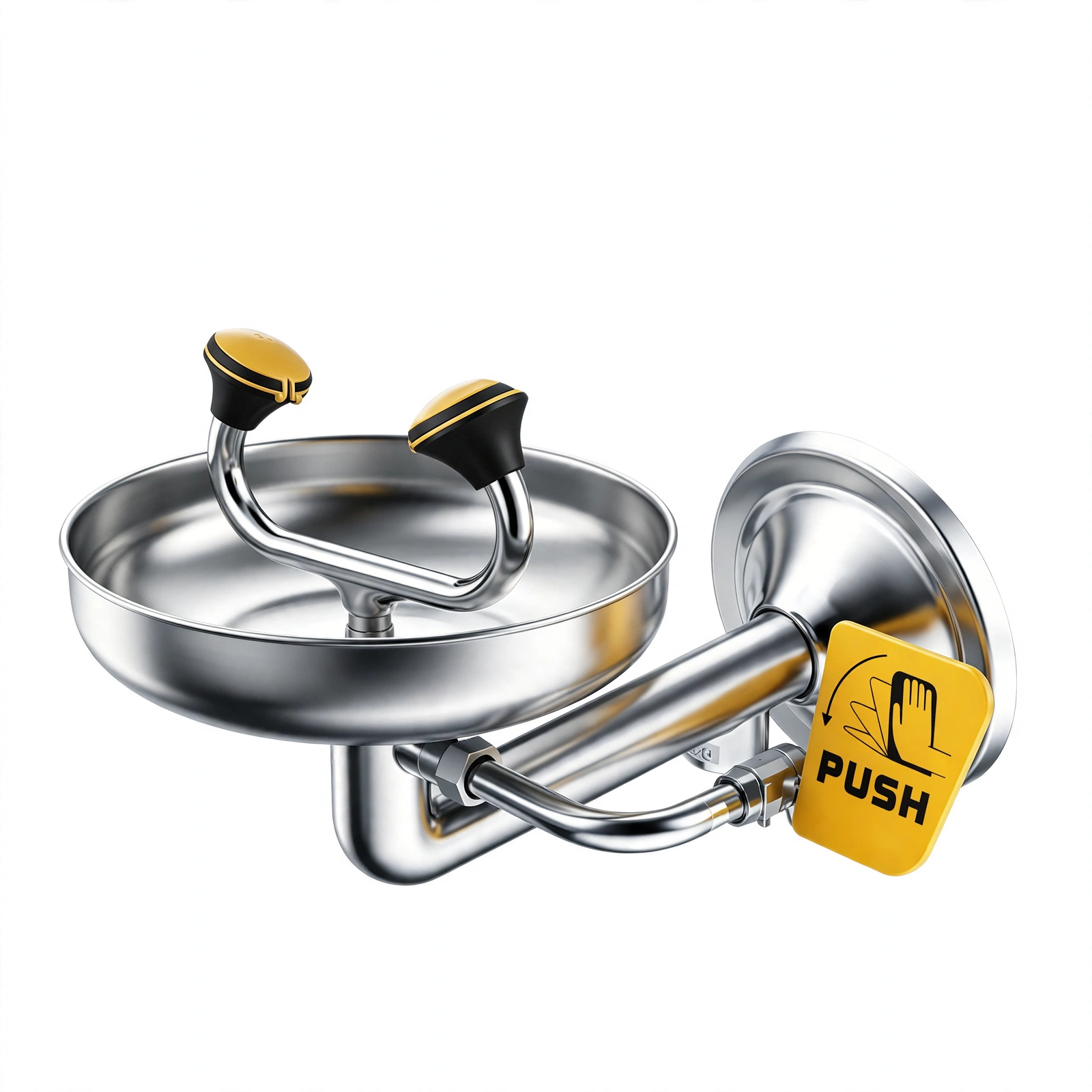

Wall Mounted Eye Washer

1. Material: stainless steel 304

2. Surface finishing: fine-polished

3. Function: wash eyes and face

4. Eye wash switch: two-piece ball valve

5. Nominal pressure: 1.0 Mpa

6. Working pressure: 0.2~0.4 Mpa

7. Testing pressure: 1.5 Mpa

8. Temperature requirement on working environment: 0~40°C

9. Flow rate of eye/face wash: ≥ 11.4 L/min

10. Inlet thread: Rp 1-1/4″, female/RP 1/2″, female

11. Outlet thread: Rp 1-1/4″, female/RP 1″, female

12. Package Size(W*D*H): 345*315*260mm
13. Gross Weight: 5kg

14. Notes: the inlet part and outlet part are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end

Wall Mounted Shower Eye Washer

Features:

1. Material: Stainless steel 304/ABS.

2. Surface Finishing: fine-polished.

3. Function: Eye and face washing&showing.

4. Shower&Eye Wash Switch: Two-piece ball valve.

5. Pipe Diameter: 38/48mm.

6. Inlet Thread: Rp 1″1-¼” , female.

7. Flow Rate of Body Shower: ≥76L/min.

8. Flow Rate of Eye/Face Wash: ≥11.4L/min.

Technical Parameters:
