New Products

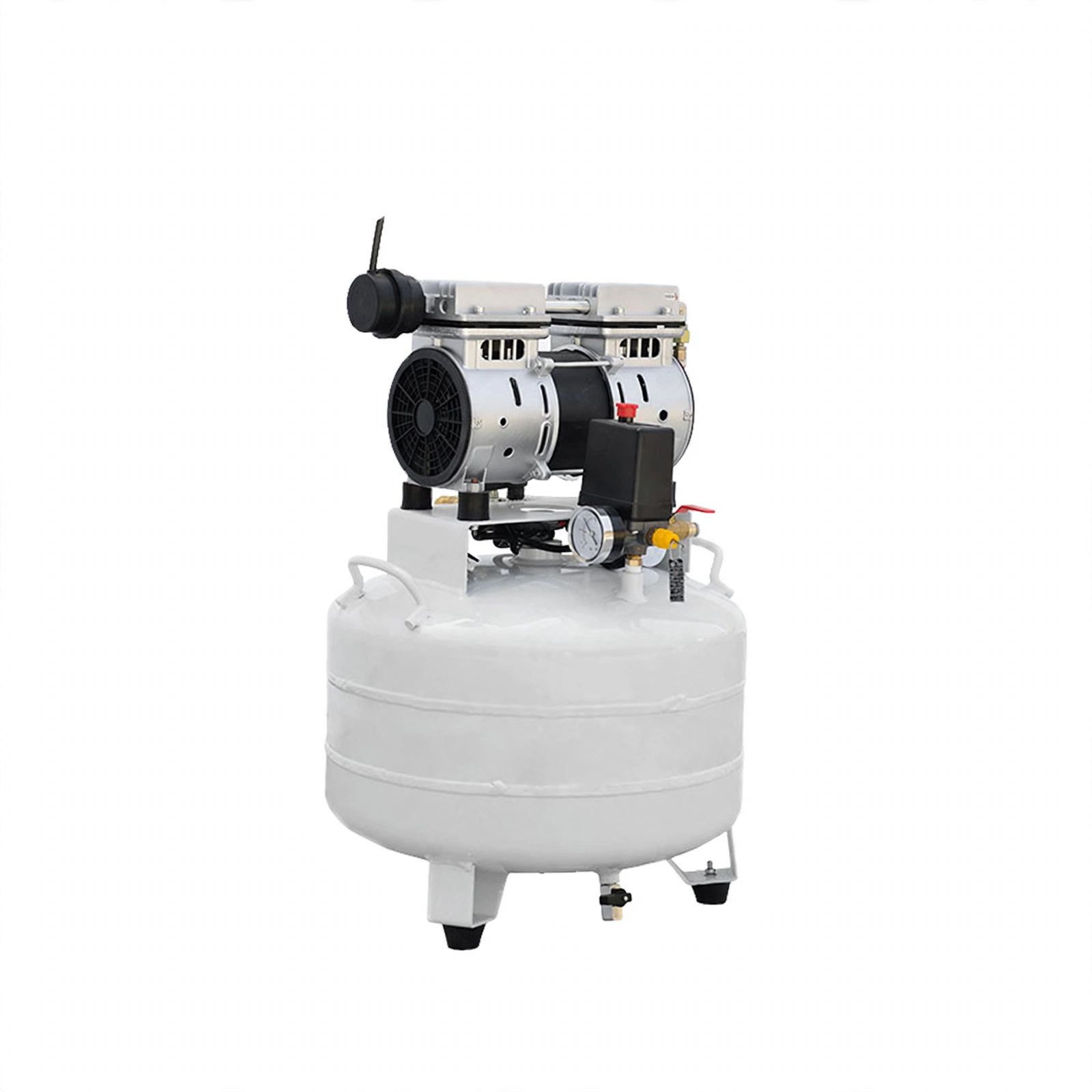

Dental Electric Air Compressor

Model BKX-ZY100 BKX-ZY130 BKX-ZY200 BKX-ZY260 BKX-ZY400 BKX-ZYT600 BKX-ZYT800 BKX-ZYT1000 Electric

As the core device in dental diagnosis and treatment, the dental electric air compressor drives the compressor via an electric motor to generate high-pressure gas. It delivers stable, dry, and oil-free compressed air for dental chairs, ultrasonic scalers, air polishers, and other dental equipment, providing reliable support for routine treatments, surgical procedures, and instrument cleaning/disinfection.

Power
550W / 750W / 550W*2…
Net weight
22 / 25 / 44 / 45
Dimensions
390*390*540 / 400*400…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Premium Imported Components: Adopts imported leather cups and valve plates, ensuring long-term stable operation and reduced maintenance frequency.

2. High-Quality Core Configuration: Features pure copper air outlets for corrosion resistance and airtightness, paired with a high-performance motor for strong power output and low energy consumption.

3. Intelligent Pressure Management: Equipped with precise pressure control technology and automatic start-stop function, maintaining constant pressure and avoiding energy waste.

4. Customizable Expansion Options: Supports configuration upgrades based on customer needs, including soundproof enclosures, high-efficiency air drying systems, and multi-stage air filtration systems.

Technical Parameters:

Model BKX-ZY100 BKX-ZY130 BKX-ZY200 BKX-ZY260
Number of Dental Chairs 1unit 2units 3units 4units
Maximum Air Output 100L/min 150L/min 200L/min 300L/min
Air Tank Capacity 24L 38L 60L 60L
Pressure Adjustment Range

0.55~0.8MPa
Air Outlet

Φ8
Consumption 550W 750W 550W*2 750W*2
Power Supply

AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional)
External Size(W*D*H)mm 390*390*540 400*400*640 750*350*680 750*350*720
Net Weight(kg) 22 25 44 45
Packing Size(W*D*H)mm 440*440*640 450*450*700 780*400*700 780*400*700
Gross Weight(kg) 25.5 29 60 61
Model BKX-ZY400

BKX-ZY600

 BKX-ZY800 BKX-ZY1000
Number of Dental Chairs 5~6units

8~9units

 10~13units 13~15units
Maximum Air Output 400L/min

600L/min

 800L/min 1000L/min
Air Tank Capacity 100L

150L

 200L 200L
Pressure Adjustment Range

0.55~0.8MPa
Air Outlet

Φ10

Φ12
Consumption 1100W*2

1100W*3

 1100W*4 1100W*5
Power Supply

AC380V, 50Hz((Standard);

AC110V/220V/380V, 60Hz(Optional);

AC220V, 50Hz(Optional)
External Size(W*D*H)mm 920*390*810

1225*390*825

 1635*390*825 1635*390*825
Net Weight(kg) 77

109

 139 157
Packing Size(W*D*H)mm 1000*440*850

1320*440*860

 1720*440*860 1720*440*860
Gross Weight(kg) 108

144

 183 200
The details

Specifications

Model
BKX-ZY100 / BKX-ZY130 / BKX-ZY200 / BKX-ZY260
Number of Dental Chairs
1unit / 2units / 3units / 4units
Maximum Air Output
100L/min / 150L/min / 200L/min / 300L/min
Air Tank Capacity
24L / 38L / 60L / 60L
Pressure Adjustment Range
0.55~0.8MPa
Air Outlet
Φ8
Consumption
550W / 750W / 550W*2 / 750W*2
Power Supply
AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional)
External Size(W*D*H)mm
390*390*540 / 400*400*640 / 750*350*680 / 750*350*720
Net Weight(kg)
22 / 25 / 44 / 45
Packing Size(W*D*H)mm
440*440*640 / 450*450*700 / 780*400*700 / 780*400*700
Gross Weight(kg)
25.5 / 29 / 60 / 61
