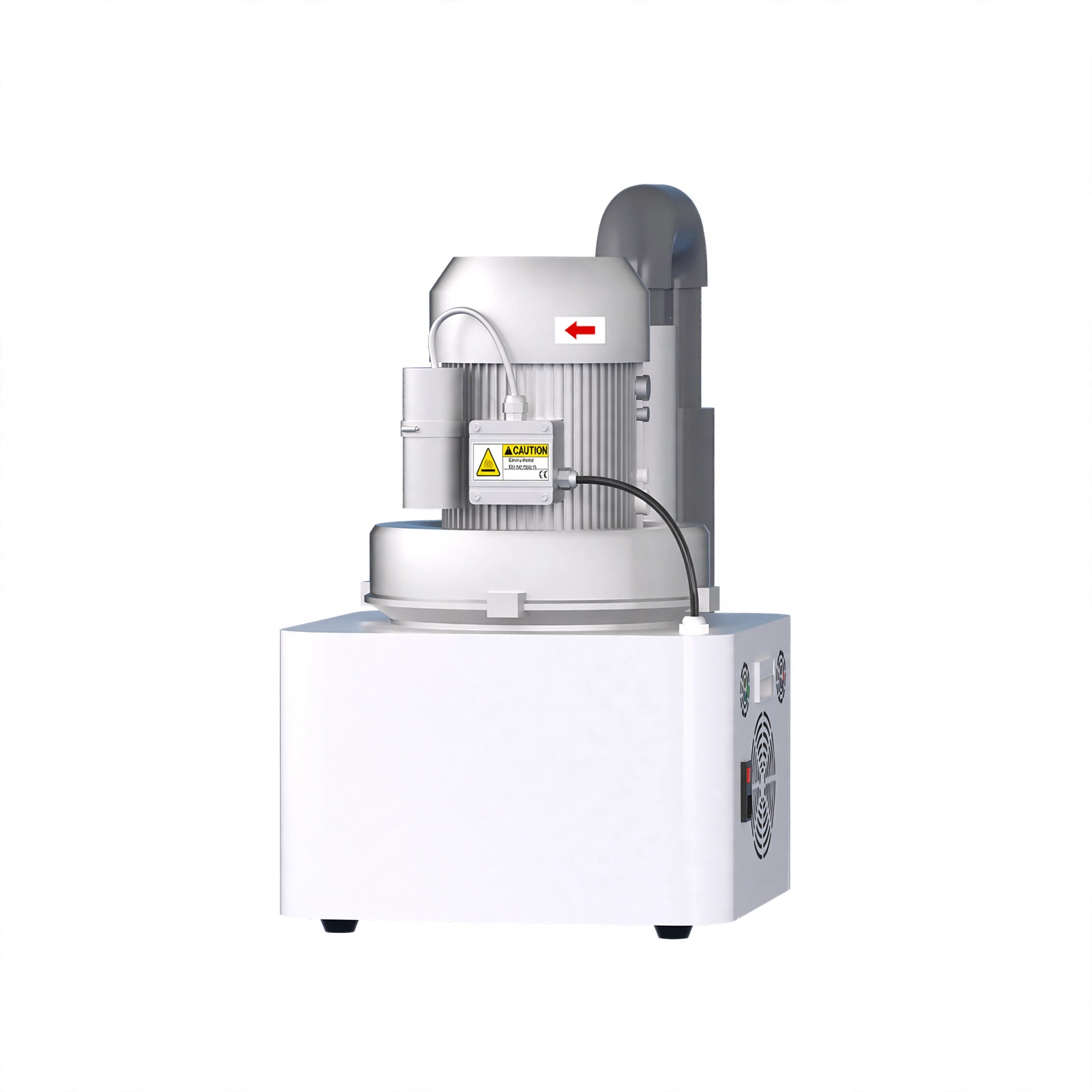

Dental Electric Suction System

Model BKX-FY02 BKX-FY03 BKX-FY05 BKX-FY07 BKX-FY10 Blood & clinical Electric

The dental electric suction system is a specialized device for dental diagnosis and treatment, designed to remove saliva, blood, and treatment debris from the oral cavity. It ensures a clean and clear operating field during dental procedures, enhancing treatment safety and efficiency.

Power
≤1100W / ≤1300W / ≤20…
Noise
≤57dB / ≤60dB / ≤62dB…
Net weight
28 / 30 / 76 / 82 / 86
Dimensions
550*500*670 / 550*500…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Equipped with a pure copper motor, it is reliable and durable.

2. Compact size, powerful suction.

3. Intelligent control for stable operation.

4. Efficient separation, compact structure.

5. Universal compatibility with all dental chair brands.

6. Innovative self-developed separation device (safe&energy-saving).

Technical Parameters:

Model BKX-FY02 BKX-FY03 BKX-FY05 BKX-FY07 BKX-FY10
Number of Dental Chairs Supported 1~3 units 4~6 units 6~8 units 8~10 units 10~15 units
Rated Suction Capacity 780L/min 900L/min 1860L/min 2680L/min 3800L/min
Vacuum Range -12~-17KPa -12~-17KPa -12~-17KPa -12~-20KPa -16~-25KPa
Noise ≤57dB(A) ≤60dB(A) ≤62dB(A) ≤63dB(A) ≤68dB(A)
Power Supply

AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional)

AC380V, 50Hz((Standard);
AC110V/220V/380V, 60Hz(Optional);

AC220V, 50Hz(Optional)
Consumption ≤1100W ≤1300W ≤2000W ≤2900W ≤3500W
External Size(W*D*H)mm 550*500*670 550*500*670 900*600*1100 900*600*1100 900*600*1100
Packing Size(W*D*H)mm 630*630*810 630*630*810 980*680*1240 980*680*1240 980*680*1240
Net Weight(kg) 28 30 76 82 86
Gross Weight (kg) 32 36 96 102 106
The details

Specifications

Model
BKX-FY02 / BKX-FY03 / BKX-FY05 / BKX-FY07 / BKX-FY10
Number of Dental Chairs Supported
1~3 units / 4~6 units / 6~8 units / 8~10 units / 10~15 units
Rated Suction Capacity
780L/min / 900L/min / 1860L/min / 2680L/min / 3800L/min
Vacuum Range
-12~-17KPa / -12~-17KPa / -12~-17KPa / -12~-20KPa / -16~-25KPa
Noise
≤57dB(A) / ≤60dB(A) / ≤62dB(A) / ≤63dB(A) / ≤68dB(A)
Power Supply
AC220V, 50Hz(Standard); AC110V/220V, 60Hz(Optional) / AC380V, 50Hz((Standard);AC110V/220V/380V, 60Hz(Optional);AC220V, 50Hz(Optional) / AC380V, 50Hz((Standard);AC110V/220V/380V, 60Hz(Optional);AC220V, 50Hz(Optional) / AC380V, 50Hz((Standard);AC110V/220V/380V, 60Hz(Optional);AC220V, 50Hz(Optional) / AC380V, 50Hz((Standard);AC110V/220V/380V, 60Hz(Optional);AC220V, 50Hz(Optional)
Consumption
≤1100W / ≤1300W / ≤2000W / ≤2900W / ≤3500W
External Size(W*D*H)mm
550*500*670 / 550*500*670 / 900*600*1100 / 900*600*1100 / 900*600*1100
Packing Size(W*D*H)mm
630*630*810 / 630*630*810 / 980*680*1240 / 980*680*1240 / 980*680*1240
Net Weight(kg)
28 / 30 / 76 / 82 / 86
Gross Weight (kg)
32 / 36 / 96 / 102 / 106
